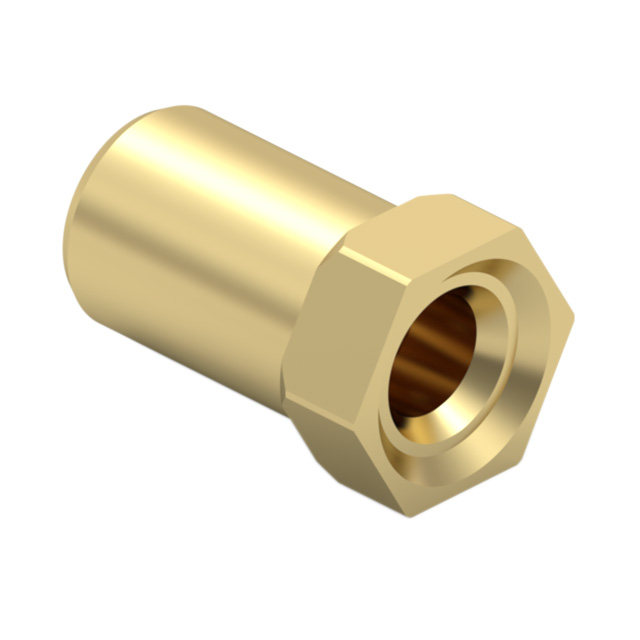

0630-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
ZERO PROFILE RECEPTACLE FOR LEAD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Socket Depth | Socket Depth | Termination | Contact Material | Contact Finish | Tail Type | Length - Overall [x] | Length - Overall [x] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 30 Áin | 0.76 Ám | 0.068 in | 1.73 mm | 0.088 " | 2.24 mm | Press-Fit | Beryllium Copper | Gold | No Tail | 0.1 in | 2.54 mm | 0.64 mm | 0.015 " | 0.025 in | 0.38 mm | 1.75 mm | 0.069 in |
