H3Y-2 A Series

Catalog

RELAY TIME DELAY 5SEC 5A 250V

Part	Function	Voltage - Supply	Delay Time [Max]	Delay Time [Min]	Circuit	Termination Style	Relay Type	Timing Initiate Method	Mounting Type	Contact Rating @ Voltage	Timing Adjustment Method	Voltage - Supply [Min]	Voltage - Supply [Max]

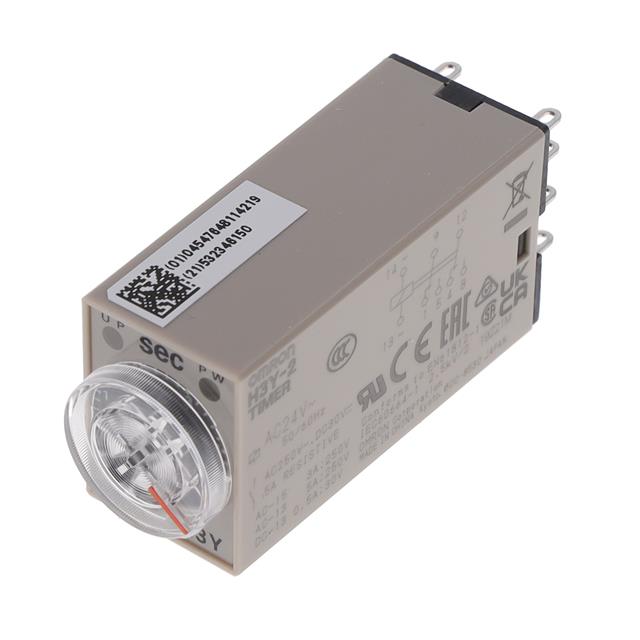

Omron Electronics Inc-EMC Div H3Y-2 AC24 5S	Off-Delay On-Delay	24 VAC	5 Sec	0.2 Sec	DPDT (2 Form C)	Plug In	Mechanical Relay	Input Voltage	Socketable	5 A 250 VAC	Hand Dial

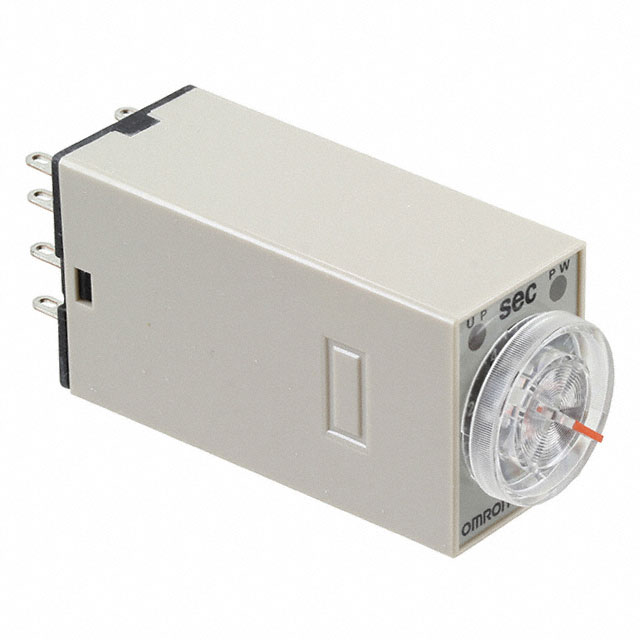

Omron Electronics Inc-EMC Div H3Y-2 AC200-230 10S	Off-Delay On-Delay				DPDT (2 Form C)	Plug In	Mechanical Relay	Input Voltage	Socketable	5 A 250 VAC	Hand Dial	200 VAC	230 VAC
Omron Electronics Inc-EMC Div H3Y-2 AC200-230 1S	Off-Delay On-Delay		1 Sec	0.1 Sec	DPDT (2 Form C)	Plug In	Mechanical Relay	Input Voltage	Socketable	5 A 250 VAC	Hand Dial	200 VAC	230 VAC
Omron Electronics Inc-EMC Div H3Y-2 AC100-120 5M	Off-Delay On-Delay		5 Min	0.2 Min	DPDT (2 Form C)	Plug In	Mechanical Relay	Input Voltage	Socketable	5 A 250 VAC	Hand Dial	100 VAC	120 VAC

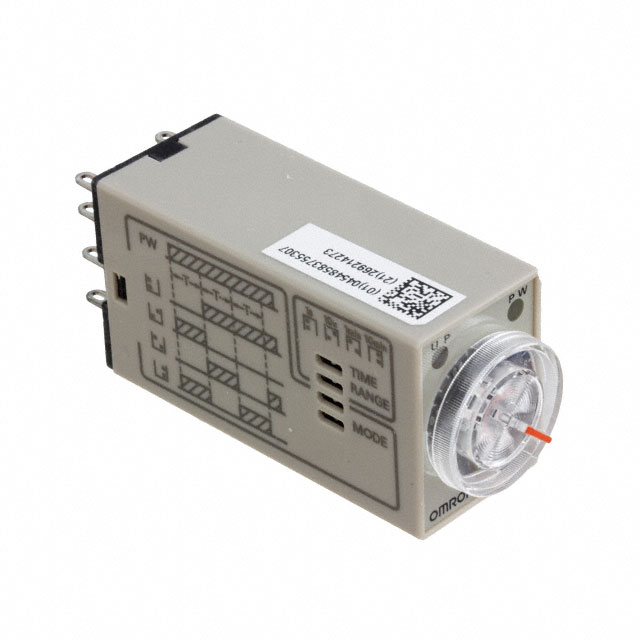

Omron Electronics Inc-EMC Div H3Y-2 AC100-120 10S	Off-Delay On-Delay				DPDT (2 Form C)	Plug In	Mechanical Relay	Input Voltage	Socketable	5 A 250 VAC	Hand Dial	100 VAC	120 VAC
