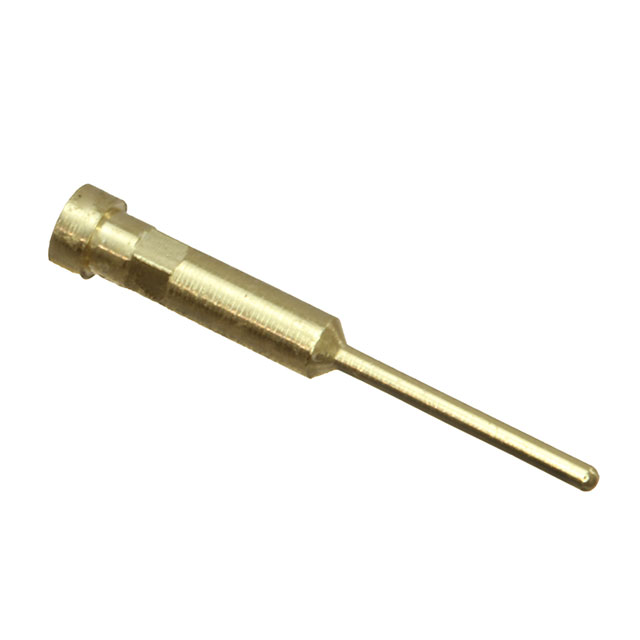

0335-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .025-.037 HEX

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Square Pin Size	Accepts Square Pin Size	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter	Mounting Hole Diameter	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Termination	Socket Depth [z]	Socket Depth [z]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material
Mill-Max Manufacturing Corp. 0335-0-15-15-47-27-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.025 in	0.64 mm	30 Áin	0.76 Ám	13.82 mm	0.544 in	0.064 "	1.63 mm	0.051 in	1.3 mm	Standard Tail	Hex Press-Fit	0.234 in	5.94 mm	Gold	2.03 mm	0.08 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0335-0-15-01-47-27-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.025 in	0.64 mm	30 Áin	0.76 Ám	13.82 mm	0.544 in	0.064 "	1.63 mm	0.051 in	1.3 mm	Standard Tail	Hex Press-Fit	0.234 in	5.94 mm	Gold	2.03 mm	0.08 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0335-0-15-01-47-14-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.025 in	0.64 mm	10 Áin	0.25 Ám	13.82 mm	0.544 in	0.064 "	1.63 mm	0.051 in	1.3 mm	Standard Tail	Hex Press-Fit	0.234 in	5.94 mm	Gold	2.03 mm	0.08 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0335-0-15-80-47-27-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.025 in	0.64 mm	30 Áin	0.76 Ám	13.82 mm	0.544 in	0.064 "	1.63 mm	0.051 in	1.3 mm	Standard Tail	Hex Press-Fit	0.234 in	5.94 mm	Gold	2.03 mm	0.08 in	Beryllium Copper

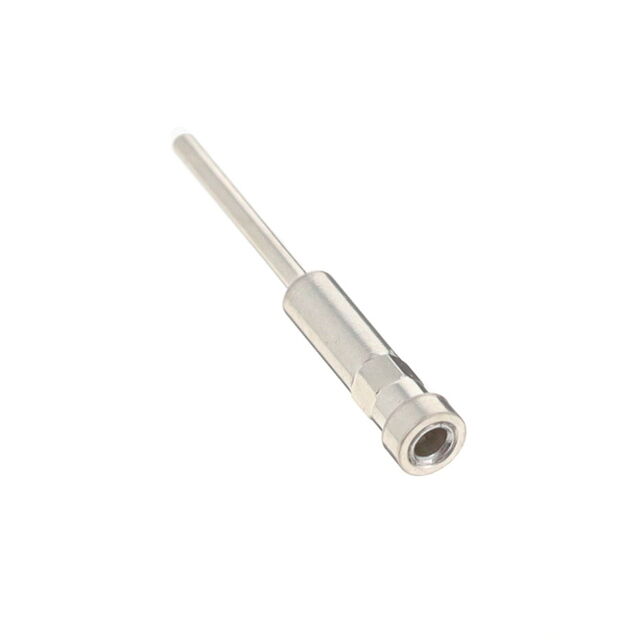

Mill-Max Manufacturing Corp. 0335-0-15-01-47-01-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.025 in	0.64 mm	200 Áin	5.08 Ám	13.82 mm	0.544 in	0.064 "	1.63 mm	0.051 in	1.3 mm	Standard Tail	Hex Press-Fit	0.234 in	5.94 mm	Tin-Lead	2.03 mm	0.08 in	Beryllium Copper
