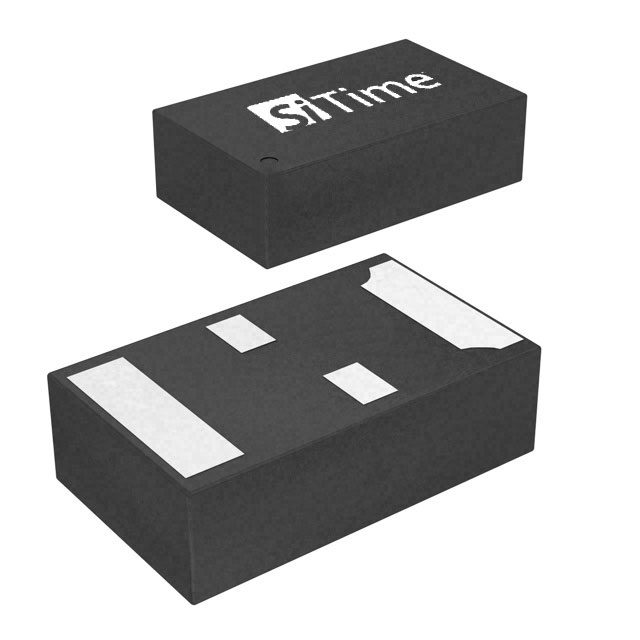

SIT1533 Series
Manufacturer: SiTime
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
MEMS OSC XO 32.7680KHZ NANODRIVE
| Part | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Base Resonator | Frequency | Output | Package / Case | Height - Seated (Max) | Type | Mounting Type | Frequency Stability | Size / Dimension Width | Size / Dimension Length | Current - Supply (Max) | Package Length | Package Name | Package Width | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SiTime | 1.2 V | 3.63 V | MEMS | 0.032768 MHz | NanoDrive™ | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 100 ppm | 0.047 in | 0.079 in | 1.4 µA | 2 mm | 4-SMD | 1.2 mm | -40 °C | 85 °C |
SiTime | 1.5 V | 3.63 V | MEMS | 0.032768 MHz | NanoDrive™ | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 100 ppm | 0.047 in | 0.079 in | 1.4 µA | 2 mm | 4-SMD | 1.2 mm | -40 °C | 85 °C |
SiTime | 1.5 V | 3.63 V | MEMS | 0.032768 MHz | LVCMOS | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 100 ppm | 0.047 in | 0.079 in | 1.4 µA | 2 mm | 4-SMD | 1.2 mm | -40 °C | 85 °C |
SiTime | 1.5 V | 3.63 V | MEMS | 0.032768 MHz | NanoDrive™ | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 100 ppm | 0.047 in | 0.079 in | 1.4 µA | 2 mm | 4-SMD | 1.2 mm | -40 °C | 85 °C |
 SiTime | 1.2 V | 3.63 V | MEMS | 0.032768 MHz | NanoDrive™ | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 75 ppm | 0.047 in | 0.079 in | 1.3 µA | 2 mm | 4-SMD | 1.2 mm | -10 °C | 70 °C |
SiTime | 1.2 V | 3.63 V | MEMS | 0.032768 MHz | LVCMOS | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 75 ppm | 0.047 in | 0.079 in | 1.3 µA | 2 mm | 4-SMD | 1.2 mm | -10 °C | 70 °C |
SiTime | 1.2 V | 3.63 V | MEMS | 0.032768 MHz | NanoDrive™ | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 75 ppm | 0.047 in | 0.079 in | 1.3 µA | 2 mm | 4-SMD | 1.2 mm | -10 °C | 70 °C |
SiTime | 1.2 V | 3.63 V | MEMS | 0.032768 MHz | NanoDrive™ | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 75 ppm | 0.047 in | 0.079 in | 1.3 µA | 2 mm | 4-SMD | 1.2 mm | -10 °C | 70 °C |
SiTime | 1.2 V | 3.63 V | MEMS | 0.032768 MHz | NanoDrive™ | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 75 ppm | 0.047 in | 0.079 in | 1.3 µA | 2 mm | 4-SMD | 1.2 mm | -10 °C | 70 °C |
 SiTime | 1.2 V | 3.63 V | MEMS | 0.032768 MHz | LVCMOS | 4-SMD No Lead | 0.024 in | XO (Standard) | Surface Mount | 100 ppm | 0.047 in | 0.079 in | 1.4 µA | 2 mm | 4-SMD | 1.2 mm | -40 °C | 85 °C |
