093000603 Series
Manufacturer: HARTING
Beta
⌘K

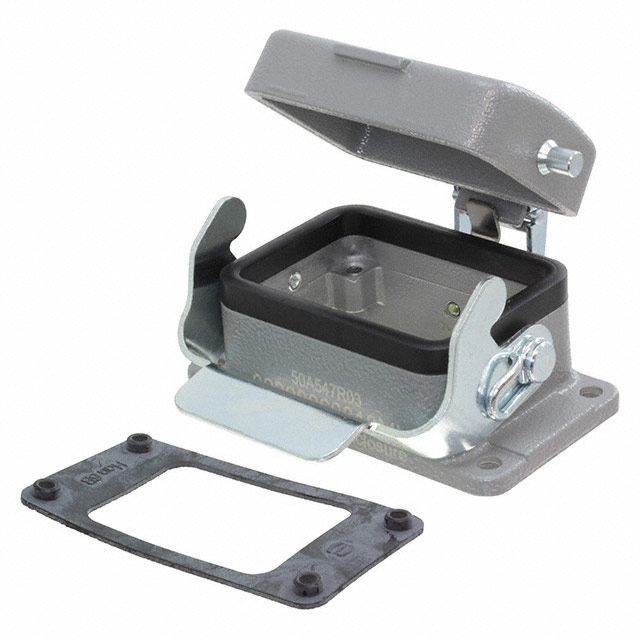

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 6B
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Housing Finish | Connector Type | Housing Color | Ingress Protection | Size | Style | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Lock Location | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 1.138 " | 80 mm | 3.15 " | 28.9 mm | 43.4 mm | 1.709 " | Powder Coated | Base - Panel Mount | Gray | IP65 - Dust Tight Water Resistant | 6B | Bottom Entry | 125 °C | -40 C | Aluminum Die Cast | Locking Clip (1) on Base Bottom | |
 HARTING | 1.138 " | 80 mm | 3.15 " | 28.9 mm | 43.4 mm | 1.709 " | Powder Coated | Base - Panel Mount | Gray | IP65 - Dust Tight Water Resistant | 6B | Bottom Entry | 125 °C | -40 C | Aluminum Die Cast | Locking Clip (1) on Base Bottom | Cover |
 HARTING | 1.138 " | 80 mm | 3.15 " | 28.9 mm | 43.4 mm | 1.709 " | Base - Panel Mount | 6B | Bottom Entry | Locking Clip (1) on Base Bottom |
