1478021 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

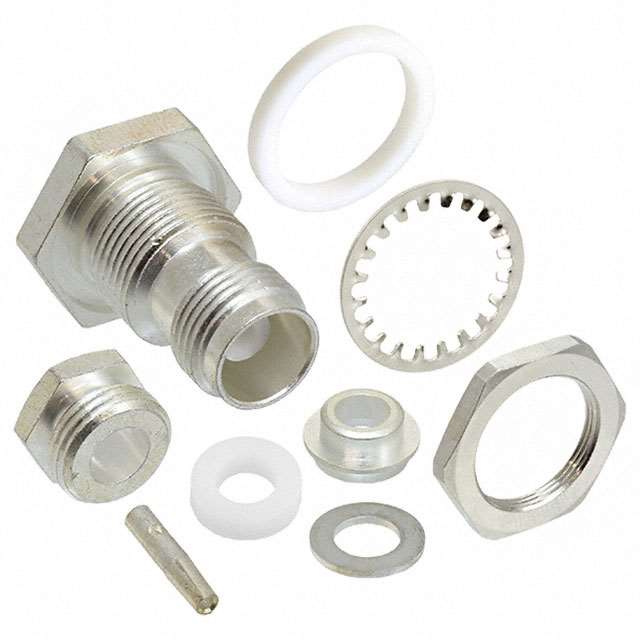

RF TNC CONNECTOR, 1 CONTACT(S), FEMALE, PANEL MOUNT, CABLE AND PANEL MOUNT, SOLDER TERMINAL, LOCKING, JACK
| Part | Insertion Loss | Center Contact Material | Voltage Rating | Includes | Mounting Feature | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Connector Style | Dielectric Material | Shield Termination | Connector Type | Body Finish | Housing Color | Cable Group | Frequency - Max [Max] | Body Material | Mating Cycles | Contact Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.2 dB | Brass | 500 V | 1 Clamp 1 Connector 1 Contact 1 Lockwasher 1 Nut 1 Sleeve 1 Washer 2 Gaskets | Bulkhead - Front Side Nut | Silver | -65 ░C | 165 °C | 50 Ohms | TNC | Polytetrafluoroethylene (PTFE) | Clamp | Female Socket Jack | Silver | Silver | 141A RG-58C | 11 GHz | Brass | 500 | Solder | 1 |
