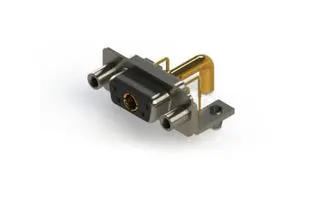

630-5W1 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB MIXED CONTACT CONNECTORS RIGHT-ANGLE POWER COMBO D-SUB CONNECTOR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Type | Number of Positions | Current Rating (Amps) | Mounting Type | Backset Spacing | Backset Spacing | Number of Rows [custom] | Connector Type | Flange Feature | Shell Material, Finish | Material Flammability Rating | Contact Finish Thickness | Connector Style | Contact Finish | Termination | Features | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | 5 A 30 A | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | Housing/Shell (M3) | Nickel Plated Steel | UL94 V-0 | Flash | Combo D-Sub | Gold | Solder | Mounting Brackets | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | Housing/Shell | Nickel Plated Steel | UL94 V-0 | Combo D-Sub | Gold | Solder | Mounting Brackets | 20A 5A | 30 Áin | 0.76 Ám | 4-40 | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | Housing/Shell (M3) | UL94 V-0 | Flash | Combo D-Sub | Gold | Solder | Board Lock Mounting Brackets | 10A 5A | |||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | 4-40 | UL94 V-0 | Combo D-Sub | Gold | Solder | Board Lock Mounting Brackets | 20A 5A | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | M3 | Nickel Plated Steel | UL94 V-0 | Combo D-Sub | Gold | Solder | Mounting Brackets | 20A 5A | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | 5 A 30 A | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | UL94 V-0 | Flash | Combo D-Sub | Gold | Solder | Shielded | |||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Coax Signal | 5 | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | Housing/Shell | UL94 V-0 | Combo D-Sub | Gold | Solder | Board Lock Mounting Brackets | 30 Áin | 0.76 Ám | 4-40 | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | 5 A 30 A | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | Housing/Shell | UL94 V-0 | Combo D-Sub | Gold | Solder | Mounting Brackets | 30 Áin | 0.76 Ám | 4-40 | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | 5 A 40 A | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | M3 | UL94 V-0 | Combo D-Sub | Gold | Solder | Board Lock Mounting Brackets | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 | 5W1 DE E | Signal and Power | 5 | Right Angle Through Hole | 9.4 mm | 0.37 in | 2 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Nickel Plated Steel | UL94 V-0 | Combo D-Sub | Gold | Solder | Shielded | 20A 5A | 30 Áin | 0.76 Ám |
