845-009 Series
Manufacturer: EDAC Inc.
Catalog
845 HIGH TEMP' SERIES (.100" (2.
...
| Part | Flange Feature | Card Type | Contact Type | Contact Material | Material - Insulation | Color | Gender | Pitch [x] | Pitch [x] | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Read Out | Contact Finish | Termination Rows | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

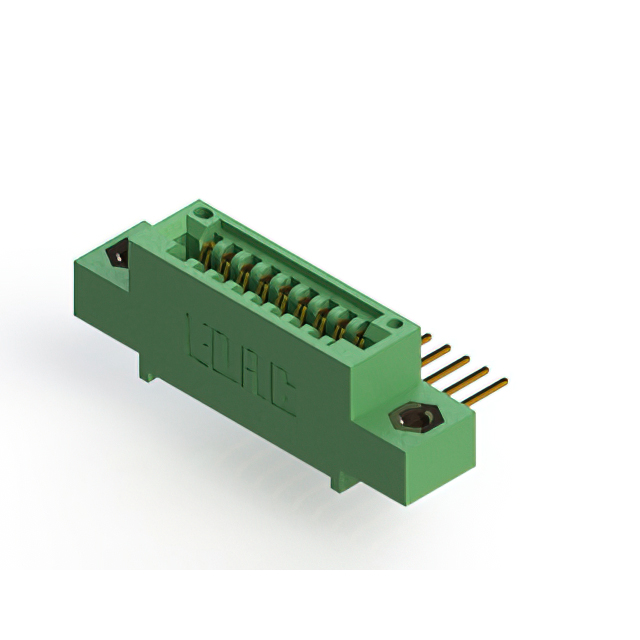

 EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Single | Gold | 1 | Through Hole | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | ||||
 EDAC Inc. | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Single | Gold | 1 | Through Hole | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | Gold | 1 | Through Hole Right Angle | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Top Mount Opening Unthreaded | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Single | Gold | 1 | Through Hole | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | 0.156 in | 3.96 mm | ||
 EDAC Inc. | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Single | Gold | 1 | Through Hole | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | 0.116 in | 2.95 mm | ||
 EDAC Inc. | Floating Bobbin Flush Mount | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Single | Gold | 1 | Through Hole | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | 0.116 in | 2.95 mm | ||
 EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | Gold | 1 | Through Hole | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | ||||
 EDAC Inc. | Floating Bobbin Flush Mount | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | Gold | 1 | Through Hole | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | 0.116 in | 2.95 mm | ||
 EDAC Inc. | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | Gold | 1 | Through Hole Right Angle | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | 0.156 in | 3.96 mm | ||
 EDAC Inc. | Floating Bobbin Flush Mount | Non Specified - Single Edge | Cantilever | Copper Alloy | Diallyl Phthalate (DAP) | Green | Female | 2.54 mm | 0.1 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Single | Gold | 1 | Through Hole | 10 Áin | 0.25 Ám | 1 | 9 | 125 °C | -40 °C | 0.116 in | 2.95 mm |
