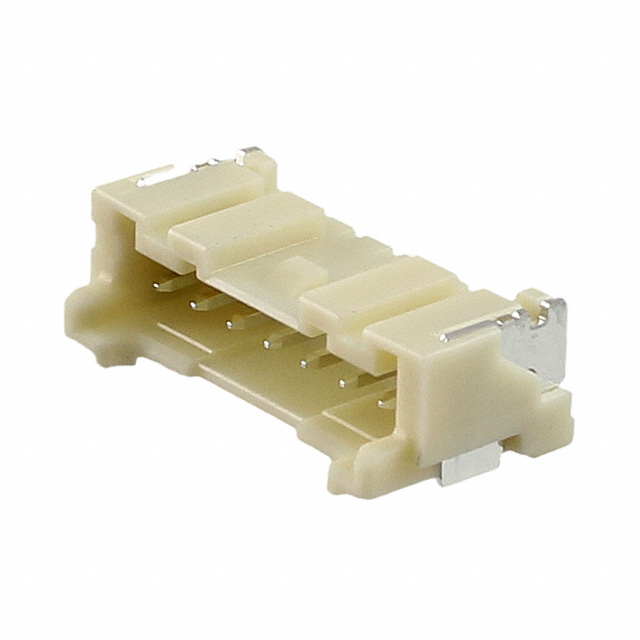

SM07B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 7POS 2MM
| Part | Contact Material | Insulation Material | Number of Rows | Number of Positions Loaded | Features | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Contact Type | Insulation Height [z] | Insulation Height [z] | Contact Shape | Contact Finish - Post | Termination | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Voltage Rating | Connector Type | Style | Shrouding | Pitch - Mating | Pitch - Mating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Copper Alloy | Nylon Polyamide (PA) | 1 | All | Pick and Place Solder Retention | 3 A | UL94 V-0 | Right Angle Surface Mount | Male Pin | 5.69 mm | 0.224 in | Square | Tin | Solder | Locking Ramp | 85 °C | -25 °C | 7 | 250 V | Header | Board to Cable/Wire | Shrouded - 4 Wall | 0.079 " | 2 mm | Natural |
