TMP75C-Q1 Series

Automotive Temp Sensor with I2C/SMBus Interface in Industry Standard LM75 Form Factor & Pinout

Catalog

Automotive Temp Sensor with I2C/SMBus Interface in Industry Standard LM75 Form Factor & Pinout

Part	Test Condition [Min]	Test Condition [Max]	Test Condition [Max]	Test Condition [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Mounting Type	Accuracy - Highest (Lowest)	Accuracy - Highest (Lowest)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Resolution	Sensor Type	Output Type	Supplier Device Package	Grade	Accuracy - Highest (Lowest)	Qualification	Package / Case [custom]	Package / Case	Supplied Contents	Sensitivity	Interface	Utilized IC / Part
Texas Instruments TMP75AID	-25 °C	85 °C	125 °C	-40 °C	2.7 V	5.5 V	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	Surface Mount	2 °C	3 °C	One-Shot Output Switch Programmable Resolution Shutdown Mode Standby Mode	127 °C	-55 °C	11 b	Digital Local	I2C/SMBus	8-SOIC
Texas Instruments TMP75AIDG4	-25 °C	85 °C	125 °C	-40 °C	2.7 V	5.5 V	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	Surface Mount	2 °C	3 °C	One-Shot Output Switch Programmable Resolution Shutdown Mode Standby Mode	127 °C	-55 °C	11 b	Digital Local	I2C/SMBus	8-SOIC
Texas Instruments TMP75CQDGKRQ1	0 °C	70 °C	125 °C	-40 °C	1.4 V	3.6 V	8-MSOP 8-TSSOP			125 °C	-40 °C	Surface Mount			One-Shot Shutdown Mode	125 °C	-40 °C	12 b	Digital Local	SMBus		Automotive	0.25 °C 1 °C	AEC-Q100	0.118 in	3 mm
Texas Instruments TMP75BQDQ1	-25 °C	85 °C	125 °C	-40 °C	1.4 V	3.6 V	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	Surface Mount	2 °C	3 °C	One-Shot Output Switch Programmable Limit Shutdown Mode	125 °C	-40 °C	11 b	Digital Local	SMBus	8-SOIC	Automotive		AEC-Q100
Texas Instruments TMP75BIDGKR	-20 °C	85 °C	125 °C	-55 °C	1.4 V	3.6 V	8-MSOP 8-TSSOP			125 °C	-55 ¯C	Surface Mount	2 °C	3 °C	One-Shot Output Switch Programmable Limit Shutdown Mode	125 °C	-55 °C	11 b	Digital Local	SMBus					0.118 in	3 mm

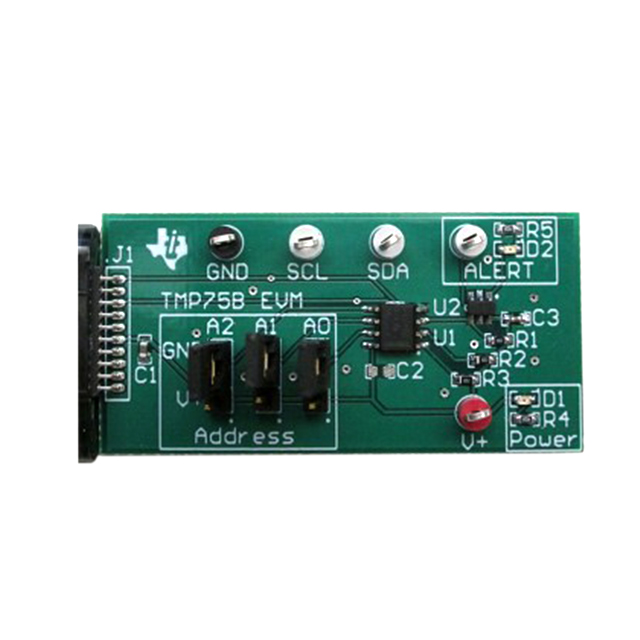

Texas Instruments TMP75CEVM					1.4 V	3.6 V													Temperature								Board(s)	1 °C	I2C SMBus	TMP75C
Texas Instruments TMP75CIDGKR	0 °C	70 °C	125 °C	-55 °C	1.4 V	3.6 V	8-MSOP 8-TSSOP			125 °C	-55 ¯C	Surface Mount			One-Shot Output Switch Programmable Limit Shutdown Mode	125 °C	-55 °C	11 b	Digital Local	SMBus			1 °C 3 °C		0.118 in	3 mm
Texas Instruments TMP75BQDGKTQ1	-20 °C	85 °C	125 °C	-40 °C	1.4 V	3.6 V	8-MSOP 8-TSSOP			125 °C	-40 °C	Surface Mount	2 °C	3 °C	One-Shot Output Switch Programmable Limit Shutdown Mode	125 °C	-40 °C	11 b	Digital Local	SMBus		Automotive		AEC-Q100	0.118 in	3 mm
Texas Instruments TMP75AQDRQ1	-40 °C	125 °C			2.7 V	5.5 V	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	Surface Mount				125 °C	-40 °C	12 b	Digital Local	I2C/SMBus	8-SOIC	Automotive	1 °C 3 °C	AEC-Q100
Texas Instruments TMP75BQDGKRQ1	-20 °C	85 °C	125 °C	-40 °C	1.4 V	3.6 V	8-MSOP 8-TSSOP			125 °C	-40 °C	Surface Mount	2 °C	3 °C	One-Shot Output Switch Programmable Limit Shutdown Mode	125 °C	-40 °C	11 b	Digital Local	SMBus		Automotive		AEC-Q100	0.118 in	3 mm

Catalog

Automotive Temp Sensor with I2C/SMBus Interface in Industry Standard LM75 Form Factor & Pinout

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C5Low-Voltage Alternative to NCT75 and ADT75Digital Output with Two-Wire Serial InterfaceUp to 8 Pin-Programmable Bus AddressesOvertemperature ALERT Pin with Programmable Trip ValuesShutdown Mode for Battery Power SavingOne-Shot Conversion ModeOperating Temperature Range: –40°C to +125°COperating Supply Range: 1.4 V to 3.6 VQuiescent Current:15 µA Active (typ), 0.3 µA Shutdown (typ)Accuracy:±0.25°C (typ) from 0°C to +70°C±0.5°C (typ) from –20°C to +85°C±1°C (typ) from –40°C to +125°CResolution: 12 Bits (0.0625°C)Packages: SOIC-8 and VSSOP-8Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C5Low-Voltage Alternative to NCT75 and ADT75Digital Output with Two-Wire Serial InterfaceUp to 8 Pin-Programmable Bus AddressesOvertemperature ALERT Pin with Programmable Trip ValuesShutdown Mode for Battery Power SavingOne-Shot Conversion ModeOperating Temperature Range: –40°C to +125°COperating Supply Range: 1.4 V to 3.6 VQuiescent Current:15 µA Active (typ), 0.3 µA Shutdown (typ)Accuracy:±0.25°C (typ) from 0°C to +70°C±0.5°C (typ) from –20°C to +85°C±1°C (typ) from –40°C to +125°CResolution: 12 Bits (0.0625°C)Packages: SOIC-8 and VSSOP-8

Description

The TMP75-Q1 and TMP175-Q1 devices are digital temperature sensors ideal for negative temperature coefficient (NTC) and positive temperature coefficient (PTC) thermistor replacement. The devices offer a typical accuracy of ±1°C without requiring calibration or external component signal conditioning. Device temperature sensors are highly linear and do not require complex calculations or look-up tables to derive the temperature. The on-chip, 12-bit, analog-to-digital converter (ADC) offers resolutions down to 0.0625°C. The devices are available in the industry-standard, LM75, 8-pin SOIC and VSSOP footprint. The TMP175-Q1 and TMP75-Q1 feature SMBus, two-wire, and I2C interface compatibility. The TMP175-Q1 device allows up to 27 devices on one bus. The TMP75-Q1 allows up to eight devices on one bus. The TMP175-Q1 and TMP75-Q1 both feature an SMBus alert function. The TMP175-Q1 and TMP75-Q1 devices are ideal for extended temperature measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications. The TMP75-Q1 production units are 100% tested against sensors that are NIST-traceable and are verified with equipment that are NIST-traceable through ISO/IEC 17025 accredited calibrations. The TMP175-Q1 and TMP75-Q1 devices are specified for operation over the temperature range of –40°C to +125°C. The TMP75-Q1 and TMP175-Q1 devices are digital temperature sensors ideal for negative temperature coefficient (NTC) and positive temperature coefficient (PTC) thermistor replacement. The devices offer a typical accuracy of ±1°C without requiring calibration or external component signal conditioning. Device temperature sensors are highly linear and do not require complex calculations or look-up tables to derive the temperature. The on-chip, 12-bit, analog-to-digital converter (ADC) offers resolutions down to 0.0625°C. The devices are available in the industry-standard, LM75, 8-pin SOIC and VSSOP footprint. The TMP175-Q1 and TMP75-Q1 feature SMBus, two-wire, and I2C interface compatibility. The TMP175-Q1 device allows up to 27 devices on one bus. The TMP75-Q1 allows up to eight devices on one bus. The TMP175-Q1 and TMP75-Q1 both feature an SMBus alert function. The TMP175-Q1 and TMP75-Q1 devices are ideal for extended temperature measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications. The TMP75-Q1 production units are 100% tested against sensors that are NIST-traceable and are verified with equipment that are NIST-traceable through ISO/IEC 17025 accredited calibrations. The TMP175-Q1 and TMP75-Q1 devices are specified for operation over the temperature range of –40°C to +125°C.
