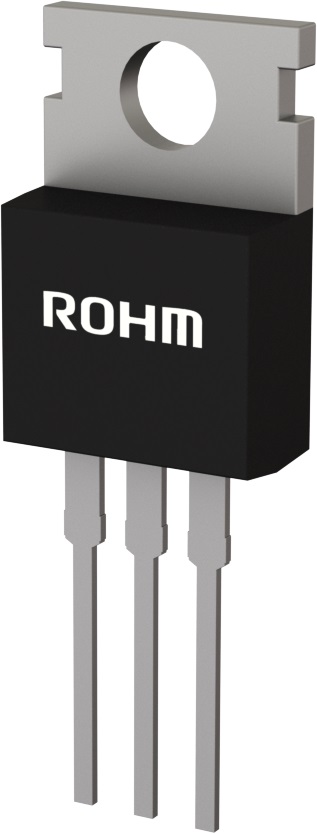

R6038YNX3 Series

600V 38A TO-220AB, High-speed switching Power MOSFET

Catalog

600V 38A TO-220AB, High-speed switching Power MOSFET

Part	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	FET Type	Package / Case	Power Dissipation (Max)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Technology	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature	Gate Charge (Qg) (Max) @ Vgs [Max]
Rohm Semiconductor R6038YNX3C16	2350 pF	30 V	N-Channel	TO-220-3	348 W	Through Hole	38 A	96 mOhm	600 V	MOSFET (Metal Oxide)	TO-220AB	10 V 12 V	150 °C	50 nC

600V 38A TO-220AB, High-speed switching Power MOSFET

• Low on-resistance, Fast switching, Drive circuits can be simple, Pb-free plating; RoHS compliant, Halogen free mold compound

R6038YNX3 is a power MOSFET with low on-resistance and fast switching, suitable for the switching application.
