HDSP-09 Series

Catalog

DISP 7SEG 0.29" OV/FL GRN 8DIP

Part	Wavelength - Peak	Power Dissipation (Max) [Max]	Current - Test	Millicandela Rating [Max]	Millicandela Rating [Min]	Digit/Alpha Size	Digit/Alpha Size	Color	Common Pin	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Display Type	Voltage - Forward (Vf) (Typ)	Number of Characters	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Millicandela Rating

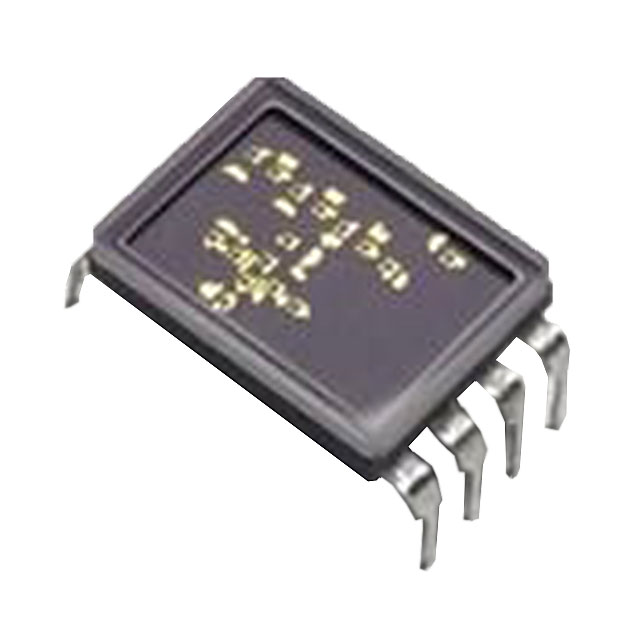

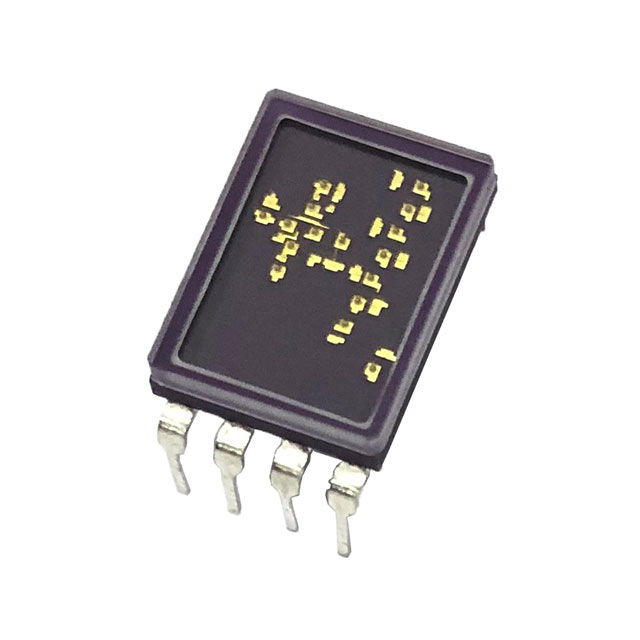

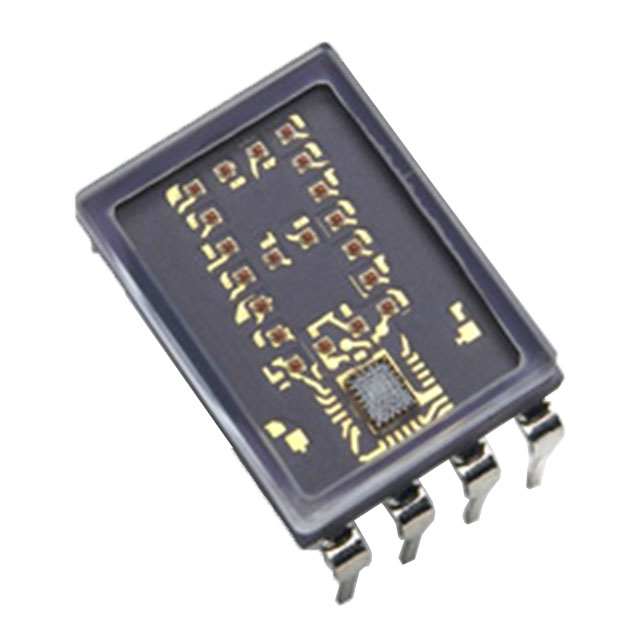

Broadcom Limited HDSP-0963	568 nm	282 mW	8 mA	2.63 mcd	0.3 mcd	7.37 mm	0.29 in	Green	Common Anode	4.3 mm	0.402 in	10.2 mm	0.169 in	0.531 in	13.5 mm	7-Segment	1.85 V	+/-1 (overflow)	8-DIP	15.2 mm	0.6 in
Broadcom Limited HDSP-0983	568 nm	282 mW	8 mA	2.63 mcd	0.3 mcd	7.37 mm	0.29 in	Green	Common Anode	4.3 mm	0.402 in	10.2 mm	0.169 in	0.531 in	13.5 mm	7-Segment	1.85 V	+/-1 (overflow)	8-DIP	15.2 mm	0.6 in
Broadcom Limited HDSP-0981	568 nm	963 mW	10 mA	2.63 mcd	0.3 mcd	7.37 mm	0.29 in	Green	Common Anode	4.3 mm	0.402 in	10.2 mm	0.169 in	0.531 in	13.5 mm	7-Segment			8-DIP	15.2 mm	0.6 in	1
Broadcom Limited HDSP-0984	568 nm	963 mW	10 mA	2.63 mcd	0.3 mcd	7.37 mm	0.29 in	Green	Common Anode	4.3 mm	0.402 in	10.2 mm	0.169 in	0.531 in	13.5 mm	7-Segment Hexadecimal			8-DIP	15.2 mm	0.6 in	1

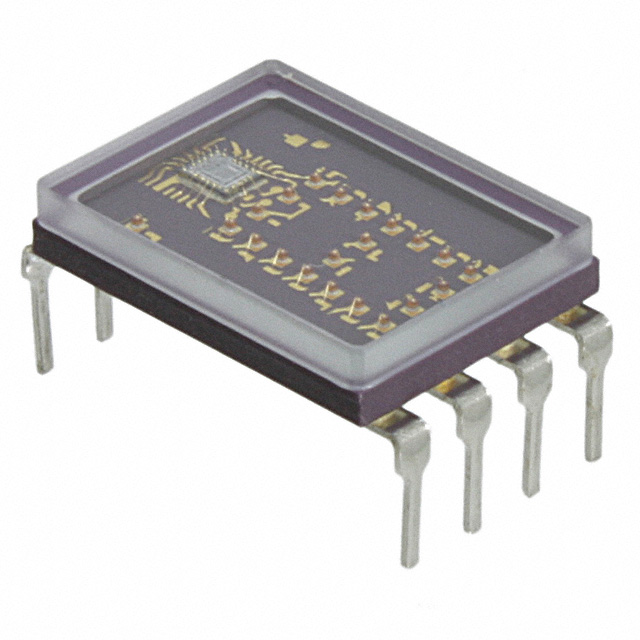

Broadcom Limited HDSP-0960	568 nm	963 mW	10 mA			7.37 mm	0.29 in	Green	Common Anode	4.3 mm	0.402 in	10.2 mm	0.169 in	0.531 in	13.5 mm	7-Segment			8-DIP	15.2 mm	0.6 in	1	1.1 mcd

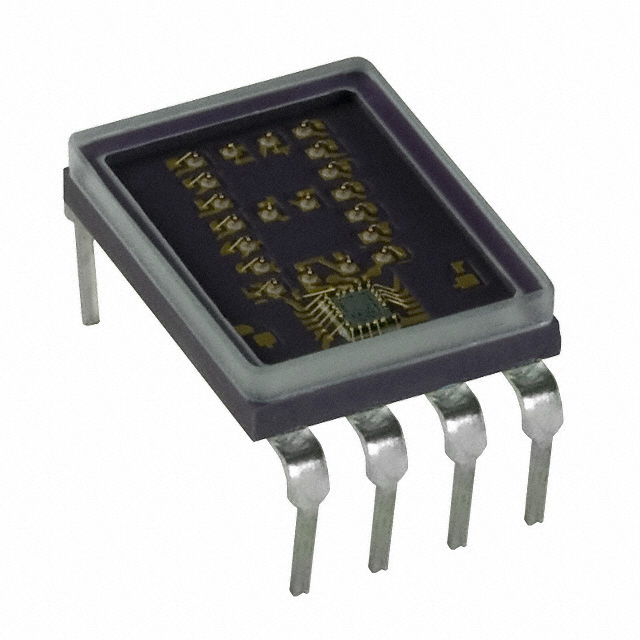

Broadcom Limited HDSP-0962	568 nm	963 mW	10 mA	2.63 mcd	0.3 mcd	7.37 mm	0.29 in	Green	Common Anode	4.3 mm	0.402 in	10.2 mm	0.169 in	0.531 in	13.5 mm	7-Segment Hexadecimal			8-DIP	15.2 mm	0.6 in	1
