VOD3120 Series

Manufacturer: Vishay Semiconductor Opto Division

Catalog

OPTOISO 5.3KV 1CH GATE DVR 8DIP

Part	Mounting Type	Current - Output High, Low	Current - DC Forward (If) (Max) [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Number of Channels [custom]	Voltage - Forward (Vf) (Typ)	Package / Case	Approval Agency	Common Mode Transient Immunity (Min) [Min]	Technology	Voltage - Isolation [custom]	Pulse Width Distortion (Max) [Max]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Current - Peak Output
Vishay Semiconductor Opto Division VOD3120AD-V	Through Hole	2.5 A	20 mA	500 ns	500 ns	1	1.37 V	8-DIP (0.300" 7.62mm)	CQC cUL UL VDE	35 kV/µs	Optical Coupling	5300 Vrms	70 ns	8-DIP	35 ns	35 ns	-40 C	105 ░C	15 V	30 V	2.5 A

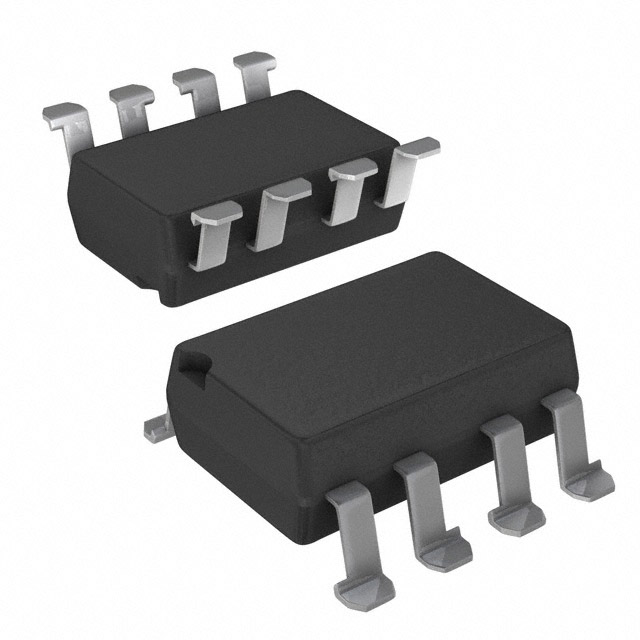

Vishay Semiconductor Opto Division VOD3120AB-T	Surface Mount	2.5 A	20 mA	500 ns	500 ns	1	1.37 V		CQC cUL UL VDE	35 kV/µs	Optical Coupling	5300 Vrms	70 ns	8-SMD	35 ns	35 ns	-40 C	105 ░C	15 V	30 V	2.5 A
Vishay Semiconductor Opto Division VOD3120AB-VT	Surface Mount	2.5 A	20 mA	500 ns	500 ns	1	1.37 V		CQC cUL UL VDE	35 kV/µs	Optical Coupling	5300 Vrms	70 ns	8-SMD	35 ns	35 ns	-40 C	105 ░C	15 V	30 V	2.5 A
Vishay Semiconductor Opto Division VOD3120AG-V	Through Hole	2.5 A	20 mA	500 ns	500 ns	1	1.37 V	8-DIP (0.400" 10.16mm)	CQC cUL UL VDE	35 kV/µs	Optical Coupling	5300 Vrms	70 ns	8-DIP	35 ns	35 ns	-40 C	105 ░C	15 V	30 V	2.5 A

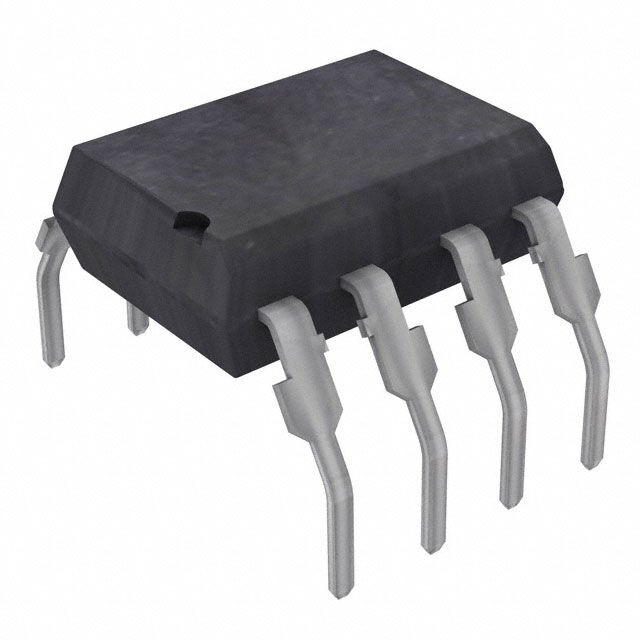

Vishay Semiconductor Opto Division VOD3120AG	Through Hole	2.5 A	20 mA	500 ns	500 ns	1	1.37 V	8-DIP (0.400" 10.16mm)	CQC cUL UL VDE	35 kV/µs	Optical Coupling	5300 Vrms	70 ns	8-DIP	35 ns	35 ns	-40 C	105 ░C	15 V	30 V	2.5 A
Vishay Semiconductor Opto Division VOD3120AB-T2	Surface Mount	2.5 A	20 mA	500 ns	500 ns	1	1.37 V		CQC cUL UL VDE	35 kV/µs	Optical Coupling	5300 Vrms	70 ns	8-SMD	35 ns	35 ns	-40 C	105 ░C	15 V	30 V	2.5 A
Vishay Semiconductor Opto Division VOD3120AD	Through Hole	2.5 A	20 mA	500 ns	500 ns	1	1.37 V	8-DIP (0.300" 7.62mm)	CQC cUL UL VDE	35 kV/µs	Optical Coupling	5300 Vrms	70 ns	8-DIP	35 ns	35 ns	-40 C	105 ░C	15 V	30 V	2.5 A
