KG16.5101 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Material Flammability Rating	Ingress Protection	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Connector Style	Features	Switch Features	Connector Type	Mounting Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Termination	Termination	Filter Type

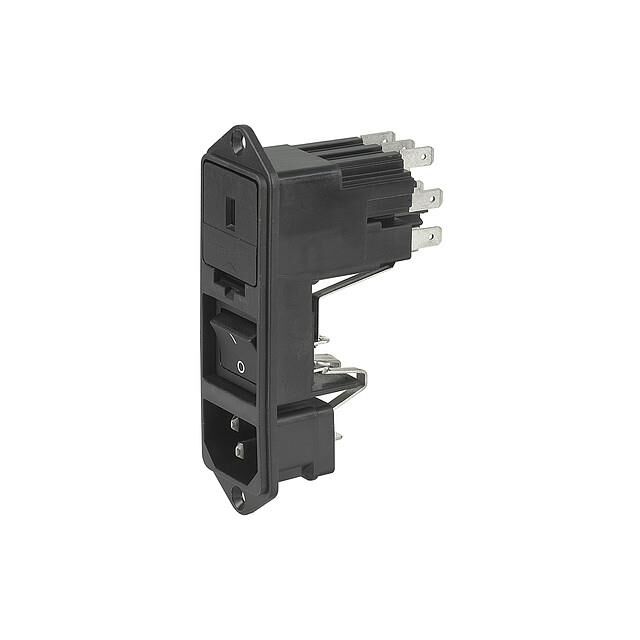

SCHURTER Inc. KG16.5101.107	CSA ENEC UL	UL94 V-0	IP40	Drawer Sold Separate	10 A	0.079 in	2 mm	IEC 320-C14	Voltage Selector	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	250 VAC	27.5 mm	80 mm	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial
SCHURTER Inc. KG16.5101.109	CSA ENEC UL	UL94 V-0	IP40	Drawer Sold Separate	10 A	0.098 in	2.5 mm	IEC 320-C14	Voltage Selector	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	250 VAC	27.5 mm	80 mm	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial
SCHURTER Inc. KG16.5101.105	CSA ENEC UL	UL94 V-0	IP40	Drawer Sold Separate	10 A	0.059 in	1.5 mm	IEC 320-C14	Voltage Selector	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	250 VAC	27.5 mm	80 mm	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial
SCHURTER Inc. KG16.5101.151	CSA ENEC UL	UL94 V-0	IP40	Drawer Sold Separate	10 A			IEC 320-C14	Voltage Selector	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	250 VAC	27.5 mm	80 mm	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial
