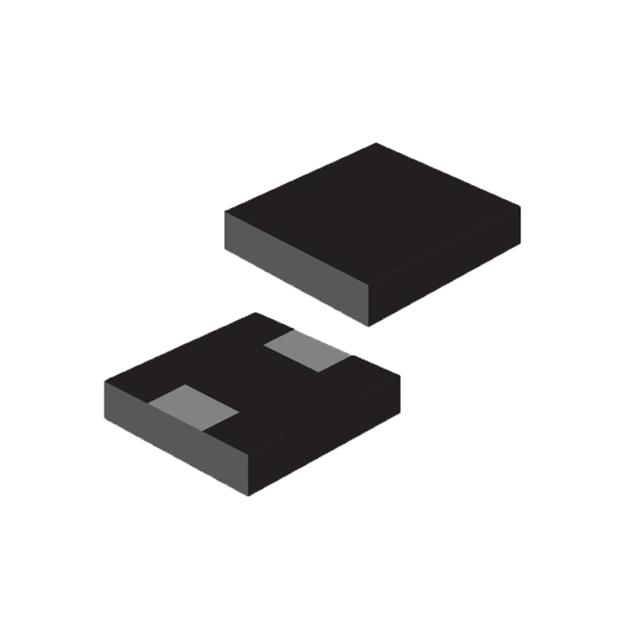

ECS-HCMPI-0402Q Series

Manufacturer: ECS Inc.

Catalog

FIXED IND 220NH 16.8A 0.0046OHM

Part	Supplier Device Package	Package / Case	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Saturation (Isat)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Inductance	Shielding	Tolerance	Type	DC Resistance (DCR)
ECS Inc. ECS-HCMPI-0402Q-R22M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount	4.6 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	18.8 A	16.8 A	125 °C	-40 C	AEC-Q200	220 nH	Shielded	20 %	Molded
ECS Inc. ECS-HCMPI-0402Q-R40M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount		0.161 in	4.1 mm	0.161 "	4.1 mm	13.5 A	14 A	125 °C	-40 C	AEC-Q200	400 nH	Shielded	20 %	Molded	7.73 mOhm
ECS Inc. ECS-HCMPI-0402Q-R36M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount	6.3 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	15 A	14.5 A	125 °C	-40 C	AEC-Q200	360 nH	Shielded	20 %	Molded
ECS Inc. ECS-HCMPI-0402Q-1R2M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount		0.161 in	4.1 mm	0.161 "	4.1 mm	7.8 A	9 A	125 °C	-40 C	AEC-Q200	1.2 µH	Shielded	20 %	Molded
ECS Inc. ECS-HCMPI-0402Q-R72M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount		0.161 in	4.1 mm	0.161 "	4.1 mm		10.5 A	125 °C	-40 C	AEC-Q200	720 nH	Shielded	20 %	Molded	11.6 mOhm
ECS Inc. ECS-HCMPI-0402Q-R56M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount	9.3 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	12.6 A	12 Amps	125 °C	-40 C	AEC-Q200	560 nH	Shielded	20 %	Molded
ECS Inc. ECS-HCMPI-0402Q-R10M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount	2.42 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	33 A	18 A	125 °C	-40 C	AEC-Q200	100 nH	Shielded	20 %	Molded
ECS Inc. ECS-HCMPI-0402Q-2R2M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount		0.161 in	4.1 mm	0.161 "	4.1 mm	6 A	5.6 A	125 °C	-40 C	AEC-Q200	2.2 µH	Shielded	20 %	Molded	38.7 mOhm
ECS Inc. ECS-HCMPI-0402Q-R60M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount	9.52 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	12.3 A	11.7 A	125 °C	-40 C	AEC-Q200	600 nH	Shielded	20 %	Molded
ECS Inc. ECS-HCMPI-0402Q-1R0M-T	0402	1616 (4040 Metric) Nonstandard	100 kHz	2.1 mm	0.083 in	Surface Mount	14.6 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	8.8 A	9.6 A	125 °C	-40 C	AEC-Q200	1 µH	Shielded	20 %	Molded
