STXR40 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN BACKSHELL ADPT SZ11 B BLK
| Part | For Use With/Related Products | Includes | Shell Size - Insert | Shell Size - Insert | Color | Thread Size | Features | Cable Exit | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Ingress Protection | Plating | Shielding | Material | Type | Cable Exit | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

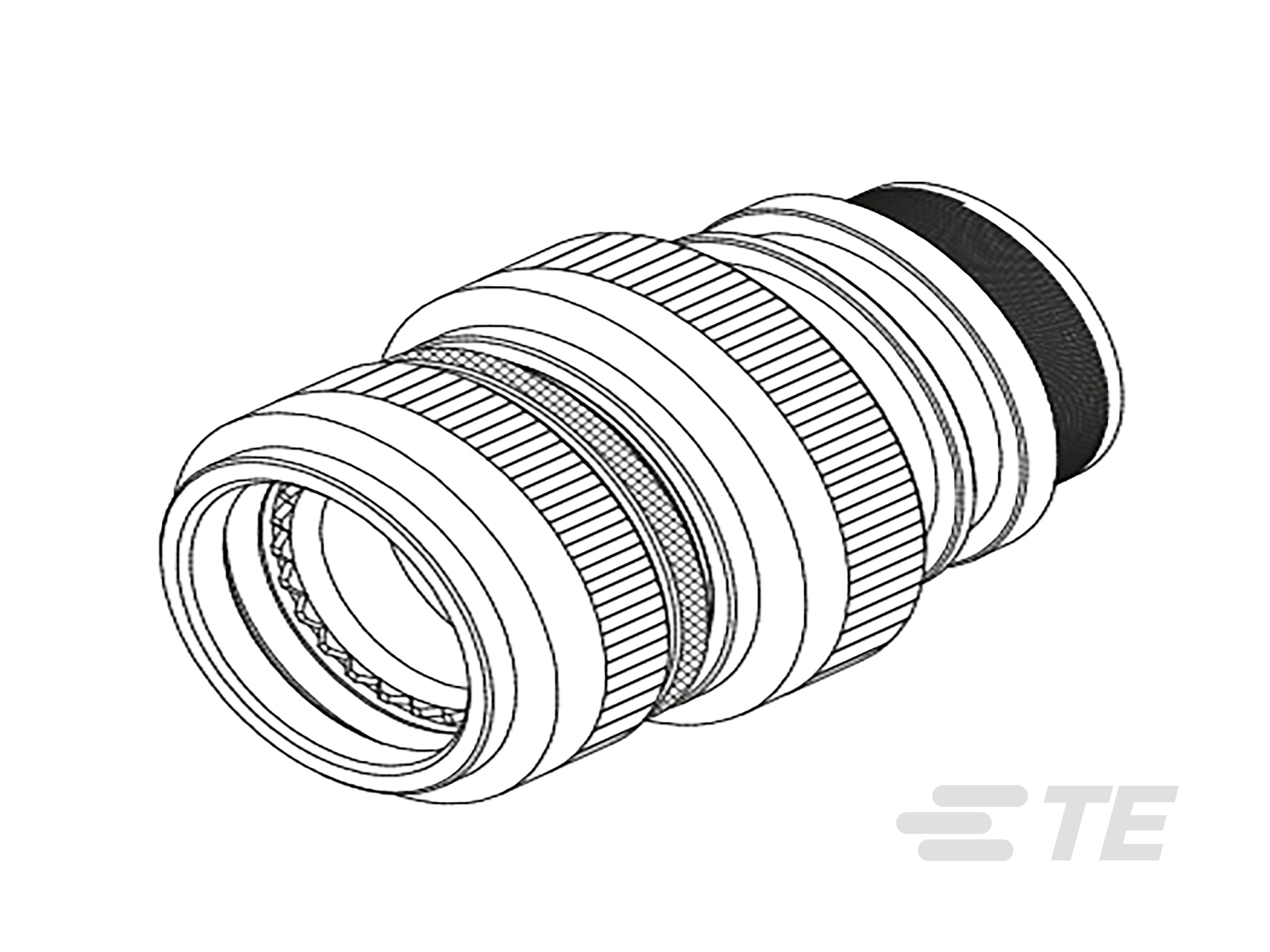

 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 O-Ring 1 Tinel Ring 2 Braids | B | 11 | Black | M15x1 | Tinel Lock | 180 ° | 21 mm | 0.827 in | Environment Resistant | Zinc Nickel | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | ||
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | A | 9 | Olive Drab | M12x1 | Tinel Lock | 180 ° | 18 mm | 0.709 " | Environment Resistant | Cadmium | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | ||

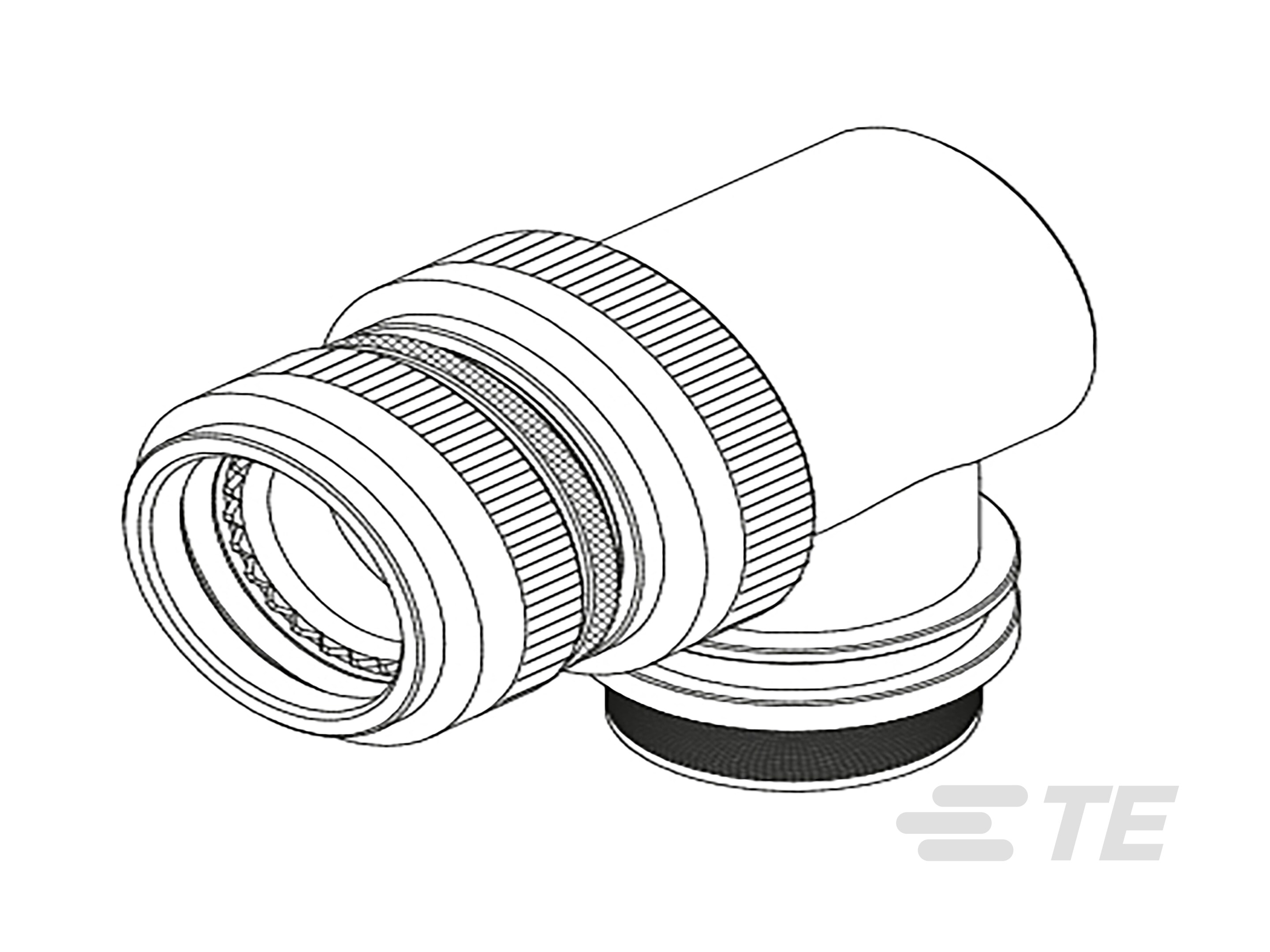

 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 O-Ring | C | 13 | Olive Drab | M18x1 | Tinel Lock | 0.965 in | Environment Resistant | Olive Drab Cadmium | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | 90° | 24.5 mm | ||
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | D | 15 | Olive Drab | Tinel Lock | 180 ° | 29 mm | 1.142 in | Environment Resistant | Cadmium | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | |||
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | D | 15 | Olive Drab | Tinel Lock | 45 ° | 29 mm | 1.142 in | Environment Resistant | Cadmium | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | |||
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 O-Ring 1 Tinel Ring 2 Braids | A | 9 | Black | M12x1 | Tinel Lock | 180 ° | 18 mm | 0.709 " | Environment Resistant | Zinc Nickel | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | ||
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | B | 11 | Black | M15x1 | Tinel Lock | 180 ° | 21 mm | 0.827 in | Environment Resistant | Zinc Nickel | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | ||
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | D | 15 | Olive Drab | Tinel Lock | 180 ° | 29 mm | 1.142 in | Environment Resistant | Cadmium | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | |||
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | E | 17 | Olive Drab | M25x1 | Tinel Lock | 180 ° | 32.49 mm | 1.279 " | Environment Resistant | Cadmium | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | ||
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | A | 9 | Olive Drab | M12x1 | Tinel Lock | 18 mm | 0.709 " | Environment Resistant | Cadmium | Shielded | Aluminum Alloy | Backshell Heat Shrink Adapter | 90° |
