142PC15 Series

Catalog

SENSOR 15PSIA 0.2" 6V

Part	Port Size	Port Size	Port Size	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Package / Case	Output Type	Termination Style	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Applications	Mounting Type	Features	Pressure Type	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]

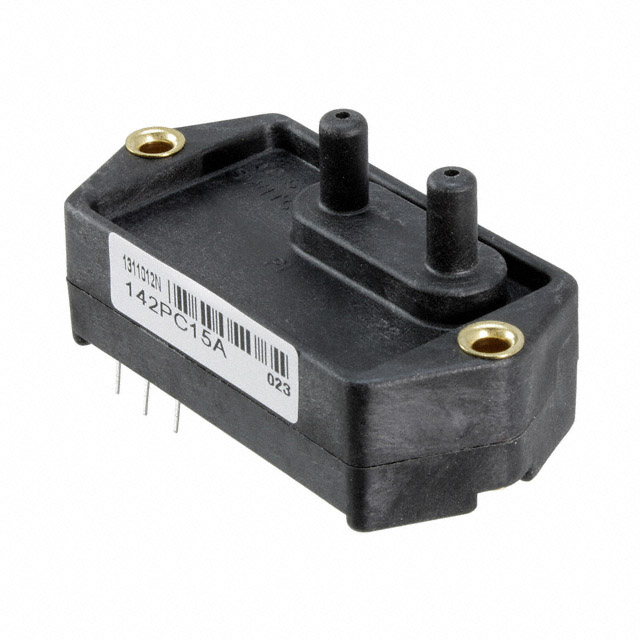

Honeywell Sensing and Productivity Solutions 142PC15A104	0.2 in	5 mm	Dual Male Tube	0.87 %	16 V	7 V	6 V	1 V	15 PSI	103.42 kPa	Module	Analog Voltage	PC Pin	310.26 kPa	45 PSI	85 °C	-40 C	Barbless

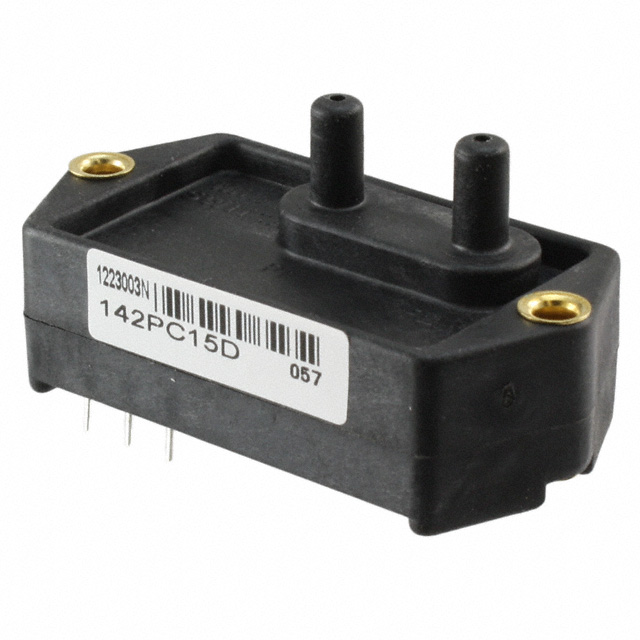

Honeywell Sensing and Productivity Solutions 142PC15D	0.2 in	5 mm	Dual Male Tube	0.75 %	16 V	7 V	6 V	1 V	15 PSI	103.42 kPa	3-SIP Module	Analog Voltage	PC Pin	310.26 kPa	45 PSI	85 °C	-40 C	Barbless	Board Mount	Through Hole	Amplified Output Temperature Compensated	Differential
Honeywell Sensing and Productivity Solutions 142PC15DW	0.2 in	5 mm	Dual Male Tube	0.4 %	16 V	7 V	6 V	1 V	15 PSI	103.42 kPa	3-SIP Module	Analog Voltage	PC Pin	310.26 kPa	45 PSI	85 °C	-40 C	Barbless	Board Mount	Through Hole	Amplified Output Temperature Compensated	Differential
Honeywell Sensing and Productivity Solutions 142PC15AW95	0.2 in	5 mm	Male Tube	0.4 %	16 V	7 V	5.33 V	1 V			3-SIP Module	Analog Voltage	PC Pin	310.26 kPa	45 PSI	85 °C	-40 C	Barbless	Board Mount	Through Hole	Amplified Output Temperature Compensated		13.79 kPa	2 PSI	15 PSI	103.42 kPa
