EN3P5F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Voltage Rating | Applications | Orientation | Mounting Feature | Fastening Type | Contact Material | Current Rating (Amps) | Primary Material | Ingress Protection | Shielding | Contact Finish - Mating | Insert Material | Connector Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

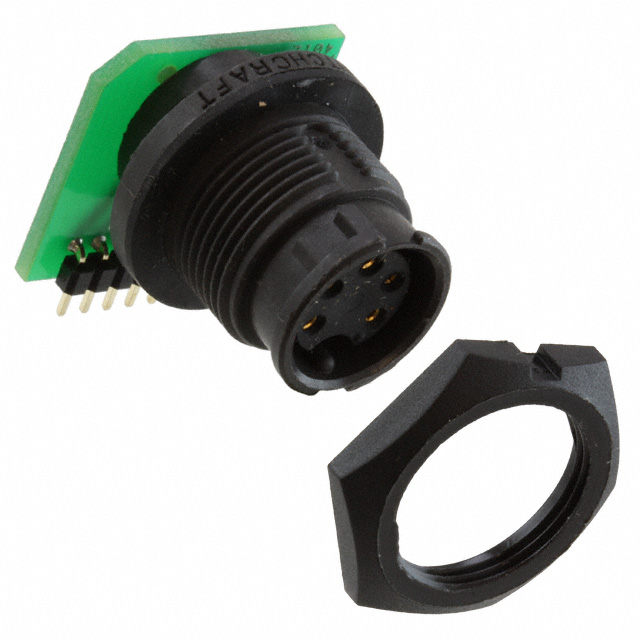

 Switchcraft Inc. | 250 VAC | General Purpose Instrumentation Marine Medical | Keyed | Bulkhead - Front Side Nut | Bayonet Lock | Copper Alloy | 4 A | Plastic | IP66/IP68 | Unshielded | Gold | Elastomer | Receptacle Female Sockets | Circuit Board Solder | 65 °C | -40 °C | UL94 V-0 | Panel Mount Right Angle Through Hole | Black |
 Switchcraft Inc. | 250 VAC | General Purpose Instrumentation Marine Medical | Keyed | Bulkhead - Front Side Nut | Bayonet Lock | Copper Alloy | 7.5 A | Plastic | IP66/IP68 | Unshielded | Gold | Elastomer | Receptacle Female Sockets | Solder | 65 °C | -40 °C | UL94 V-0 | Panel Mount Through Hole | Black |

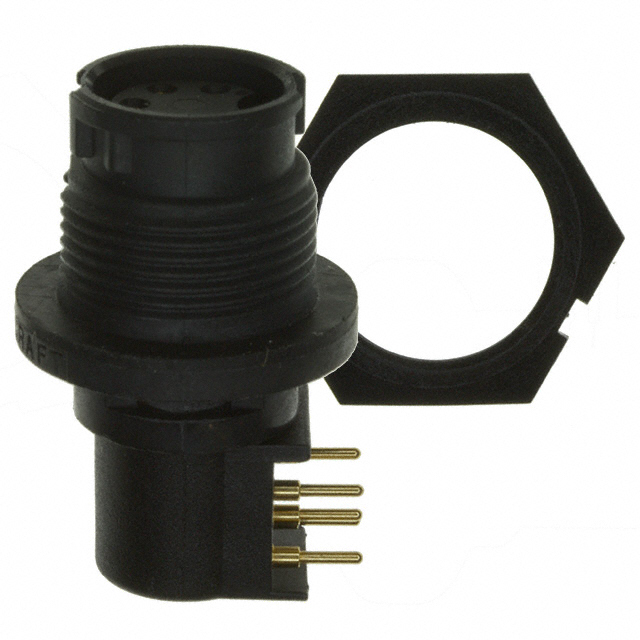

 Switchcraft Inc. | 250 VAC | General Purpose Instrumentation Marine Medical | Keyed | Bulkhead - Front Side Nut | Bayonet Lock | Copper Alloy | 4 A | Plastic | IP66/IP68 | Unshielded | Gold | Elastomer | Receptacle Female Sockets | Solder | 65 °C | -40 °C | UL94 V-0 | Panel Mount Right Angle Through Hole | Black |
 Switchcraft Inc. | 250 VAC | General Purpose Instrumentation Marine Medical | Keyed | Bulkhead - Front Side Nut | Bayonet Lock | Copper Alloy | 7.5 A | Plastic | IP66/IP68 | Unshielded | Gold | Elastomer | Receptacle Female Sockets | 65 °C | -40 °C | UL94 V-0 | Black | ||
Switchcraft Inc. | 250 VAC | General Purpose Instrumentation Marine Medical | Keyed | Bulkhead - Front Side Nut | Bayonet Lock | Copper Alloy | 7.5 A | Plastic | IP66/IP68 | Unshielded | Gold | Elastomer | Receptacle Female Sockets | 65 °C | -40 °C | UL94 V-0 | Black | ||

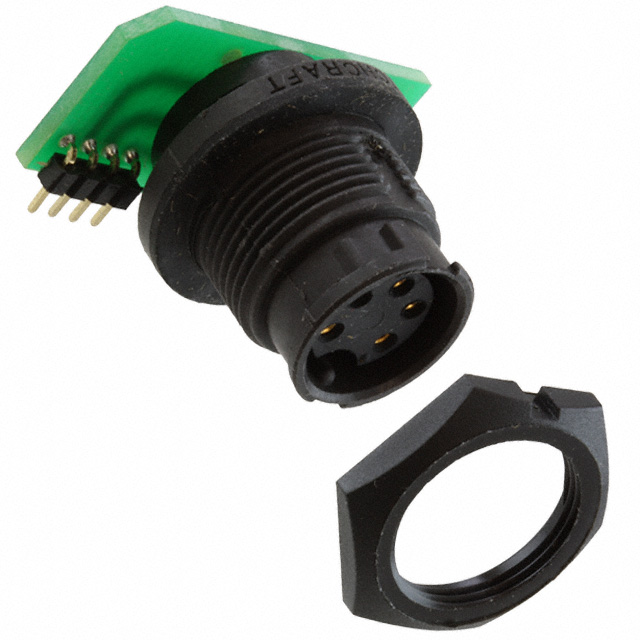

 Switchcraft Inc. | 250 VAC | General Purpose Instrumentation Marine Medical | Keyed | Bulkhead - Front Side Nut | Bayonet Lock | Copper Alloy | 4 A | Plastic | IP66/IP68 | Unshielded | Gold | Elastomer | Receptacle Female Sockets | Circuit Board Solder | 65 °C | -40 °C | UL94 V-0 | Panel Mount Right Angle Through Hole | Black |
