A7DP Series

Catalog

SWITCH THUMB BCD 0.1A 30V

Part	Electrical Life	Depth Behind Flange	Color	Output Code	Actuator Type	Features	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating @ Voltage	Read Out [Max]	Read Out [Min]	Number of Sections	End Caps	Read Out

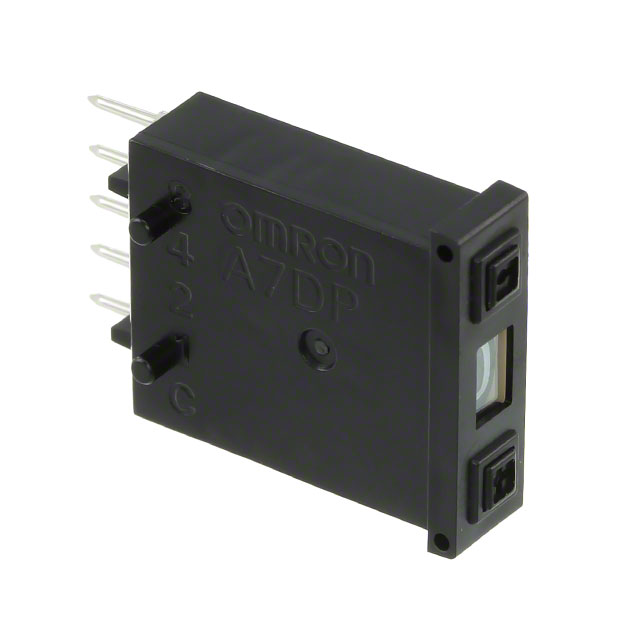

Omron Electronics Inc-EMC Div A7DP-206-1	20000 Steps	17.5 mm	Black	BCD	Pushwheel	Pen-Push Actuator	PC Pin	70 °C	-10 °C	Panel Mount Snap-In	0.1 A 30 VDC	9	0	1	Sold Separately
Omron Electronics Inc-EMC Div A7DP-206-PM-1	20000 Steps	17.5 mm	Black	SPDT	Pushwheel	Pen-Push Actuator	PC Pin	70 °C	-10 °C	Panel Mount Snap-In	0.1 A 30 VDC			1	Sold Separately	+/-
Omron Electronics Inc-EMC Div A7DP-206-S06-1	20000 Steps	17.5 mm	Black	BCD	Pushwheel	Internal Stoppers Pen-Push Actuator	PC Pin	70 °C	-10 °C	Panel Mount Snap-In	0.1 A 30 VDC	6	0	1	Sold Separately
Omron Electronics Inc-EMC Div A7DP-206	20000 Steps	17.5 mm	Light Gray	BCD	Pushwheel	Pen-Push Actuator	PC Pin	70 °C	-10 °C	Panel Mount Snap-In	0.1 A 30 VDC	9	0	1	Sold Separately
