CH Series
Isolated DC/DC Converters - Chassis Mount 380W 36-76Vin 10V38A Remte On/Off Pos Lgc
Manufacturer: Cosel USA, Inc.
Catalog
Isolated DC/DC Converters - Chassis Mount 380W 36-76Vin 10V38A Remte On/Off Pos Lgc
Beta
⌘K
Isolated DC/DC Converters - Chassis Mount 380W 36-76Vin 10V38A Remte On/Off Pos Lgc
Isolated DC/DC Converters - Chassis Mount 380W 36-76Vin 10V38A Remte On/Off Pos Lgc
Isolated DC/DC Converters - Chassis Mount 380W 36-76Vin 10V38A Remte On/Off Pos Lgc
| Part | Voltage - Output 1 | Features | Package / Case | Number of Outputs | Efficiency | Type | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Applications | Supplier Device Package | Voltage - Isolation | Current - Output (Max) [Max] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Control Features | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 10 V | Adjustable Output Remote On/Off Remote Sense | Eighth Brick | 1 | 94 % | Isolated Module | CE cURus TUV | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | Through Hole | 76 V | 36 V | ITE (Commercial) | Eighth Brick | 2250 VDC | 38 A | 380 W | -40 °C | 85 °C | Active High Enable | ||

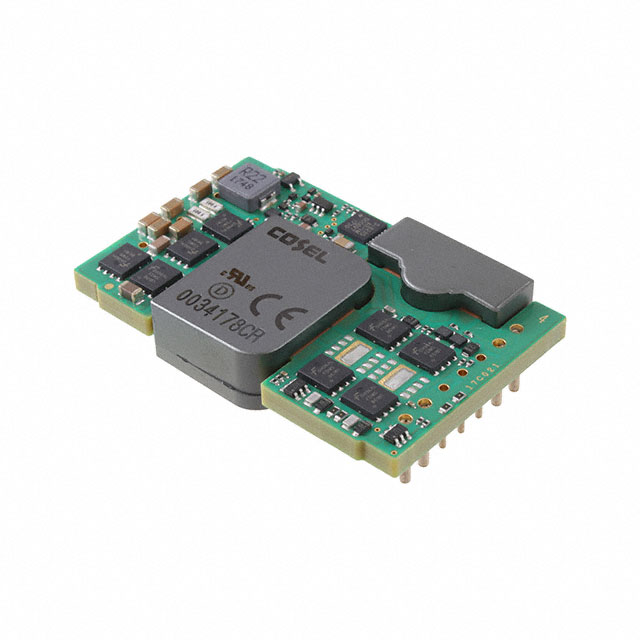

 Cosel USA, Inc. | 12 V | Adjustable Output Remote Sense | Quarter Brick | 1 | 96 % | Isolated Module | CE cURus TUV | 1.45 in | 58.4 mm | 2.3 in | 0.41 in | Through Hole | 76 V | 36 V | ITE (Commercial) | Quarter Brick | 2250 VDC | 58.5 A | 702 W | -40 °C | 85 °C | Active Low Enable | 10.5 mm | 36.8 mm |
