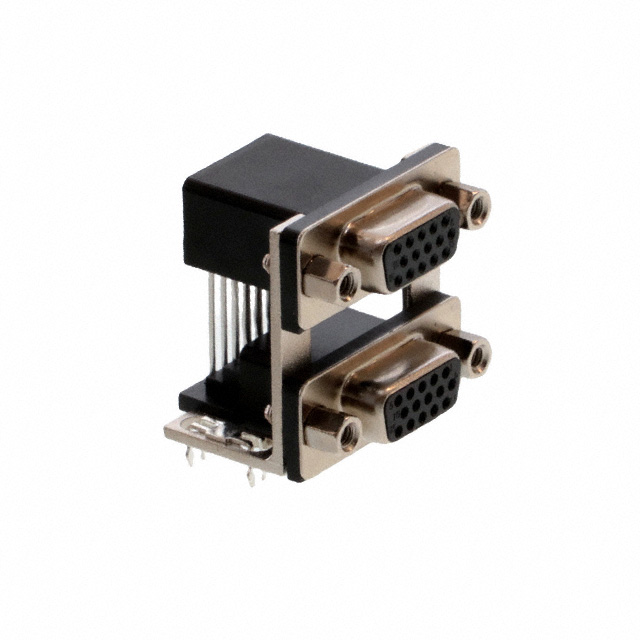

178-H15 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB PLUG 15POS R/A SLDR
| Part | Dielectric Material | Color | Contact Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mounting Type | Connector Type | Material Flammability Rating | Connector Style | Shell Material, Finish | Flange Feature | Contact Finish Thickness | Features | Contact Type | Shell Size, Connector Layout [y] | Shell Size, Connector Layout [x] | Termination | Number of Positions | Number of Positions | Backset Spacing | Backset Spacing | Contact Finish | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | Copper Alloy | Stamped | -55 C | 85 °C | 3 A | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | UL94 V-0 | D-Sub - Stacked | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Flash | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | 1 (DE E) | 1 (DE E) | Solder | 15 | 15 | 8.89 mm | 0.35 in | Gold | 3 |
