115-83 Series

Manufacturer: Preci-Dip

Catalog

CONN IC DIP SOCKET 28POS GOLD

Part	Termination Post Length	Termination Post Length	Contact Resistance	Current Rating (Amps)	Material Flammability Rating	Contact Material - Post [custom]	Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Features	Contact Finish - Mating	Contact Finish - Post	Housing Material	Mounting Type	Pitch - Mating	Pitch - Mating	Type	Type	Contact Material - Mating	Type [custom]	Type [custom]	Type	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 115-83-428-41-001101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm	28	-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm	0.4 in	DIP	Beryllium Copper

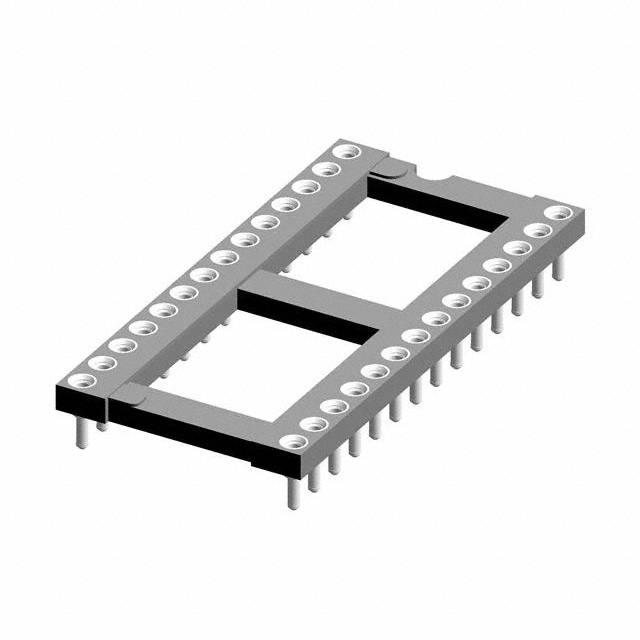

Preci-Dip 115-83-628-41-003101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm	28	-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm		DIP	Beryllium Copper	15.24 mm	0.6 in

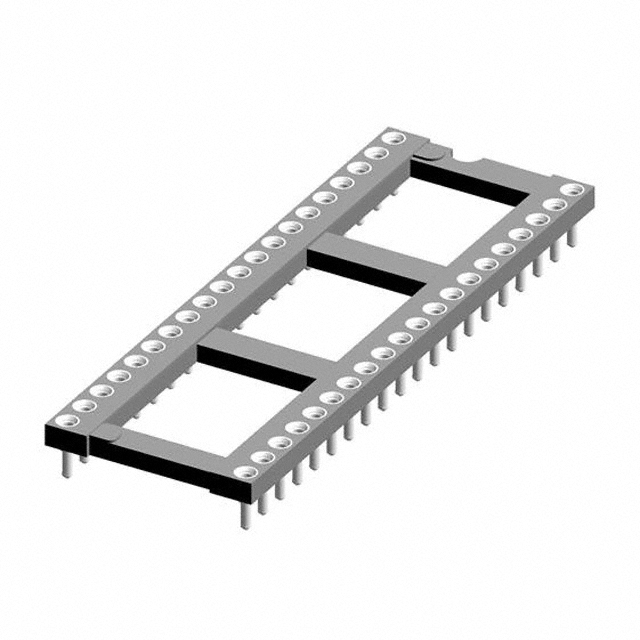

Preci-Dip 115-83-640-41-003101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm	40	-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm		DIP	Beryllium Copper	15.24 mm	0.6 in

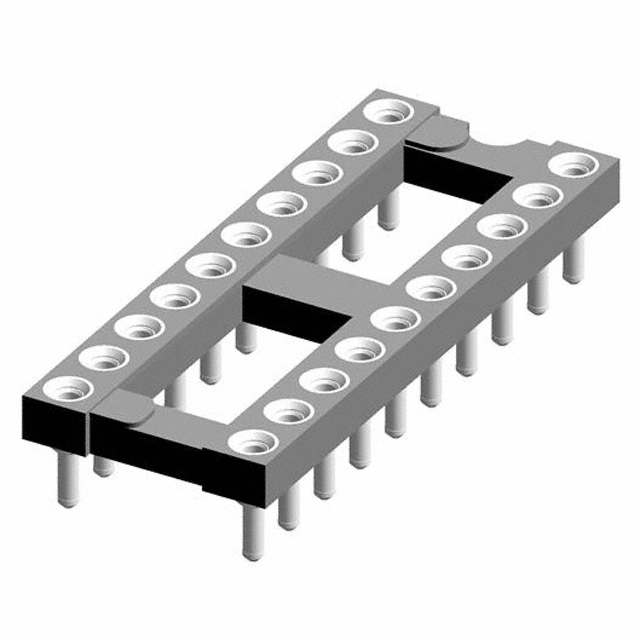

Preci-Dip 115-83-320-41-003101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm	20	-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm	0.3 in	DIP	Beryllium Copper			7.62 mm

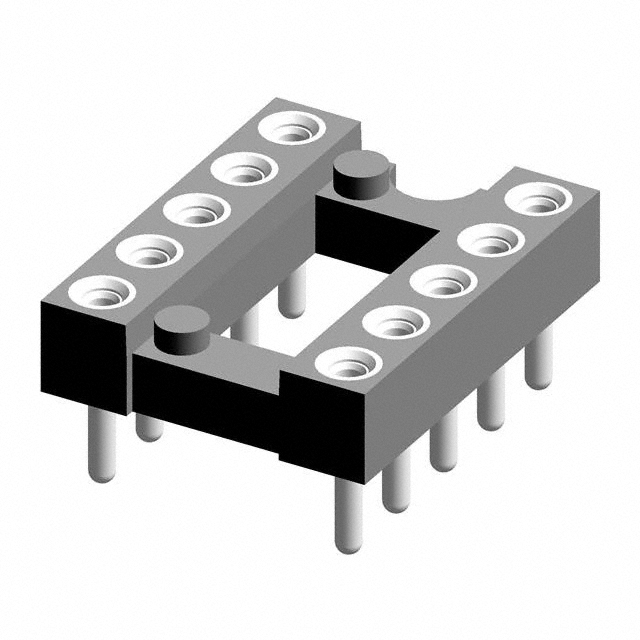

Preci-Dip 115-83-310-41-001101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm	10	-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm	0.3 in	DIP	Beryllium Copper			7.62 mm	5	2

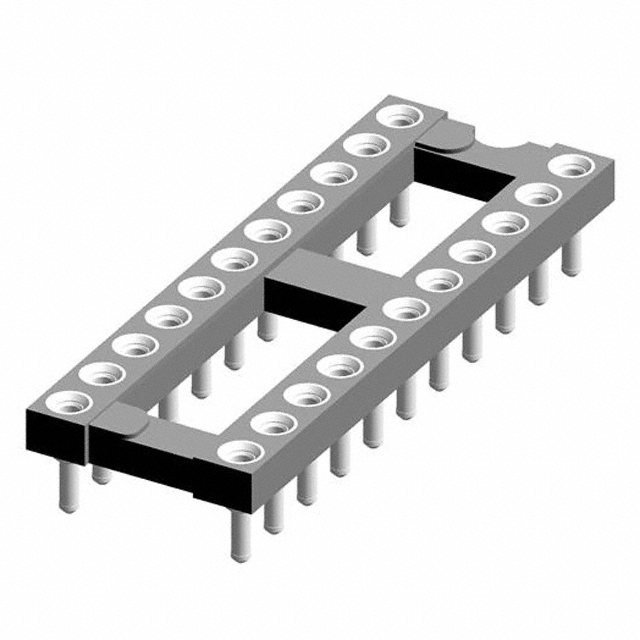

Preci-Dip 115-83-322-41-003101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm	22	-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm	0.3 in	DIP	Beryllium Copper			7.62 mm	11	2

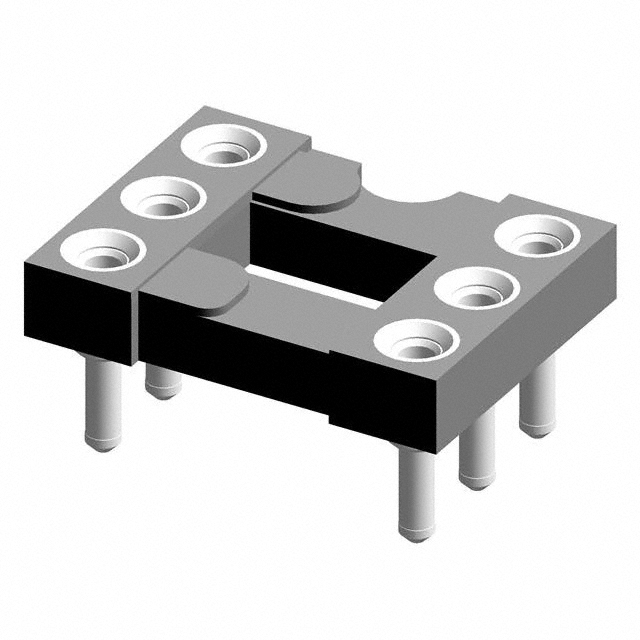

Preci-Dip 115-83-306-41-003101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm	6	-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm	0.3 in	DIP	Beryllium Copper			7.62 mm	3 positions or pins	2

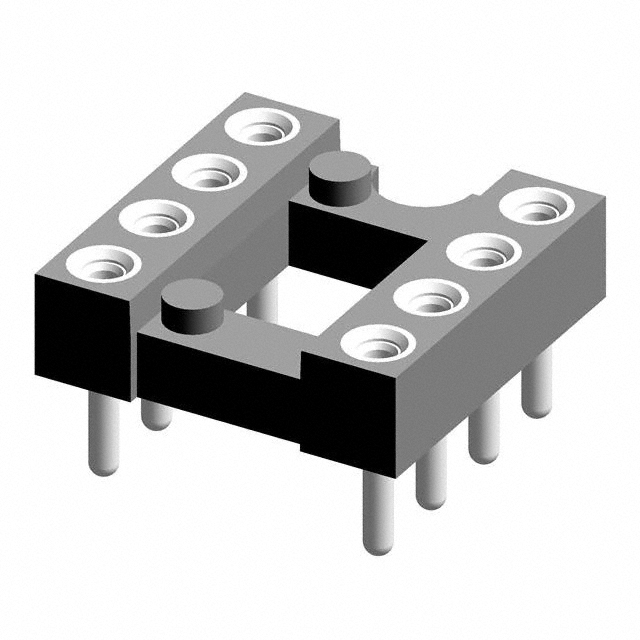

Preci-Dip 115-83-308-41-001101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm	8	-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm	0.3 in	DIP	Beryllium Copper			7.62 mm	4	2
Preci-Dip 115-83-950-41-001101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm		-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm	0.9 in	DIP	Beryllium Copper			22.86 mm	25	2	50

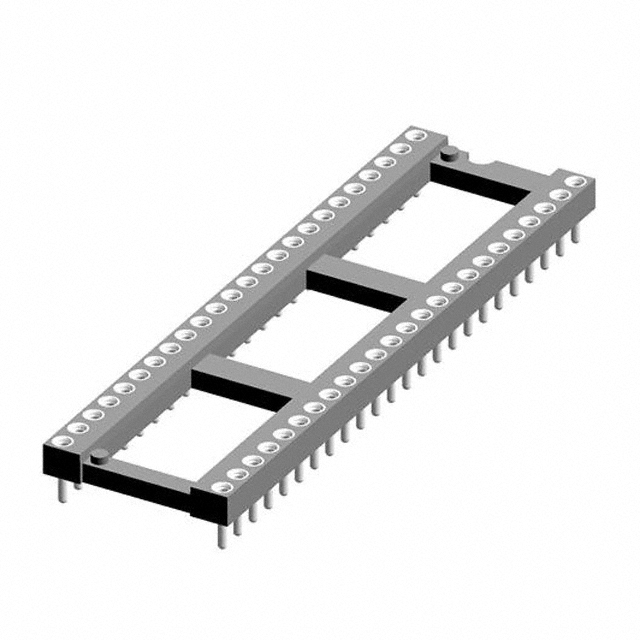

Preci-Dip 115-83-648-41-001101	0.095 "	2.41 mm	10 mOhm	1 A	UL94 V-0	Brass	Solder	29.5 µin	0.75 µm		-55 C	125 °C	0.1 in	2.54 mm	Open Frame	Gold	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 "	2.54 mm		DIP	Beryllium Copper	15.24 mm	0.6 in		2	24		48
