325311 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 9CIRC 0.325"
| Part | Operating Temperature | Material Flammability Rating | Mounting Type | Material - Insulation | Number of Wire Entries | Wire Gauge [Min] | Wire Gauge [Max] | Barrier Type | Terminal Block Type | Top Termination | Current Rating (Amps) | Bottom Termination | Pitch | Pitch | Number of Rows | Number of Circuits [custom] | Voltage Rating | Number of Circuits | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

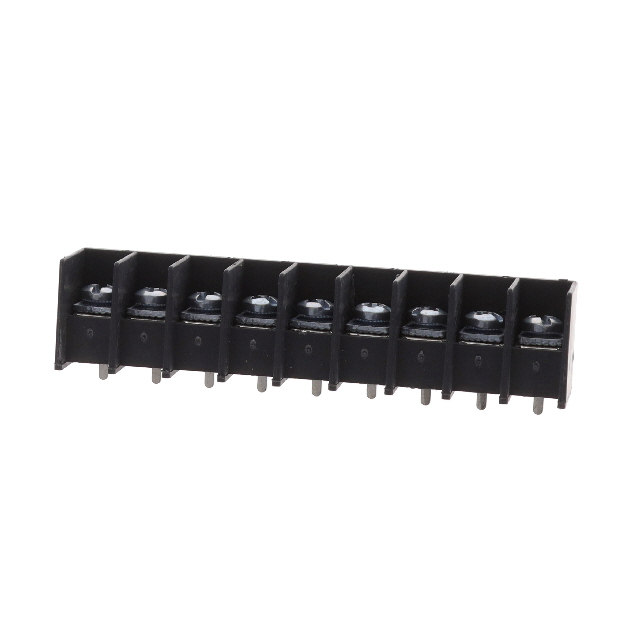

 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 9 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 9 | 300 VDC | ||

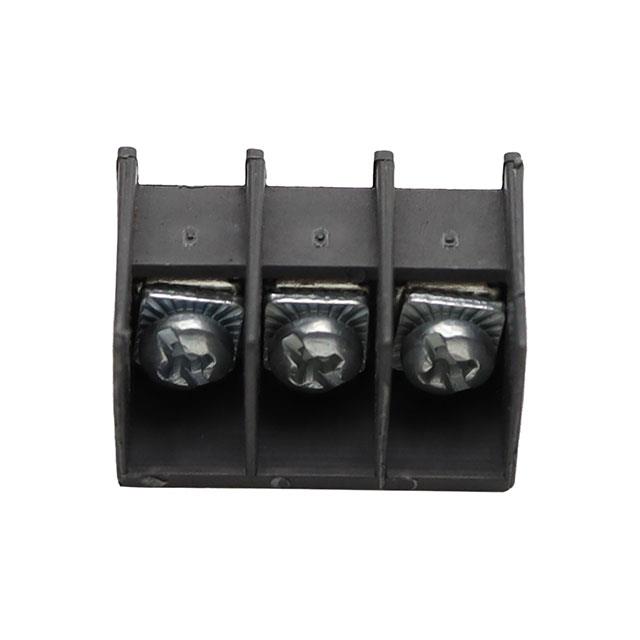

 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 3 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 300 VDC | 3 | ||
 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 15 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 300 VDC | 15 | ||
Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 23 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 23 | 300 VDC | ||

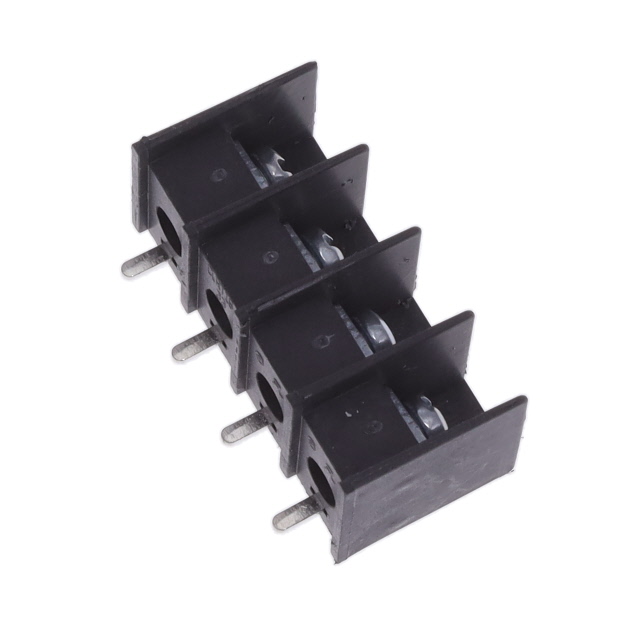

 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 4 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 300 VDC | 4 | ||

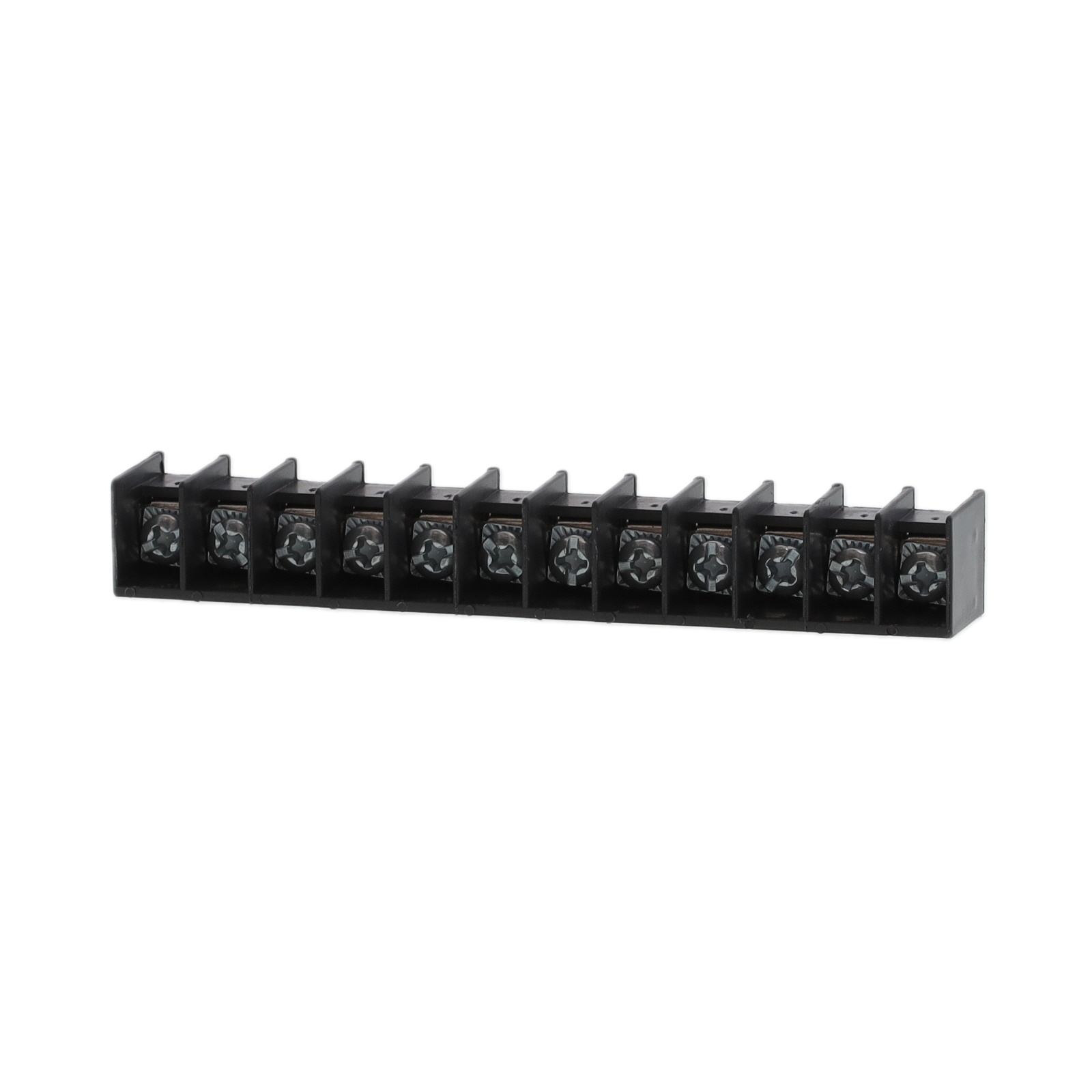

 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 12 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 300 VDC | 12 | ||

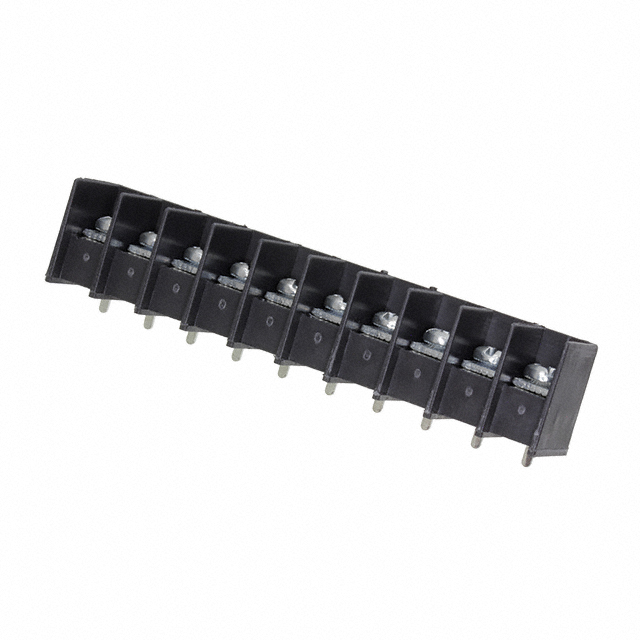

 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 10 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 300 VDC | 10 | ||
 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 2 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 300 VDC | 2 | ||

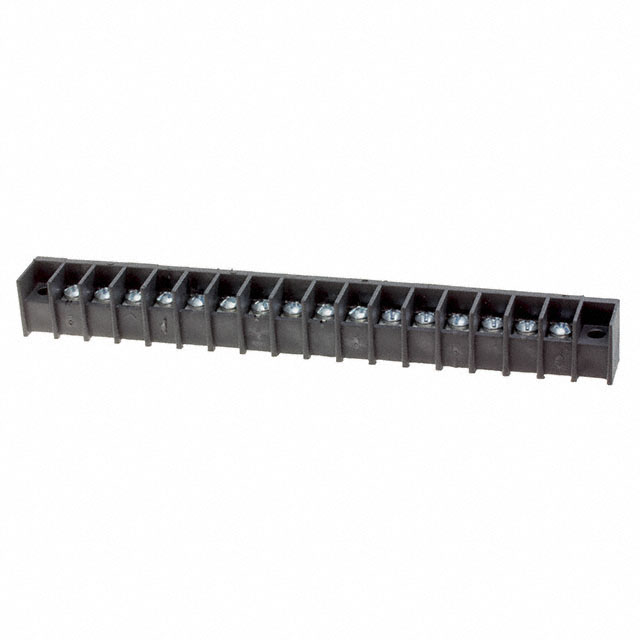

 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 16 | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 300 VDC | 16 | ||

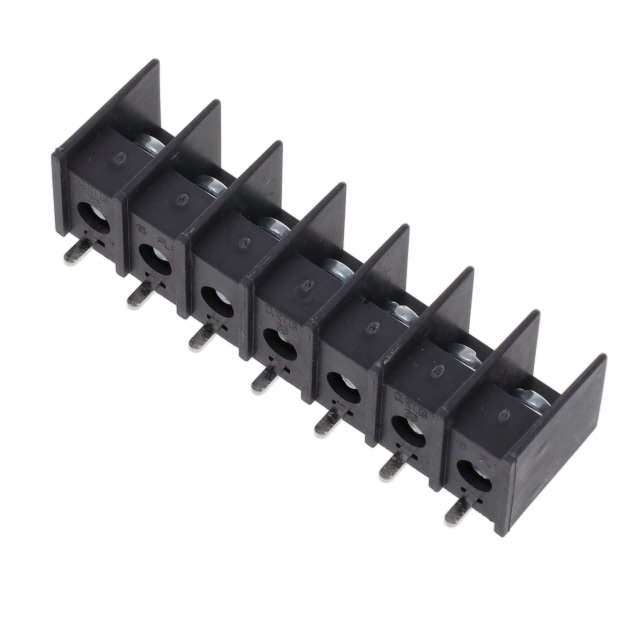

 Curtis Industries | 105 C | UL94 V-0 | Through Hole | Polypropylene (PP) | 14 AWG | 22 AWG | 3 Wall (Tri) | Barrier Block | Screws | 15 A | PC Pin | 0.325 in | 8.26 mm | 1 | 300 VDC | 7 | 7 |
