G4010 Series

Catalog

FAN AXIAL 40X10.3MM 24VDC WIRE

Part	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Features	Approval Agency	Static Pressure	Static Pressure	Weight	Weight	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Noise	Air Flow	Width [x]	Fan Type	Termination	RPM

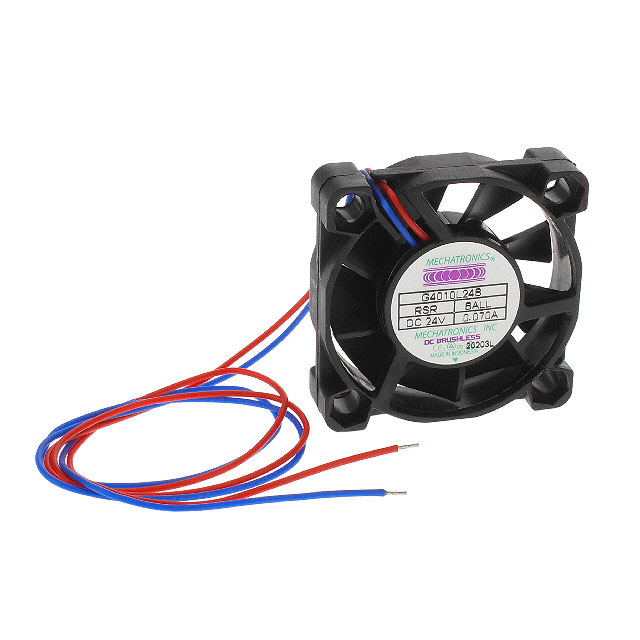

Mechatronics Fan Group G4010L24B-RSR	6 CFM	0.168 mł/min	Polybutylene Terephthalate (PBT)	70 mA	Thermal Overload Protector (TOP)	CE cUL TUV UL	0.11 in H2O	27.4 Pa	0.026 lb	11.79 g	Ball	40 mm	40 mm	24 VDC	22 dB(A)	6 CFM	10.3 mm	Tubeaxial	2 Wire Leads	5000 RPM

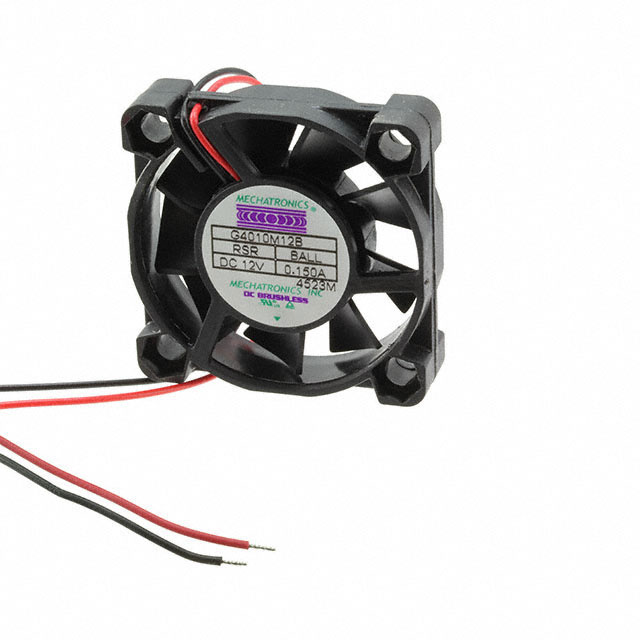

Mechatronics Fan Group G4010M12B-RSR		0.196 mł/min	Polybutylene Terephthalate (PBT)	150 mA	Thermal Overload Protector (TOP)	CE cUL TUV UL			0.026 lb	11.79 g	Ball	40 mm	40 mm	12 VDC	28 dB	7 CFM	10.3 mm	Tubeaxial	2 Wire Leads	6000 RPM

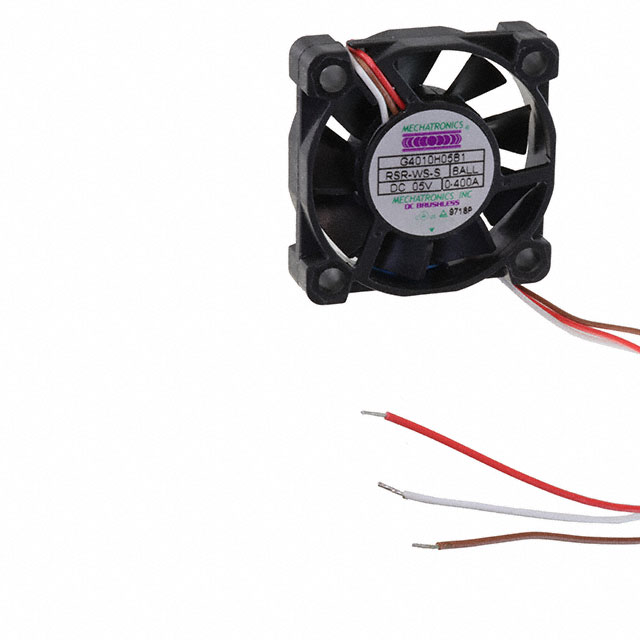

Mechatronics Fan Group G4010H05B1-RSR-WS-S		0.252 m³/min	Polybutylene Terephthalate (PBT)	400 mA	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	CE cUL TUV UL	0.25 in H2O	62.3 Pa	0.026 lb	11.79 g	Ball	40 mm	40 mm	5 V	35 dB	9 CFM	10.3 mm	Tubeaxial	4 Wire Leads	8000 RPM
Mechatronics Fan Group G4010S05B-RSR		0.14 mł/min	Polybutylene Terephthalate (PBT)	0.09 A	Thermal Overload Protector (TOP)	CE cUL TUV UL	0.07 in H2O	17.4 Pa	0.026 lb	11.79 g	Ball	40 mm	40 mm	5 V	21 dB(A)	5 CFM	10.3 mm	Tubeaxial	2 Wire Leads	4000 RPM
Mechatronics Fan Group G4010L12B-RSR		0.168 mł/min	Polybutylene Terephthalate (PBT)	100 mA	Thermal Overload Protector (TOP)	CE cUL TUV UL	0.11 in H2O	27.4 Pa	0.026 lb	11.79 g	Ball	40 mm	40 mm	12 VDC	22 dB(A)	6 CFM	10.3 mm	Tubeaxial	2 Wire Leads	5000 RPM
Mechatronics Fan Group G4010E12B-RSR			Polybutylene Terephthalate (PBT)	0.35 A	Thermal Overload Protector (TOP)	CE cUL TUV UL	0.39 in H2O	97.1 Pa	0.026 lb	11.79 g	Ball	40 mm	40 mm	12 VDC	41 dB		10.3 mm	Tubeaxial	2 Wire Leads	10000 RPM
Mechatronics Fan Group G4010H12B1-RSR-WS		0.252 m³/min	Polybutylene Terephthalate (PBT)	0.22 A	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	CE cUL TUV UL	0.25 in H2O	62.3 Pa	0.026 lb	11.79 g	Ball	40 mm	40 mm	12 VDC	35 dB	9 CFM	10.3 mm	Tubeaxial	4 Wire Leads	8000 RPM
Mechatronics Fan Group G4010H05B-RSR		0.252 m³/min	Polybutylene Terephthalate (PBT)	0.22 A	Thermal Overload Protector (TOP)	CE cUL TUV UL	0.25 in H2O	62.3 Pa	0.026 lb	11.79 g	Ball	40 mm	40 mm	5 V	35 dB	9 CFM	10.3 mm	Tubeaxial	2 Wire Leads	8000 RPM
Mechatronics Fan Group G4010H24B-RSR		0.252 m³/min	Polybutylene Terephthalate (PBT)		Thermal Overload Protector (TOP)	CE cUL TUV UL	0.25 in H2O	62.3 Pa	0.026 lb	11.79 g	Ball	40 mm	40 mm	24 VDC	35 dB	9 CFM	10.3 mm	Tubeaxial	2 Wire Leads	8000 RPM

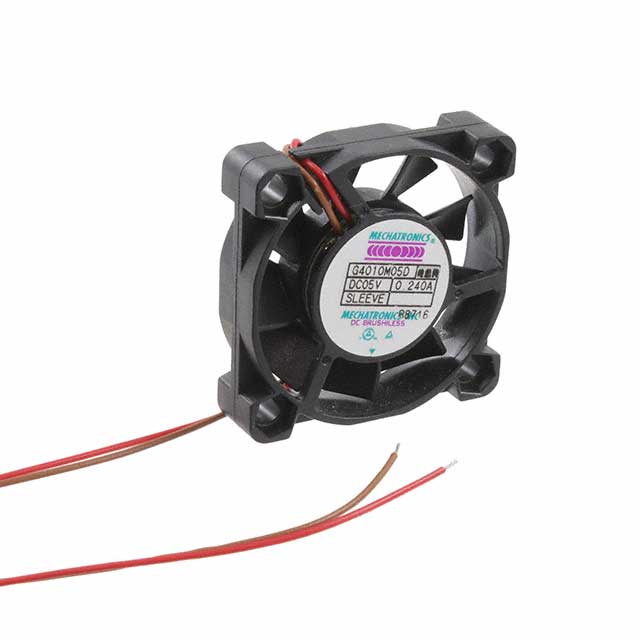

Mechatronics Fan Group G4010M05D-RSR		0.196 mł/min	Polybutylene Terephthalate (PBT)	0.24 A	Thermal Overload Protector (TOP)	CE cUL TUV UL			0.026 lb	11.79 g	Sleeve	40 mm	40 mm	5 V	28 dB	7 CFM	10.3 mm	Tubeaxial	2 Wire Leads	6000 RPM
