FLA.0S Series

Manufacturer: LEMO

Catalog

CONN COLLET FLA.0S. - 4.2MM DIA

Part	Accessory Type	For Use With/Related Products	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Material	Dielectric Material	Mating Cycles	Body Finish	Connector Style	Mounting Type	Impedance	Center Contact Material	Fastening Type	Cable Group	Ingress Protection	Connector Type	Shield Termination	Housing Color	Contact Termination	Number of Ports	Current Rating (Amps)	Shell Finish	Shell Material	Contact Material	Material Flammability Rating	Insert Material	Orientation	Shell Size - Insert	Contact Finish - Mating	Features	Backshell Material, Plating	Primary Material	Color	Number of Positions	Shielding	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]
LEMO FLA.0S.742.CN	Collet	0S Series Connector
LEMO FLA.0S.744.CN	Collet	0S Series Connector
LEMO FLA.0S.250.CTAC27			-55 C	250 °C	Gold	Brass	Polytetrafluoroethylene (PTFE)	1000	Chrome	Coaxial	Free Hanging (In-Line) Right Angle	50 Ohms	Brass	Push-Pull	174 174A 178B 188A 196A 316B RG-122	IP50 - Dust Protected	Plug Male Pin	Clamp	Silver	Solder
LEMO FLA.0S.250.CTAC32			-55 C	250 °C	Gold	Brass	Polytetrafluoroethylene (PTFE)	1000	Chrome	Coaxial	Free Hanging (In-Line) Right Angle	50 Ohms	Brass	Push-Pull	174 174A 178B 188A 196A 316B RG-122	IP50 - Dust Protected	Plug Male Pin	Clamp	Silver	Solder
LEMO FLA.0S.250.CTAK52			-55 C	250 °C	Gold	Brass	Polytetrafluoroethylene (PTFE)	1000	Chrome	Coaxial	Free Hanging (In-Line) Right Angle	50 Ohms	Brass	Push-Pull	174 174A 178B 188A 196A 316B RG-122	IP50 - Dust Protected	Plug Male Pin	Clamp	Silver	Solder
LEMO FLA.0S.737.CN	Collet	0S Series Connector
LEMO FLA.0S.250.CTAK57			-55 C	250 °C	Gold	Brass	Polytetrafluoroethylene (PTFE)	1000	Chrome	Coaxial	Free Hanging (In-Line) Right Angle	50 Ohms	Brass	Push-Pull	174 174A 178B 188A 196A 316B RG-122	IP50 - Dust Protected	Plug Male Pin	Clamp	Silver	Solder	1
LEMO FLA.0S.727.CN	Collet	0S Series Connector
LEMO FLA.0S.302.CLAZ			-55 C	250 °C							Free Hanging (In-Line) Right Angle			Push-Pull		IP50 - Dust Protected	Plug Female Sockets and Male Pins					10 A	Chrome	Brass	Brass Bronze	UL94 V-0	Polyetheretherketone (PEEK)	Keyed	302	Gold	Backshell	Brass Chrome	Metal	Silver	2	Shielded

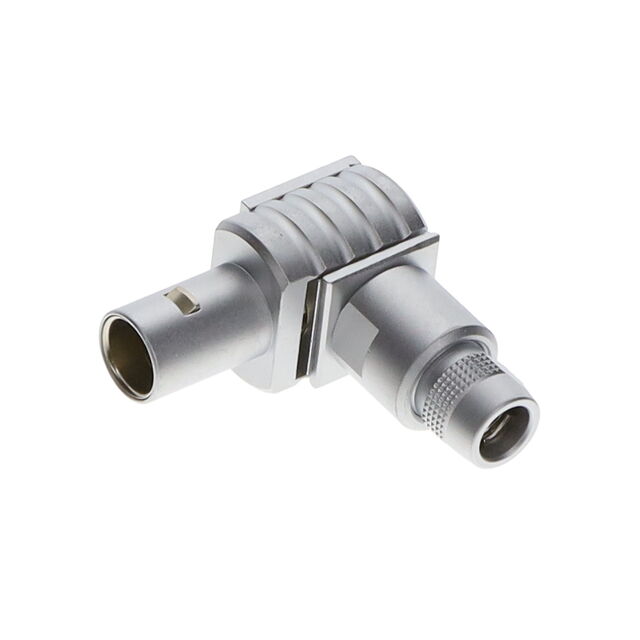

LEMO FLA.0S.302.CLAC42			-55 C	250 °C							Free Hanging (In-Line) Right Angle			Push-Pull		IP50 - Dust Protected	Plug Female Sockets and Male Pins					10 A	Chrome	Brass	Brass Bronze	UL94 V-0	Polyetheretherketone (PEEK)	Keyed	302	Gold	Backshell	Brass Chrome	Metal	Silver	2	Shielded	4.2 mm	0.165 "	0.126 "	3.2 mm
