300-73 Series

Catalog

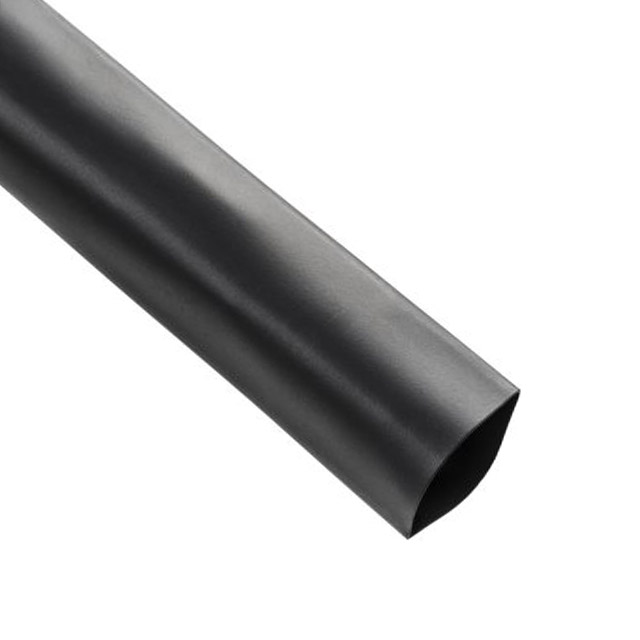

BLACK HEATSHRINK TUBING

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Length	Shrink Temperature	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Recovered Wall Thickness	Recovered Wall Thickness	Color	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]
HELLERMANNTYTON 300-73602	-55 C	125 °C	1	2	304.8 m	1000 ft	100 °C	Flame Retardant Fluid Resistant Solvent Resistant	2.36 mm	0.093 "	Polyolefin (PO) Irradiated	Tubing Flexible	0.049 "	1.24 mm	0.46 mm	0.018 "	Black
HELLERMANNTYTON 300-73611	-55 C	125 °C	1	2			100 °C	Flame Retardant Fluid Resistant Solvent Resistant	50.8 mm	2 in	Polyolefin (PO) Irradiated	Tubing Flexible	1 in	25.4 mm	1.14 mm	0.045 in	Black	100 ft	30.5 m
HELLERMANNTYTON 300-73090	-55 C	125 °C	1	2	60 m	196.8 '	100 °C	Flame Retardant Fluid Resistant Solvent Resistant	19.1 mm	0.752 in	Polyolefin (PO) Irradiated	Tubing Flexible	0.375 in		0.79 mm	0.031 in	Black			9.53 mm
HELLERMANNTYTON 300-73050	-55 C	125 °C	1	2			100 °C	Flame Retardant Fluid Resistant Solvent Resistant	4.75 mm	0.187 "	Polyolefin (PO) Irradiated	Tubing Flexible	0.095 "		0.5 mm	0.019 in	Black	984.3 ft	300 m	2.41 mm
HELLERMANNTYTON 300-73610	-55 C	125 °C	1	2			100 °C	Flame Retardant Fluid Resistant Solvent Resistant	38.1 mm	1.5 in	Polyolefin (PO) Irradiated	Tubing Flexible	0.752 in		1.02 mm	0.04 in	Black	100 ft	30.5 m	19.1 mm
HELLERMANNTYTON 300-73609	-55 C	125 °C	1	2	61 m	200 ft	100 °C	Flame Retardant Fluid Resistant Solvent Resistant	25.4 mm	1 in	Polyolefin (PO) Irradiated	Tubing Flexible	0.5 "		0.9 mm	0.036 in	Black			12.7 mm
HELLERMANNTYTON 300-73070	-55 C	125 °C	1	2			100 °C	Flame Retardant Fluid Resistant Solvent Resistant	9.5 mm	0.374 "	Polyolefin (PO) Irradiated	Tubing Flexible	0.187 in		0.56 mm	0.022 in	Black	328.1 ft	100 m	4.75 mm
HELLERMANNTYTON 300-73060	-55 C	125 °C	1	2			100 °C	Flame Retardant Fluid Resistant Solvent Resistant	0.25 "		Polyolefin (PO) Irradiated	Tubing Flexible	0.125 in		0.56 mm	0.022 in	Black	984.3 ft	300 m	3.18 mm	6.35 mm
HELLERMANNTYTON 300-73040	-55 C	125 °C	1	2			100 °C	Flame Retardant Fluid Resistant Solvent Resistant	3.18 mm	0.125 in	Polyolefin (PO) Irradiated	Tubing Flexible	0.062 in		0.46 mm	0.018 "	Black	984.3 ft	300 m	1.57 mm
HELLERMANNTYTON 300-73608	-55 C	125 °C	1	2	61 m	200 ft	100 °C	Flame Retardant Fluid Resistant Solvent Resistant	19.1 mm	0.752 in	Polyolefin (PO) Irradiated	Tubing Flexible	0.375 in		0.79 mm	0.031 in	Black			9.53 mm
