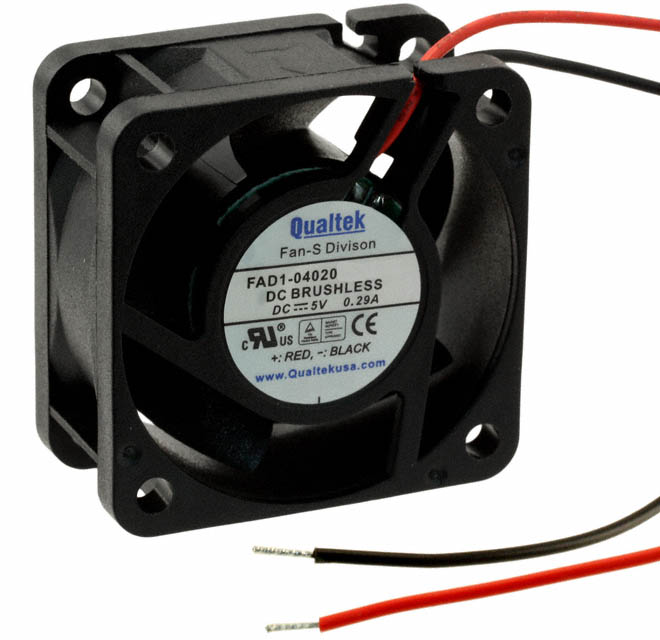

FAD1-04020 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 40X20MM 12VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Static Pressure	Static Pressure	Termination	Bearing Type	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Voltage - Rated	RPM	Weight	Weight	Width [y]	Fan Type	Power (Watts)	Noise
Qualtek FAD1-04020CHHW11	Plastic	100 mA	10.8 VDC	13.2 VDC	Plastic	0.28 in H2O	69.7 Pa	2 Wire Leads	Hydrodynamic	0.246 m³/min	8.8 CFM	70 °C	-10 °C	40 mm	40 mm	CE cURus TUV	12 VDC	7800 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	1.2 W	36 dB
Qualtek FAD1-04020BSMW11	Plastic		4.5 V	5.5 V	Plastic	0.2 in H2O	49.8 Pa	2 Wire Leads	Sleeve	0.216 m³/min	7.7 CFM	60 °C	-10 °C	40 mm	40 mm	CE cURus TUV	5 V	6900 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	0.8 W	33 dB(A)
Qualtek FAD1-04020BSAW11						0.08 in H2O	19.9 Pa	2 Wire Leads	Sleeve	0.126 m³/min	4.5 CFM	60 °C	-10 °C	40 mm	40 mm	CE cURus TUV	5 V	4200 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	450 mW	17.5 dB(A)
Qualtek FAD1-04020CHAW11	Plastic	40 mA	10.8 VDC	13.2 VDC	Plastic	0.08 in H2O	19.9 Pa	2 Wire Leads	Hydrodynamic	0.126 m³/min	4.5 CFM	70 °C	-10 °C	40 mm	40 mm	CE cURus TUV	12 VDC	4200 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	0.48 W	17.5 dB(A)
Qualtek FAD1-04020CSJW11	Plastic	140 mA	10.8 VDC	13.2 VDC	Plastic	0.32 in H2O	79.7 Pa	2 Wire Leads	Sleeve	0.269 m³/min	9.6 CFM	60 °C	-10 °C	40 mm	40 mm	CE cURus TUV	12 VDC	8500 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	1.68 W	37.5 dB(A)
Qualtek FAD1-04020DBAW11	Plastic	140 mA	21.6 VDC	26.4 VDC	Plastic	0.08 in H2O	19.9 Pa	2 Wire Leads	Ball	0.126 m³/min	4.5 CFM	70 °C	-10 °C	40 mm	40 mm	CE cURus TUV	24 VDC	4200 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	1.68 W	17.5 dB(A)
Qualtek FAD1-04020DBHW11	Plastic	70 mA	21.6 VDC	26.4 VDC	Plastic	0.28 in H2O	69.7 Pa	2 Wire Leads	Ball	0.246 m³/min	8.8 CFM	70 °C	-10 °C	40 mm	40 mm	CE cURus TUV	24 VDC	7800 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	1.68 W	36 dB

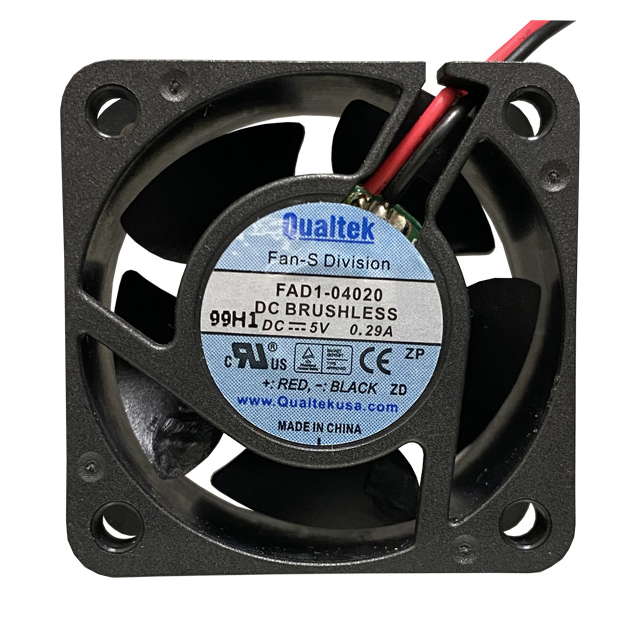

Qualtek FAD1-04020CBMW11	Plastic		10.8 VDC	13.2 VDC	Plastic	0.2 in H2O	49.8 Pa	2 Wire Leads	Ball	0.216 m³/min	7.7 CFM	70 °C	-10 °C	40 mm	40 mm	CE cURus TUV	12 VDC	6900 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	960 mW	33 dB(A)
Qualtek FAD1-04020CSMW11	Plastic		10.8 VDC	13.2 VDC	Plastic	0.2 in H2O	49.8 Pa	2 Wire Leads	Sleeve	0.216 m³/min	7.7 CFM	60 °C	-10 °C	40 mm	40 mm	CE cURus TUV	12 VDC	6900 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	960 mW	33 dB(A)
Qualtek FAD1-04020DSAW11	Plastic	140 mA	21.6 VDC	26.4 VDC	Plastic	0.08 in H2O	19.9 Pa	2 Wire Leads	Sleeve	0.126 m³/min	4.5 CFM	60 °C	-10 °C	40 mm	40 mm	CE cURus TUV	24 VDC	4200 RPM	0.062 lb	28.12 g	20 mm	Tubeaxial	1.68 W	17.5 dB(A)
