EAHP5630 Series

Catalog

LED COOL WHITE 6500K 2PLCC

Part	Thermal Resistance of Package	Mounting Type	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Flux @ 25°C, Current - Test	Viewing Angle	CCT (K)	Current - Max [Max]	Color	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test
Everlight Electronics Co Ltd EAHP5630WA0	21 °C/W	Surface Mount	140 lm/W	3.15 V	2-PLCC	66 lm	120 °	6500 K	180 mA	Cool White	2212 (5630 Metric)	0.03 "	0.75 mm	150 mA	80	5.6 mm	0.118 in	3 mm	0.22 in

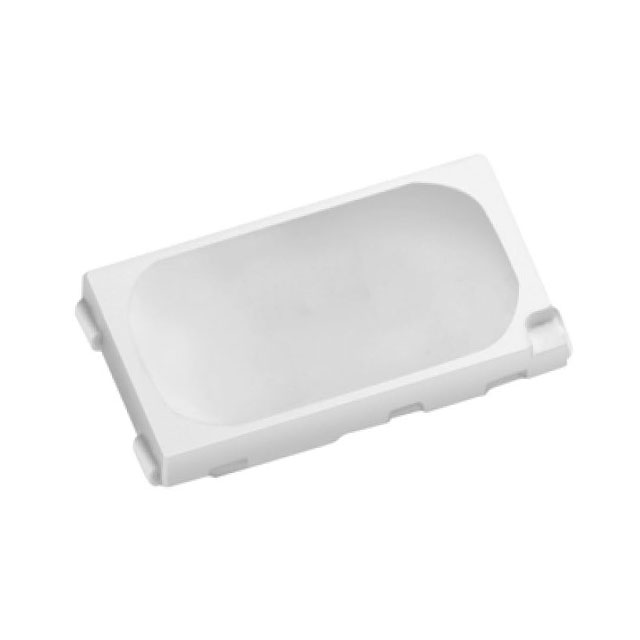

Everlight Electronics Co Ltd EAHP5630RA0		Surface Mount		2.2 V	2-PLCC		120 °		150 mA	Red	2212 (5630 Metric)	0.03 "	0.75 mm	150 mA		5.6 mm	0.118 in	3 mm	0.22 in	25 °C
Everlight Electronics Co Ltd EAHP5630WA6	21 °C/W	Surface Mount	116 lm/W	3.15 V	2-PLCC	55 lm	120 °	2700 K	180 mA	Warm White	2212 (5630 Metric)	0.03 "	0.75 mm	150 mA	80	5.6 mm	0.118 in	3 mm	0.22 in
