745201 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

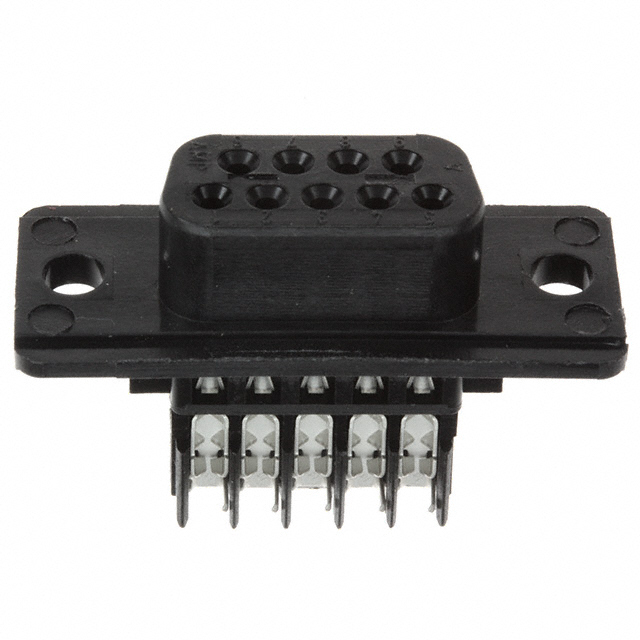

CONN D-SUB RCPT 9POS IDC
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Voltage Rating | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Material Flammability Rating | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Termination | Connector Type | Contact Finish | Mounting Type | Number of Positions | Current Rating (Amps) | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 26 AWG | 22 AWG | 250 V | Black | Phosphor Bronze | -55 C | 105 ░C | Thermoplastic | UL94 V-0 | Signal | 1 | DE E | Housing/Shell (Unthreaded) | Discrete Wire IDC | Receptacle Female Sockets | Gold | Free Hanging (In-Line) | 9 | Varies by Wire Gauge | 2 | 30 Áin | 0.76 Ám | D-Sub |
