147728 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

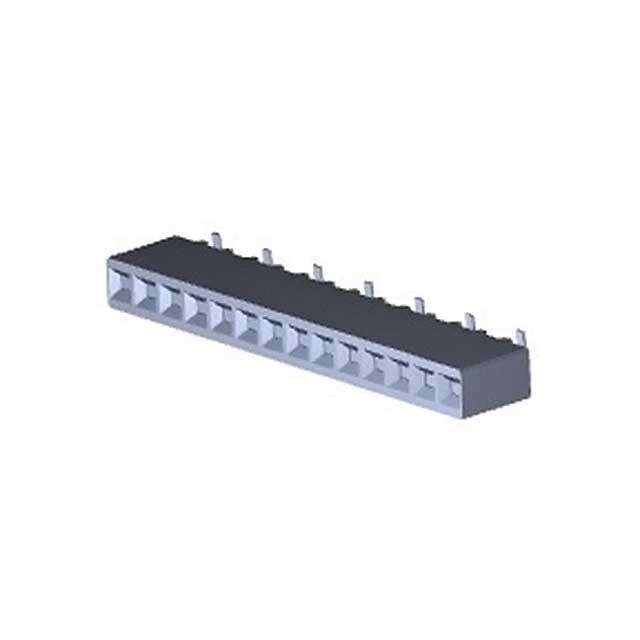

14 MODIV VRT SR SFMNT 10AU
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Mounting Type | Features | Insulation Color | Fastening Type | Contact Finish - Post | Contact Shape | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Insulation Material | Contact Type | Number of Positions | Number of Positions Loaded | Contact Finish - Mating | Style | Material Flammability Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 10 çin | 0.25 çm | 125 °C | -65 ░C | Receptacle Bottom or Top Entry | Solder | 150 Áin | 3.81 Ám | 1 | Surface Mount | Pick and Place | Black | Push-Pull | Tin | Square | 2 A | 0.1 in | 2.54 mm | 6.73 mm | 0.265 in | Polyester Glass Filled | Female Socket | 14 | All | Gold | Board to Board Cable | UL94 V-0 | Phosphor Bronze |
