333-042 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Contact Finish	Contact Material	Number of Rows [custom]	Mounting Type	Card Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Gender	Color	Number of Positions/Bay/Row [custom]	Read Out	Pitch	Pitch	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Termination Rows	Number of Rows	Number of Positions/Bay/Row	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 333-042-520-808	Polyester Thermoplastic	2	42	Gold	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening	Female	Green	21	Dual	3.96 mm	0.156 in	Solder	0.25 Ám	10 Áin	Cantilever

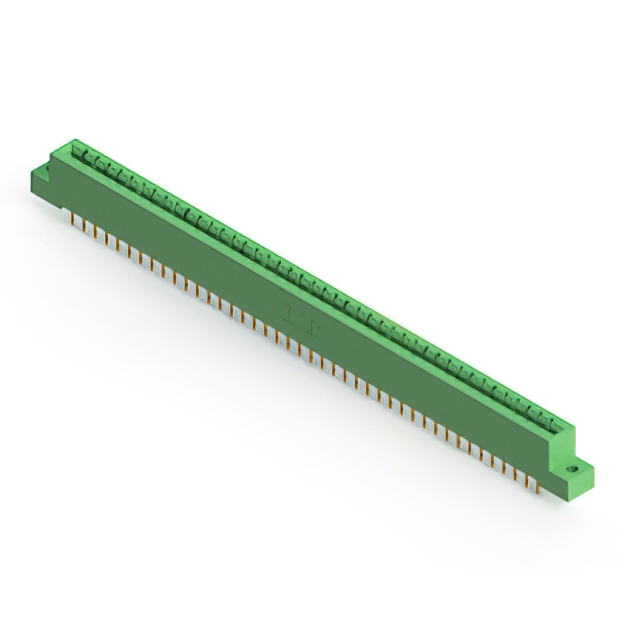

EDAC Inc. 333-042-558-102	Polyester Thermoplastic		42	Gold	Copper Alloy		Right Angle Through Hole	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	Female	Green		Single	3.96 mm	0.156 in	Wire Wrap	0.25 Ám	10 Áin	Cantilever	1	1	42	3.25 mm	0.128 "

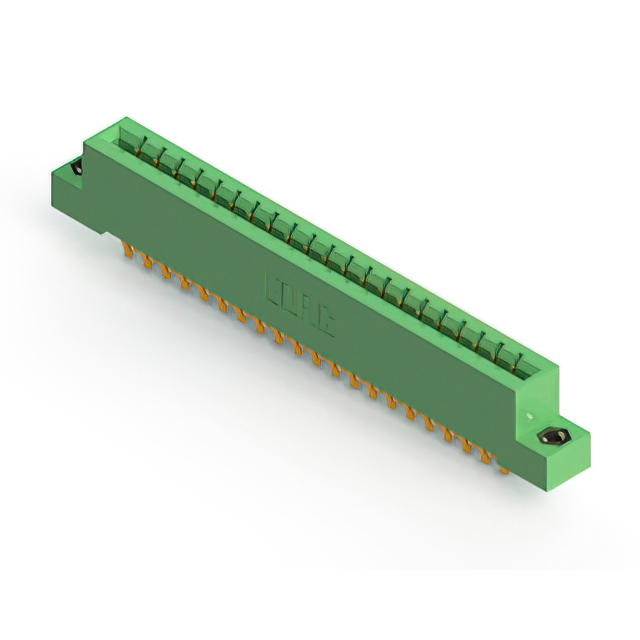

EDAC Inc. 333-042-560-208	Polyester Thermoplastic	2	42	Gold	Copper Alloy	2	Board Edge Straddle Mount	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Female	Green	21	Dual	3.96 mm	0.156 in	Solder	0.25 Ám	10 Áin	Cantilever						Card Extender
EDAC Inc. 333-042-544-201	Polyester Thermoplastic	2	42	Gold	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C		Female	Green	21	Dual	3.96 mm	0.156 in	Wire Wrap	0.25 Ám	10 Áin	Cantilever
EDAC Inc. 333-042-524-604	Polyester Thermoplastic		42	Gold	Copper Alloy		Through Hole	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C		Female	Green		Single	3.96 mm	0.156 in	Solder	0.25 Ám	10 Áin	Cantilever	1	1	42	3.96 mm	0.156 "
EDAC Inc. 333-042-558-107	Polyester Thermoplastic		42	Gold	Copper Alloy		Right Angle Through Hole	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	Female	Green		Single	3.96 mm	0.156 in	Wire Wrap	0.25 Ám	10 Áin	Cantilever	1	1	42

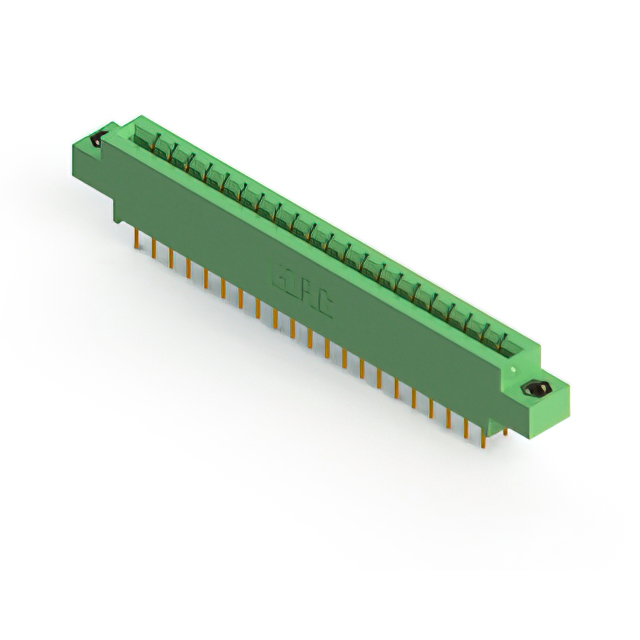

EDAC Inc. 333-042-542-808	Polyester Thermoplastic	2	42	Gold	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening	Female	Green	21	Dual	3.96 mm	0.156 in	Wire Wrap	0.25 Ám	10 Áin	Cantilever

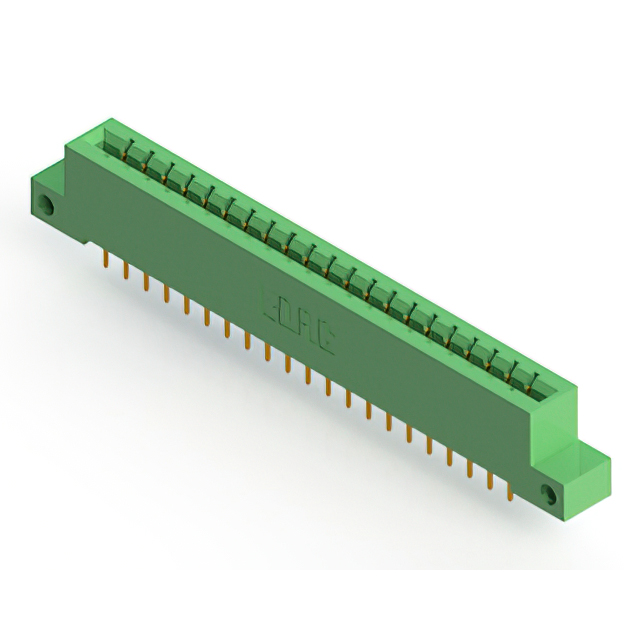

EDAC Inc. 333-042-521-212	Polyester Thermoplastic	2	42	Gold	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Flush Mount Side Opening Unthreaded	Female	Green	21	Dual	3.96 mm	0.156 in	Solder	0.25 Ám	10 Áin	Cantilever				3.25 mm	0.128 "
EDAC Inc. 333-042-559-108	Polyester Thermoplastic		42	Gold	Copper Alloy		Right Angle Through Hole	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Female	Green		Single	3.96 mm	0.156 in	Solder	0.25 Ám	10 Áin	Cantilever	1	1	42

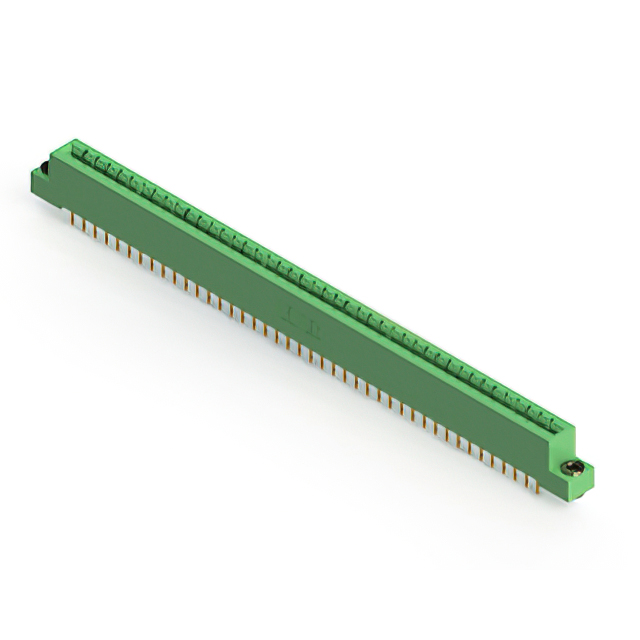

EDAC Inc. 333-042-558-103	Polyester Thermoplastic		42	Gold	Copper Alloy		Right Angle Through Hole	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Floating Bobbin Flush Mount	Female	Green		Single	3.96 mm	0.156 in	Wire Wrap	0.25 Ám	10 Áin	Cantilever	1	1	42	2.95 mm	0.116 "
