INA280-Q1 Series

2.7-V to 120-V, 1.1-MHz, high-precision current sense amplifier in small (SC-70) package

Catalog

2.7-V to 120-V, 1.1-MHz, high-precision current sense amplifier in small (SC-70) package

Part	Slew Rate	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Amplifier Type	Voltage - Supply Span (Max) [Max]	Gain Bandwidth Product	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Mounting Type	Current - Input Bias	Current - Supply	Number of Circuits	Utilized IC / Part	Supplied Contents	Output Type	Board Type	-3db Bandwidth	Current - Supply (Main IC)
Texas Instruments INA280A5IDCKR	2 V/µs	5-TSSOP SC-70-5 SOT-353	-40 °C	125 °C	SC-70-5	Current Sense	20 V	800 kHz	15 µV	2.7 V	Surface Mount	20 çA	370 µA	1
Texas Instruments INA280A2QDCKRQ1	2 V/µs	5-TSSOP SC-70-5 SOT-353	-40 °C	125 °C	SC-70-5	Current Sense	20 V	1.1 MHz	15 µV	2.7 V	Surface Mount	20 çA	370 µA	1
Texas Instruments INA280A5QDCKRQ1	2 V/µs	5-TSSOP SC-70-5 SOT-353	-40 °C	125 °C	SC-70-5	Current Sense	20 V	1.1 MHz	15 µV	2.7 V	Surface Mount	20 çA	370 µA	1
Texas Instruments INA280A3IDCKR	2 V/µs	5-TSSOP SC-70-5 SOT-353	-40 °C	125 °C	SC-70-5	Current Sense	20 V	900 kHz	15 µV	2.7 V	Surface Mount	20 çA	370 µA	1
Texas Instruments INA280A1QDCKRQ1	2 V/µs	5-TSSOP SC-70-5 SOT-353	-40 °C	125 °C	SC-70-5	Current Sense	20 V	1.1 MHz	15 µV	2.7 V	Surface Mount	20 çA	370 µA	1

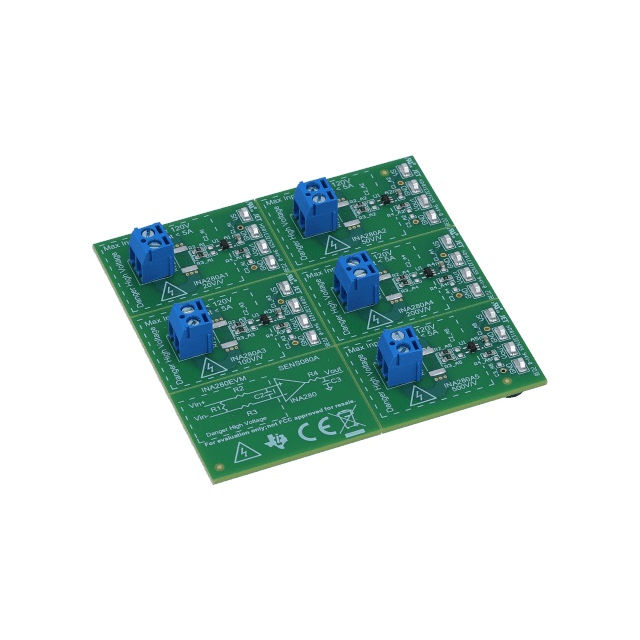

Texas Instruments INA280EVM	2 V/µs					Differential									INA280	Board(s)	Single-Ended	Fully Populated	1.1 MHz	370 µA
Texas Instruments INA280A1IDCKR	2 V/µs	5-TSSOP SC-70-5 SOT-353	-40 °C	125 °C	SC-70-5	Current Sense	20 V		15 µV	2.7 V	Surface Mount	20 çA	370 µA	1					1.1 MHz

Catalog

2.7-V to 120-V, 1.1-MHz, high-precision current sense amplifier in small (SC-70) package

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40 °C to +125 °C, TAFunctional Safety-CapableDocumentation available to aid functional safety system designWide common-mode voltage:Operational voltage: 2.7 V to 120 VSurvival voltage: −20 V to +122 VExcellent CMRR:120-dB DC (minimum)85-dB AC at 50 kHzAccuracyGain:Gain error: ±0.5% (maximum)Gain drift: ±20 ppm/°C (maximum)Offset:Offset voltage: ±150 µV (maximum)Offset drift: ±1 µV/°C (maximum)Available gains:INA280A1-Q1: 20 V/VINA280A2-Q1: 50 V/VINA280A3-Q1: 100 V/VINA280A4-Q1: 200 V/VINA280A5-Q1: 500 V/VHigh bandwidth: 1.1 MHzSlew rate: 2 V/µsQuiescent current: 370 µAAEC-Q100 qualified for automotive applications:Temperature grade 1: –40 °C to +125 °C, TAFunctional Safety-CapableDocumentation available to aid functional safety system designWide common-mode voltage:Operational voltage: 2.7 V to 120 VSurvival voltage: −20 V to +122 VExcellent CMRR:120-dB DC (minimum)85-dB AC at 50 kHzAccuracyGain:Gain error: ±0.5% (maximum)Gain drift: ±20 ppm/°C (maximum)Offset:Offset voltage: ±150 µV (maximum)Offset drift: ±1 µV/°C (maximum)Available gains:INA280A1-Q1: 20 V/VINA280A2-Q1: 50 V/VINA280A3-Q1: 100 V/VINA280A4-Q1: 200 V/VINA280A5-Q1: 500 V/VHigh bandwidth: 1.1 MHzSlew rate: 2 V/µsQuiescent current: 370 µA

Description

The INA280-Q1 is a current sense amplifier that can measure voltage drops across shunt resistors over a wide common-mode range from 2.7 V to 120 V. It is in a highly space-efficient SC-70 package with a PCB footprint of only 2.0 mm × 2.1 mm. The current measurement accuracy is achieved thanks to the combination of an ultra-low offset voltage of ±150 µV (maximum), a small gain error of ±0.5% (maximum), and a high DC CMRR of 140 dB (typical). The INA280-Q1 is not only designed for DC current measurement, but also for high-speed applications (like fast overcurrent protection, for example) with a high bandwidth of 1.1 MHz (at gain of 20 V/V) and an 85-dB AC CMRR (at 50 kHz). The INA280-Q1 operates from a single 2.7-V to 20-V supply and draws a 370-µA supply current (typical). The INA280-Q1 available with five gain options: 20 V/V, 50 V/V, 100 V/V, 200 V/V, and 500 V/V. The low offset and drift of the INA280-Q1 enables accurate current sensing over the extended operating temperature range of −40 °C to +125 °C. The INA280-Q1 is a current sense amplifier that can measure voltage drops across shunt resistors over a wide common-mode range from 2.7 V to 120 V. It is in a highly space-efficient SC-70 package with a PCB footprint of only 2.0 mm × 2.1 mm. The current measurement accuracy is achieved thanks to the combination of an ultra-low offset voltage of ±150 µV (maximum), a small gain error of ±0.5% (maximum), and a high DC CMRR of 140 dB (typical). The INA280-Q1 is not only designed for DC current measurement, but also for high-speed applications (like fast overcurrent protection, for example) with a high bandwidth of 1.1 MHz (at gain of 20 V/V) and an 85-dB AC CMRR (at 50 kHz). The INA280-Q1 operates from a single 2.7-V to 20-V supply and draws a 370-µA supply current (typical). The INA280-Q1 available with five gain options: 20 V/V, 50 V/V, 100 V/V, 200 V/V, and 500 V/V. The low offset and drift of the INA280-Q1 enables accurate current sensing over the extended operating temperature range of −40 °C to +125 °C.
