BQ24083 Series

1-cell, 1-A, Li-ion battery charger w/ 4.06V charge voltage

Catalog

1-cell, 1-A, Li-ion battery charger w/ 4.06V charge voltage

Part	Supplier Device Package	Package / Case	Number of Cells	Charge Current - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Programmable Features	Voltage - Supply (Max) [Max]	Battery Pack Voltage	Current - Charging	Battery Chemistry	Primary Attributes	Supplied Contents	Secondary Attributes	Embedded	Type	Utilized IC / Part	Function
Texas Instruments BQ24083DRCR	10-VSON (3x3)	10-VFDFN Exposed Pad	1	1 A	0 °C	125 ¯C	Surface Mount	Current Timer	6.5 V	4.2 V	Constant - Programmable	Lithium Ion/Polymer

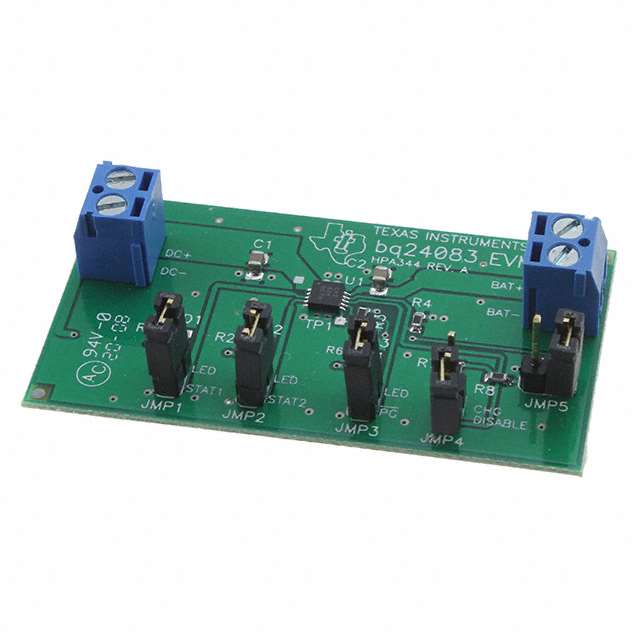

Texas Instruments BQ24083EVM													Li-Ion / Li-Pol (1 Cell)	Board(s)	Charge Timer		Power Management	BQ24083	Battery Charger

Catalog

1-cell, 1-A, Li-ion battery charger w/ 4.06V charge voltage

Key Features

• Pin Select Battery Voltage (4.06V/4.2V)Integrated Power FET and Current Sensor for Up to 1A Charge Applications From AC AdapterPrecharge Conditioning With Safety TimerCharge and Power-Good Status OutputAutomatic Sleep Mode for Low Power ConsumptionIntegrated Charge-Current MonitorFixed 7-Hour Fast Charge Safety TimerIdeal for Low-Dropout Charger Designs for Single-Cell Li-Ion or Li-Pol Packs in Space-Limited Portable ApplicationsSmall 3-mm × 3-mm SON PackageAPPLICATIONSPDAs, MP3 PlayersDigital CamerasInternet AppliancesSmartphonesPin Select Battery Voltage (4.06V/4.2V)Integrated Power FET and Current Sensor for Up to 1A Charge Applications From AC AdapterPrecharge Conditioning With Safety TimerCharge and Power-Good Status OutputAutomatic Sleep Mode for Low Power ConsumptionIntegrated Charge-Current MonitorFixed 7-Hour Fast Charge Safety TimerIdeal for Low-Dropout Charger Designs for Single-Cell Li-Ion or Li-Pol Packs in Space-Limited Portable ApplicationsSmall 3-mm × 3-mm SON PackageAPPLICATIONSPDAs, MP3 PlayersDigital CamerasInternet AppliancesSmartphones

Description

The bq24083 is highly integrated and flexible Li-Ion linear charge device targeted at space-limited charger applications. It offers an integrated power FET and current sensor, high-accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device. An external resistor sets the magnitude of the charge current. The bq24083 has an option of two output battery charge voltages: 4.06 V and 4.2 V. The device charges the battery in three phases: conditioning, constant current, and constant voltage. Charge is terminated based on minimum current. An internal charge timer provides a backup safety for charge termination. The device automatically restarts the charge if the battery voltage falls below an internal threshold. The device automatically enters sleep mode when the ac adapter is removed. The bq24083 is highly integrated and flexible Li-Ion linear charge device targeted at space-limited charger applications. It offers an integrated power FET and current sensor, high-accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device. An external resistor sets the magnitude of the charge current. The bq24083 has an option of two output battery charge voltages: 4.06 V and 4.2 V. The device charges the battery in three phases: conditioning, constant current, and constant voltage. Charge is terminated based on minimum current. An internal charge timer provides a backup safety for charge termination. The device automatically restarts the charge if the battery voltage falls below an internal threshold. The device automatically enters sleep mode when the ac adapter is removed.
