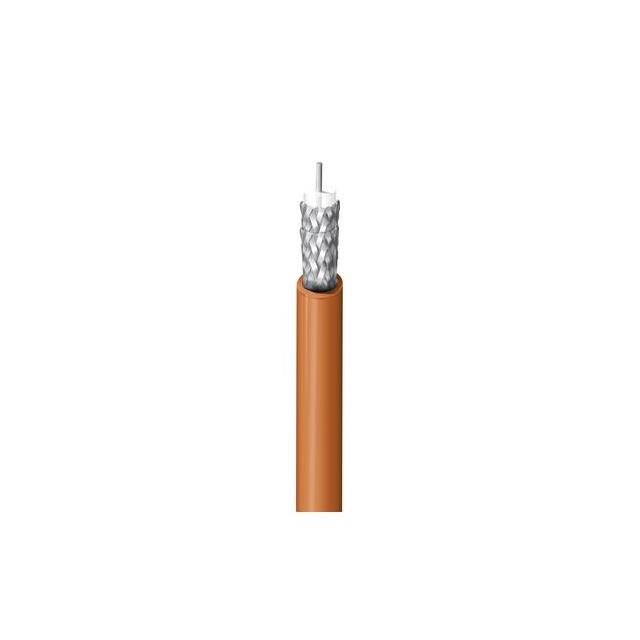

84142 Series
Manufacturer: Belden Inc.
Beta
⌘K
#18H RG142 COAX
| Part | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Dielectric Material | VoP, Velocity of Propagation | Impedance | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Usage | Jacket (Insulation) Material | Conductor Strand | Cable Type | Cable Group | Shield Type | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Covered Silver Coated Steel | -70 °C | 200 °C | Copper Silver Coated | 2.95 mm | 0.116 in | 95 % | Polytetrafluoroethylene (PTFE) | 70 | 50 Ohms | 0.195 " | 4.95 mm | Brown | Aerospace | Fluorinated Ethylene-Propylene (FEP) | Solid | Coaxial - Plenum | RG-142 | Double Braid | 19 AWG | 152.4 m | 500 ft |
