TPS92560 Series

Simple LED driver for MR16 and AR111 Applications

Catalog

Simple LED driver for MR16 and AR111 Applications

Part	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Utilized IC / Part	Supplied Contents	Supplier Device Package	Package / Case	Package / Case	Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Min) [Min]	Mounting Type	Topology	Voltage - Supply (Max) [Max]	Number of Outputs

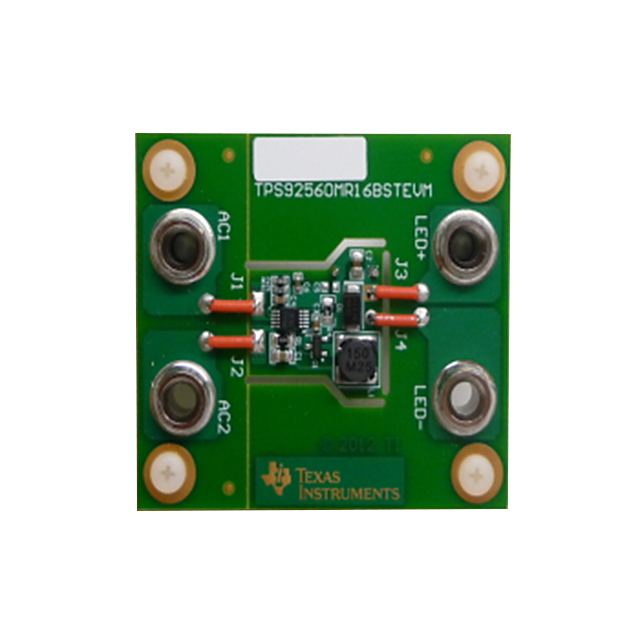

Texas Instruments TPS92560MR16BSTEVM	Non-Isolated	1	3 V 6 VAC	14 VAC 18 V	20 V	TPS92560	Board(s)
Texas Instruments TPS92560DGQR/NOPB								10-HVSSOP	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	AC DC Offline Switcher	Lighting	-40 °C	125 ¯C	6.5 V	Surface Mount	SEPIC Step-Up (Boost)	42 V	1

Catalog

Simple LED driver for MR16 and AR111 Applications

Key Features

• Controlled peak input current to prevent over-stressing of the electronic transformerAllows Either Step-Up or Step-Up/Down OperationCompatible to Generic Electronic TransformersCompatible to Magnetic Transformers and DCPower SuppliesIntegrated Active Low-Side Input RectifiersCompact and Simple Circuit>85% Dfficiency (12-VDC Input)Power Factor > 0.9 (Full Load With AC input)Hysteretic Control SchemeOutput Overvoltage ProtectionOvertemperature Shutdown10-pin Thermally Enhanced Very-Thin Fine PitchSmall-Outline PackageControlled peak input current to prevent over-stressing of the electronic transformerAllows Either Step-Up or Step-Up/Down OperationCompatible to Generic Electronic TransformersCompatible to Magnetic Transformers and DCPower SuppliesIntegrated Active Low-Side Input RectifiersCompact and Simple Circuit>85% Dfficiency (12-VDC Input)Power Factor > 0.9 (Full Load With AC input)Hysteretic Control SchemeOutput Overvoltage ProtectionOvertemperature Shutdown10-pin Thermally Enhanced Very-Thin Fine PitchSmall-Outline Package

Description

The TPS92560 is a simple LED driver designed to drive high-power LEDs by drawing constant current from the power source. The device is ideal for MR16 and AR111 applications, which require good compatibility to DC and AC voltages and electronic transformers. The hysteretic control scheme does not need control loop compensation while providing the benefits of fast transient response and high power factor. The patent pending feedback control method allows the output power to be determined by the number of LED used without component change. The TPS92560 supports both boost and SEPIC configurations for the use of different LED modules. The TPS92560 is a simple LED driver designed to drive high-power LEDs by drawing constant current from the power source. The device is ideal for MR16 and AR111 applications, which require good compatibility to DC and AC voltages and electronic transformers. The hysteretic control scheme does not need control loop compensation while providing the benefits of fast transient response and high power factor. The patent pending feedback control method allows the output power to be determined by the number of LED used without component change. The TPS92560 supports both boost and SEPIC configurations for the use of different LED modules.
