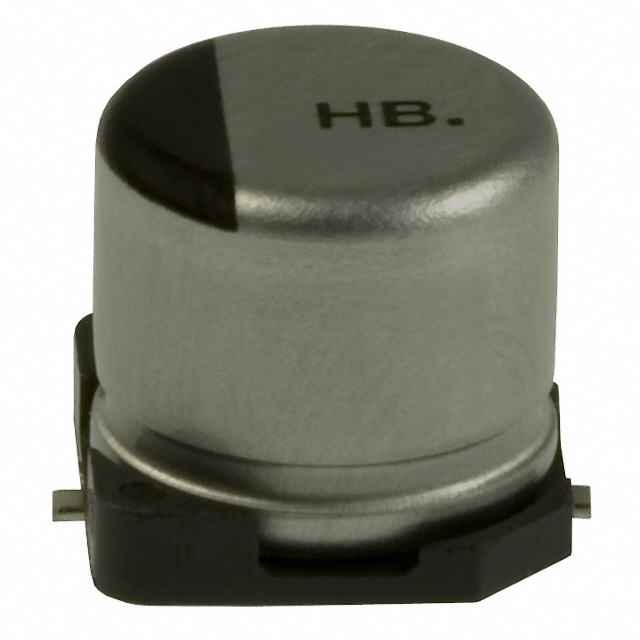

EEV-HB Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP ALUM 10UF 20% 35V SMD
| Part | Tolerance | Lifetime @ Temp. | Ratings | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Applications | Ripple Current @ Low Frequency | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Voltage - Rated | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 20 % | 2000 Hrs | AEC-Q200 | Surface Mount | 5 mm | 0.197 " | Automotive | 28 mA | 5.3 mm | 0.209 in | 5.3 mm | 0.209 in | 35 V | 5.8 mm | 0.228 " | 10 µF | -40 °C | 105 ░C | Radial Can - SMD | Polar |
 Panasonic Industrial Automation Sales | 20 % | 2000 Hrs | AEC-Q200 | Surface Mount | 6.3 mm | 0.248 in | Automotive | 65 mA | 6.6 mm | 0.26 in | 6.6 mm | 0.26 in | 25 VDC | 5.8 mm | 0.228 " | 33 ÁF | -40 °C | 105 ░C | Radial Can - SMD | Polar |
