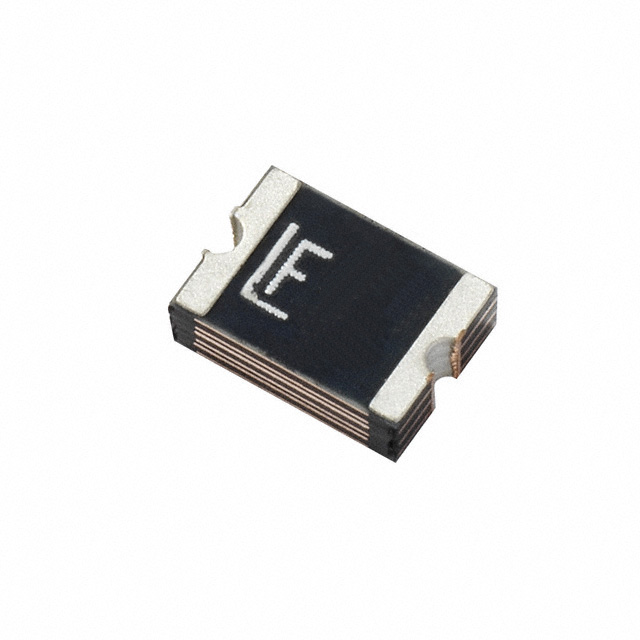

1812L110/24 Series

PTC 24V POLYFUSE 1812 HALOGEN-FREE 1.10A

Catalog

PTC 24V POLYFUSE 1812 HALOGEN-FREE 1.10A

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Max [Max]	Package / Case	Package / Case	Time to Trip	Approval Agency	Current - Trip (It)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Current - Hold (Ih) (Max) [Max]	Resistance - Post Trip (R1) (Max)	Resistance - Initial (Ri) (Min) [Min]
Littelfuse/Commercial Vehicle Products 1812L110/24DR	0.042 in	1.07 mm	24 V	1812 Concave	4532 Metric	500 ms	cURus TUV	1.95 A	85 °C	-40 °C	Polymeric	20 A	4.55 mm	3.24 mm	0.179 in	0.128 in	Surface Mount	1.1 A	200 mOhms	60 mOhms

PTC 24V POLYFUSE 1812 HALOGEN-FREE 1.10A

• RoHS compliant, lead-free and halogen-free

• Fast response to fault currents

• Compact design saves board space

• Low resistance

• Low-profile

• Compatible with high temperature solders

The 1812L series device provides surface mount overcurrent protection for applications where resettable protection is desired.
