CA04J Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH ROCKER SPST 15A 125V
| Part | Approval Agency | Actuator Type | Current Rating (Amps) | Actuator Marking | Features | Switch Function | Color - Actuator/Cap | Voltage Rating - AC | Illumination Voltage (Nominal) | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Electrical Life | Termination Style | Illumination Type, Color | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

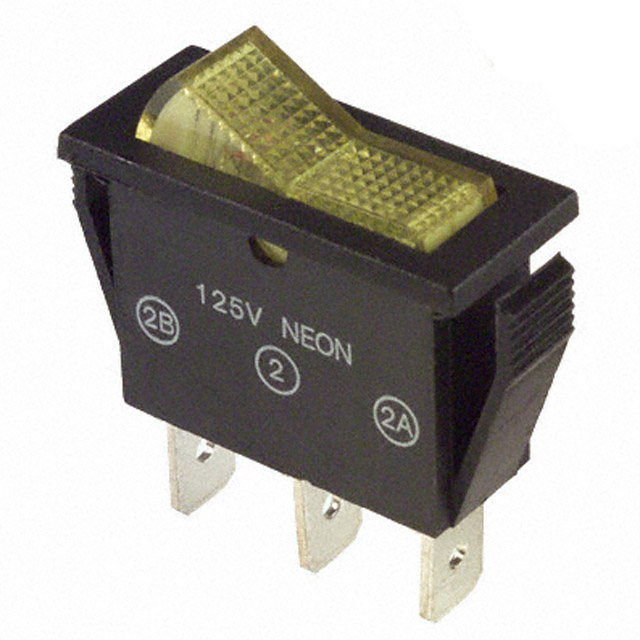

 Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Standard V) - Illuminated | 15 A | No Marking | Positive Detent | On-Off | Yellow | 125 V | 125 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Neon Yellow | SPST |
Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Curved) - Illuminated | 15 A | O - | Positive Detent | On-Off | Green | 125 V | 125 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Green Neon | SPST |

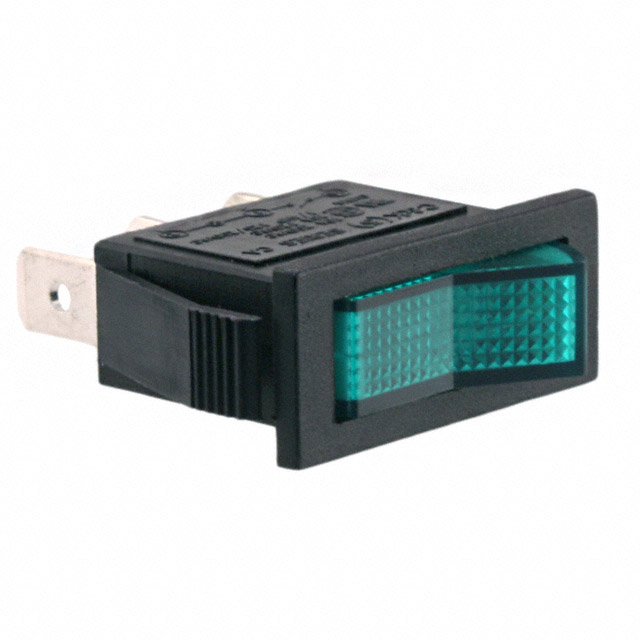

 Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Standard V) - Illuminated | 15 A | No Marking | Positive Detent | On-Off | Green | 125 V | 125 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Green Neon | SPST |

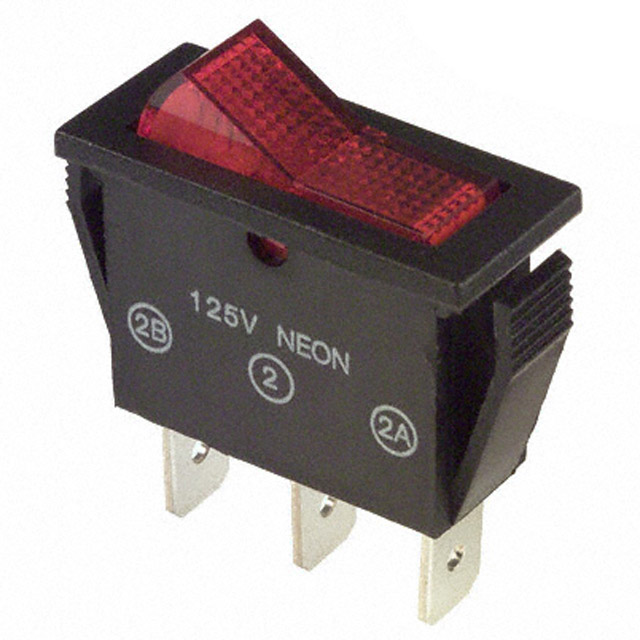

 Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Standard V) - Illuminated | 15 A | No Marking | Positive Detent | On-Off | Red | 125 V | 125 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Neon Red | SPST |
Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Standard V) - Illuminated | 15 A | O I | Positive Detent | On-Off | Green | 125 V | 250 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Green Neon | SPST |
Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Curved) - Illuminated | 15 A | O I | Positive Detent | On-Off | Red | 125 V | 125 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Neon Red | SPST |
Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Standard V) - Illuminated | 15 A | O - | Positive Detent | On-Off | Green | 125 V | 250 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Green Neon | SPST |
Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Curved) - Illuminated | 15 A | ON OFF Vertical | Positive Detent | On-Off | Red | 125 V | 125 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Neon Red | SPST |
Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Curved) - Illuminated | 15 A | O - | Positive Detent | On-Off | Red | 125 V | 250 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Neon Red | SPST |
Littelfuse/Commercial Vehicle Products | CSA UL | Concave (Curved) - Illuminated | 15 A | No Marking | Positive Detent | On-Off | Red | 125 V | 125 VAC | 65 °C | -30 ░C | 10.67 mm | 28.2 mm | Panel Mount Snap-In | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Neon Red | SPST |
