BU-P72 Series
Manufacturer: Mueller Electric Co
Beta
⌘K
RF COAX ADAPTER, SMA JACK-JACK, 50 OHM
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Center Contact Material | Style | Convert From (Adapter End) | Center Gender | Conversion Type | Adapter Series | Adapter Type | Mounting Feature | Center Contact Plating | Frequency - Max [Max] | Impedance | Convert To (Adapter End) | Mounting Type | Includes | Fastening Type | Connector Style | Cable Group | Housing Color | Contact Termination | Connector Type | Number of Ports | Shield Termination | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | Gold | -50 °C | 105 ░C | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Straight | Female Socket SMA Jack | Female to Female | Same Series | SMA to SMA | Jack to Jack | Flange | Gold | 18 GHz | 50 Ohms | SMA Jack Female Socket | Panel Mount | ||||||||||
 Mueller Electric Co | Gold | -50 °C | 170 °C | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Gold | 3 GHz | 50 Ohms | Free Hanging (In-Line) | 1 Connector 1 Ferrule | Snap-On | SMB | 188 316 RG-174 | Gold | Crimp | Female Socket Plug | 1 | Crimp | |||||||||

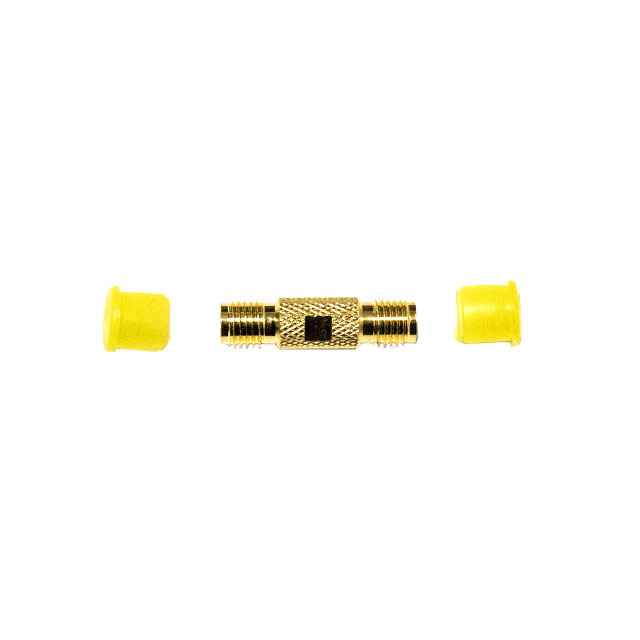

 Mueller Electric Co | Gold | Brass | Beryllium Copper Brass | Straight | Female Socket SMA Jack | Female to Female | Same Series | SMA to SMA | Jack to Jack | Gold | 18 GHz | 50 Ohms | SMA Jack Female Socket | Free Hanging (In-Line) | 500 | |||||||||||||

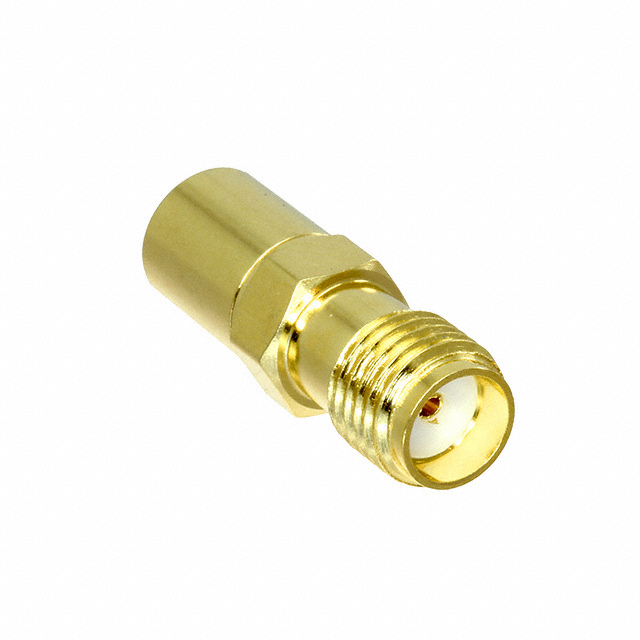

 Mueller Electric Co | Gold | Brass | Straight | Female Socket SMB Plug | Female to Female | Between Series | SMA to SMB | Plug to Jack | Gold | 4 GHz | 50 Ohms | SMA Jack Female Socket | Free Hanging (In-Line) | Snap-On Threaded |
