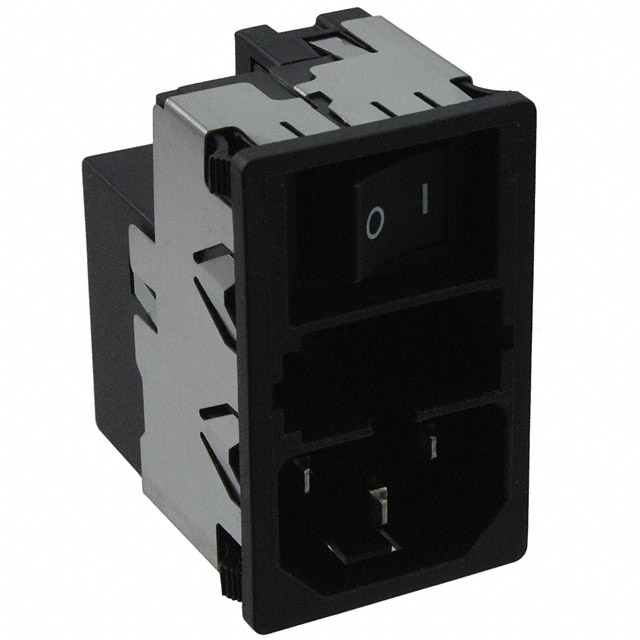

KMF1.1193 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
KMF, MOUNTING: FRONT SIDE, FILTER: MEDICAL VERSION (M5), FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14
| Part | Features | Filter Type | Current Rating - Appliance Inlet | Switch Features | Fuse Holder, Drawer | Ingress Protection | Voltage Rating - Appliance Inlet | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Material Flammability Rating | Termination | Termination | Termination | Connector Type | Current Rating - Filter | Accomodates a Fuse | Approval Agency | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Shielded | Filtered (EMI RFI) - Commercial Medical | 10 A | Switch On-Off | Drawer Sold Separate | IP40 | 250 VAC | Panel Mount Snap-In | 28.8 mm | 47.8 mm | 2.5 mm | 0.039 in | 0.098 in | 1 mm | UL94 V-0 | 0.189 " | 4.8 mm | Quick Connect | Receptacle Male Blades - Module | 10 A | CCC cULus ENEC | IEC 320-C14 |
