M2B15AA Series

Catalog

PROCESS SEALED MINIATURE PUSHBUTTON

Part	Electrical Life	Mechanical Life	Termination Style	Circuit	Mounting Type	Voltage Rating - DC	Features	Voltage Rating - AC	Actuator Marking	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Type	Switch Function	Actuator Type	Current Rating (Amps)
NKK Switches M2B15AA5W03-HC	25000 Steps	200000 Cycles	PC Pin	SPDT	Through Hole	30 V	Process Sealed	125 V	No Marking	Red	85 °C	-30 ░C	Standard	On-Mom	Button Round	1 A
NKK Switches M2B15AA5W03-HA	25000 Steps	200000 Cycles	PC Pin	SPDT	Through Hole	30 V	Process Sealed	125 V	No Marking	Black	85 °C	-30 ░C	Standard	On-Mom	Button Round	1 A

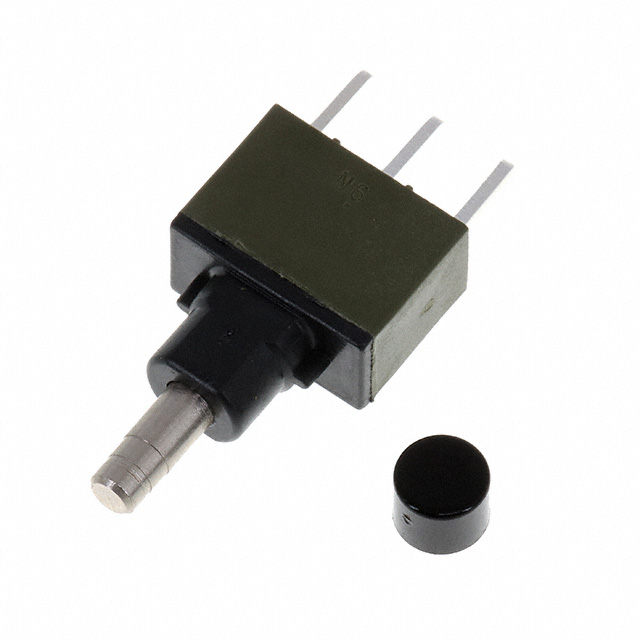

NKK Switches M2B15AA5W03-FA	25000 Steps	200000 Cycles	PC Pin	SPDT	Through Hole	30 V	Process Sealed	125 V	No Marking	Black	85 °C	-30 ░C	Standard	On-Mom	Button Round	1 A
NKK Switches M2B15AA5G30-HC	100000 Cycles	200000 Cycles	PC Pin	SPDT	Right Angle Through Hole	28 V	Process Sealed	28 V	No Marking	Red	85 °C	-30 ░C	Standard	On-Mom	Button Round	0.4 VA

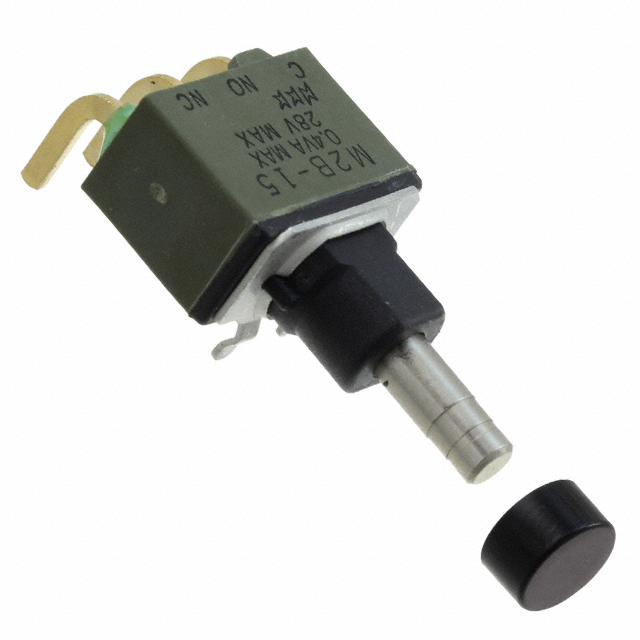

NKK Switches M2B15AA5G30-HA	100000 Cycles	200000 Cycles	PC Pin	SPDT	Right Angle Through Hole	28 V	Process Sealed	28 V	No Marking	Black	85 °C	-30 ░C	Standard	On-Mom	Button Round	0.4 VA

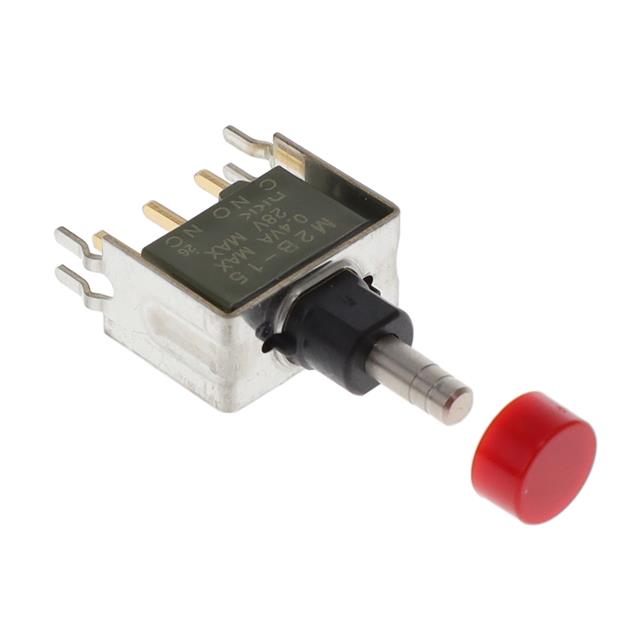

NKK Switches M2B15AA5G13-HC	100000 Cycles	200000 Cycles	PC Pin	SPDT	Through Hole	28 V	Process Sealed	28 V	No Marking	Red	85 °C	-30 ░C	Standard	On-Mom	Button Round	0.4 VA
NKK Switches M2B15AA5G03-FC	100000 Cycles	200000 Cycles	PC Pin	SPDT	Through Hole	28 V	Process Sealed	28 V	No Marking	Red	85 °C	-30 ░C	Standard	On-Mom	Button Round	0.4 VA
NKK Switches M2B15AA5G13-FB	100000 Cycles	200000 Cycles	PC Pin	SPDT	Through Hole	28 V	Process Sealed	28 V	No Marking	White	85 °C	-30 ░C	Standard	On-Mom	Button Round	0.4 VA
NKK Switches M2B15AA5G30	100000 Cycles	200000 Cycles	PC Pin	SPDT	Right Angle Through Hole	28 V	Process Sealed	28 V	No Marking		85 °C	-30 ░C	Standard	On-Mom	Plunger for Cap	0.4 VA

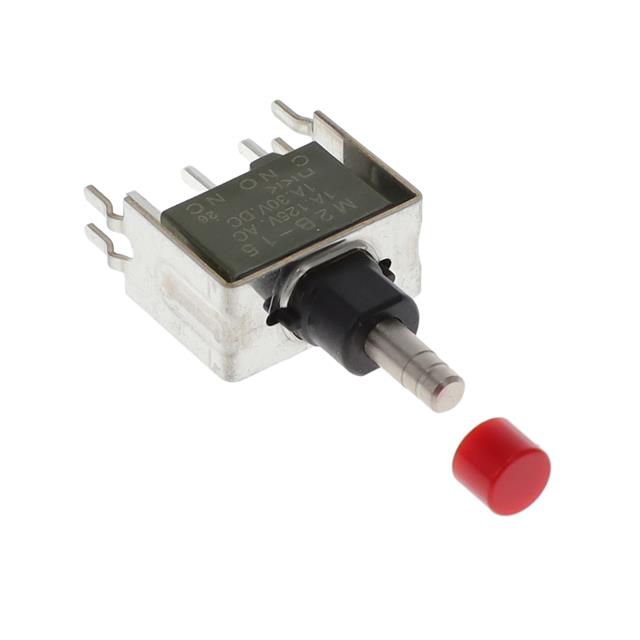

NKK Switches M2B15AA5W13-FC	25000 Steps	200000 Cycles	PC Pin	SPDT	Through Hole	30 V	Process Sealed	125 V	No Marking	Red	85 °C	-30 ░C	Standard	On-Mom	Button Round	1 A
