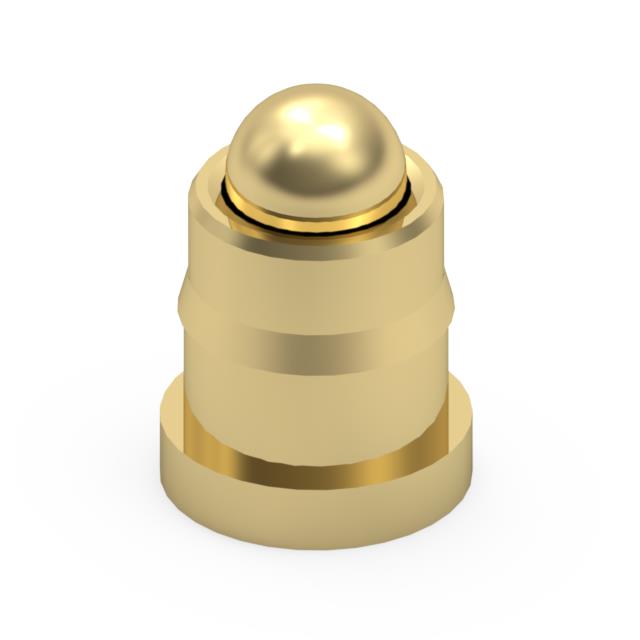

0965-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height | Minimum Working Height | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] | Pad Layout Dimension | Pad Layout Dimension | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mating Cycles | Contact Material | Recommended Working Height | Recommended Working Height | Contact Finish | Mounting Type | Operating Force - Mid Compression | Current Rating (Amps) | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.93 mm | 0.076 in | 0.042 in | 1.07 mm | 2.54 mm | 0.1 " | 0.072 in | 1.83 mm | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 1000000 | Brass Alloy | 0.088 in | 2.24 mm | Gold | Surface Mount | 115 gf | 5.2 A | 30 gf |
