OSTTE02 Series

Catalog

TERM BLK 2POS SIDE ENTRY 7MM PCB

Part	Mating Orientation	Positions Per Level	Torque - Screw	Torque - Screw	Clamp Material - Plating	Current	Mounting Type	Voltage	Wire Termination	Housing Material	Screw Thread	Features	Wire Gauge [Max]	Wire Gauge [Min]	Screw Material - Plating	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Pitch [x]	Pitch [x]	Color
On Shore Technology Inc. OSTTE021161	Horizontal with Board	2	0.15 Nm	1.3 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw	Polyamide (PA) Nylon	M2	Interlocking (Side)	26 AWG	16 AWG	Steel Galvanized - Chromate Plated	1	-33 °C	120 °C	Brass
On Shore Technology Inc. OSTTE020164	Horizontal with Board	2	0.2 Nm	1.7 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw - Leaf Spring Wire Guard	Thermoplastic	M2	Interlocking (Side)	26 AWG	16 AWG	Steel Zinc Plated	1	-40 °C	115 °C		Tin Plated	3.5 mm	0.138 in	Blue
On Shore Technology Inc. OSTTE021104	Horizontal with Board	2	0.2 Nm	1.7 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw - Leaf Spring Wire Guard		M2	Interlocking (Side)	26 AWG	16 AWG	Steel Zinc Plated	1	-40 °C	115 °C		Brass - Tin Plated

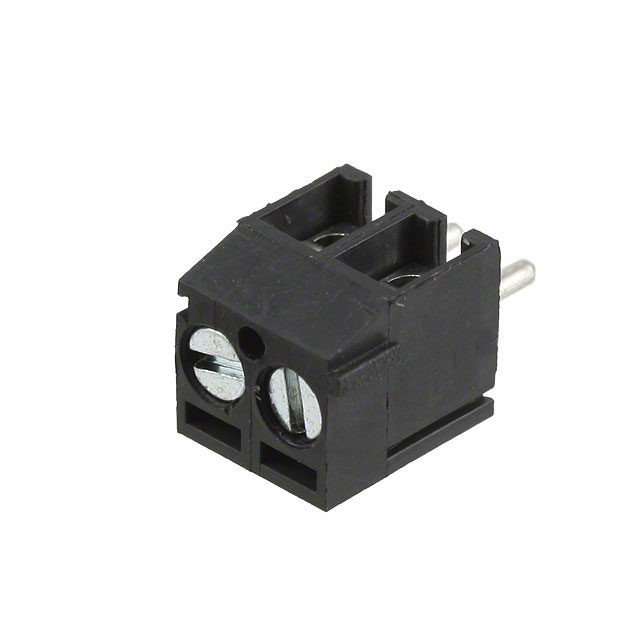

On Shore Technology Inc. OSTTE020104	Horizontal with Board	2	0.2 Nm	1.7 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw - Leaf Spring Wire Guard	Thermoplastic	M2	Interlocking (Side)	26 AWG	16 AWG	Steel Zinc Plated	1	-40 °C	115 °C		Tin Plated	3.5 mm	0.138 in	Black
On Shore Technology Inc. OSTTE020161	Horizontal with Board	2	0.2 Nm	1.7 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw - Leaf Spring Wire Guard	Thermoplastic	M2	Interlocking (Side)	26 AWG	16 AWG	Steel Zinc Plated	1	-30 ░C	105 ░C		Brass - Tin Plated	3.5 mm	0.138 in	Blue
