VAOL-S2223 Series

Catalog

LED RGB CLEAR 4SMD

Part	Viewing Angle	Current - Test	Lens Color	Lens Transparency	Mounting Type	Lens Size [x]	Lens Size [y]	Wavelength - Peak	Lens Style	Package / Case	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Wavelength - Dominant	Supplier Device Package	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Size / Dimension [y]	Size / Dimension [x]	Configuration

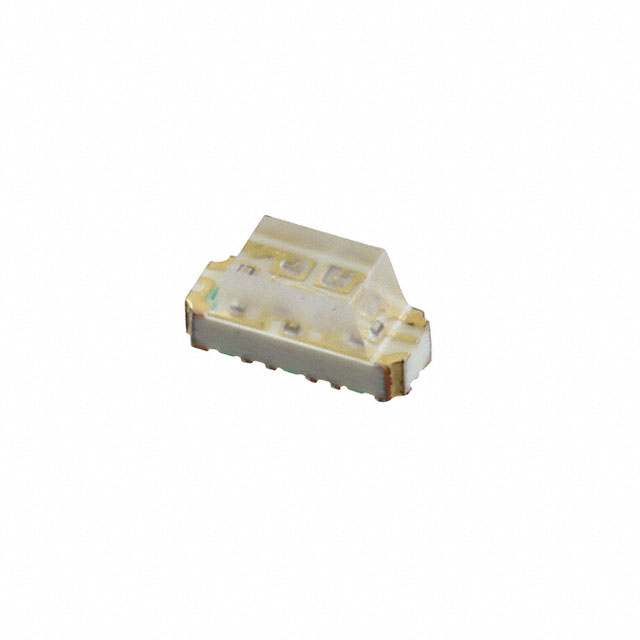

Visual Communications Company - VCC VAOL-S2223RGB	120 °	20mA Blue 20mA Green 20mA Red	Colorless	Clear	Surface Mount	1.5 mm	1 mm	468 nm 518 nm 632 nm	Rectangle with Flat Top	4-SMD No Lead	2 V 3.3 V 3.3 V	1.35 mm	470 nm 525 nm 623 nm	4-SMD	Blue Green Red	72 mcd	180 mcd	45 mcd	1 mm	2.7 mm	Common Anode
