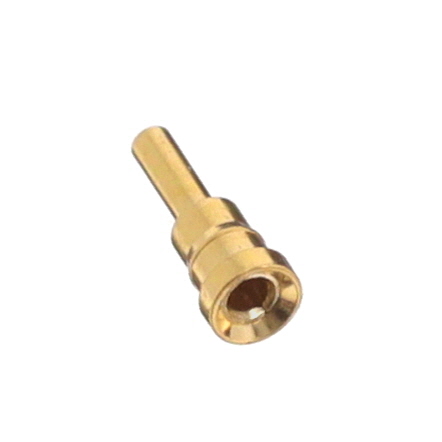

1534-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter	Mounting Hole Diameter	Contact Material	Termination	Socket Depth [z]	Socket Depth	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Length - Overall	Length - Overall	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type
Mill-Max Manufacturing Corp. 1534-0-15-15-12-27-04-0	-55 C	125 °C	1.42 mm	0.056 "	Beryllium Copper	Press-Fit	0.071 in	1.8 mm	0.03 in	0.76 mm	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	0.19 in	4.83 mm	0.072 "	1.83 mm	30 Áin	0.76 Ám	Standard Tail
Mill-Max Manufacturing Corp. 1534-0-15-80-12-84-04-0	-55 C	125 °C	1.42 mm	0.056 "	Beryllium Copper	Press-Fit	0.071 in	1.8 mm	0.03 in	0.76 mm	Tin	0.38 mm	0.022 in	0.015 "	0.56 mm	0.19 in	4.83 mm	0.072 "	1.83 mm	100 µin	2.54 µm	Standard Tail
Mill-Max Manufacturing Corp. 1534-0-15-80-12-09-04-0	-55 C	125 °C	1.42 mm	0.056 "	Beryllium Copper	Press-Fit	0.071 in	1.8 mm	0.03 in	0.76 mm		0.38 mm	0.022 in	0.015 "	0.56 mm	0.19 in	4.83 mm	0.072 "	1.83 mm			Standard Tail
Mill-Max Manufacturing Corp. 1534-0-15-80-12-14-04-0	-55 C	125 °C	1.42 mm	0.056 "	Beryllium Copper	Press-Fit	0.071 in	1.8 mm	0.03 in	0.76 mm	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	0.19 in	4.83 mm	0.072 "	1.83 mm	10 Áin	0.25 Ám	Standard Tail
Mill-Max Manufacturing Corp. 1534-0-15-01-12-14-04-0	-55 C	125 °C	1.42 mm	0.056 "	Beryllium Copper	Press-Fit	0.071 in	1.8 mm	0.03 in	0.76 mm	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	0.19 in	4.83 mm	0.072 "	1.83 mm	10 Áin	0.25 Ám	Standard Tail
