R12775 Series

Catalog

COAX ADAPT SMA TO SMA

Part	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Dielectric Material	Center Contact Material	Body Material	Convert From (Adapter End)	Impedance	Frequency - Max [Max]	Mounting Feature	Center Gender	Conversion Type	Adapter Type	Convert To (Adapter End)	Adapter Series	Center Contact Plating	Style	Mounting Type	Adapter Series [Min]	Adapter Series [Max]	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)

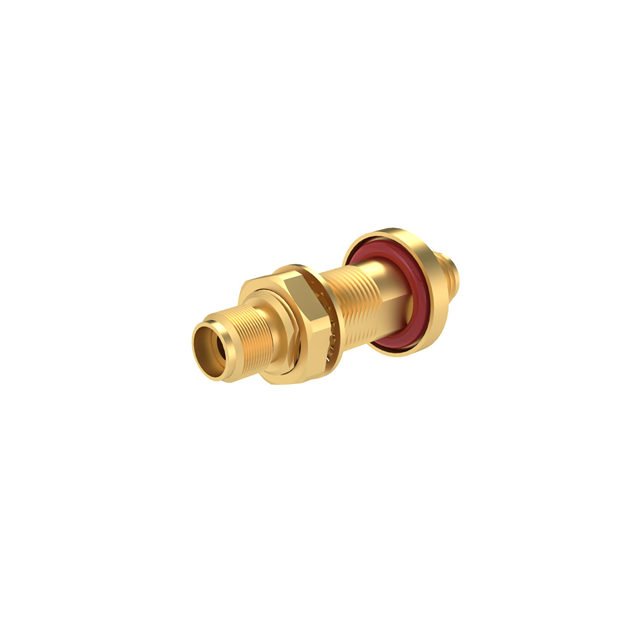

Radiall USA, Inc. R127753120	500	-65 ░C	165 °C	Gold	Polyamide (PA) Nylon	Beryllium Copper	Stainless Steel	Female Socket SMA Jack	50 Ohms	46 GHz	Bulkhead	Female to Female	Same Series	Jack to Jack	SMA Jack Female Socket	SMA to SMA	Gold	Straight	Panel Mount

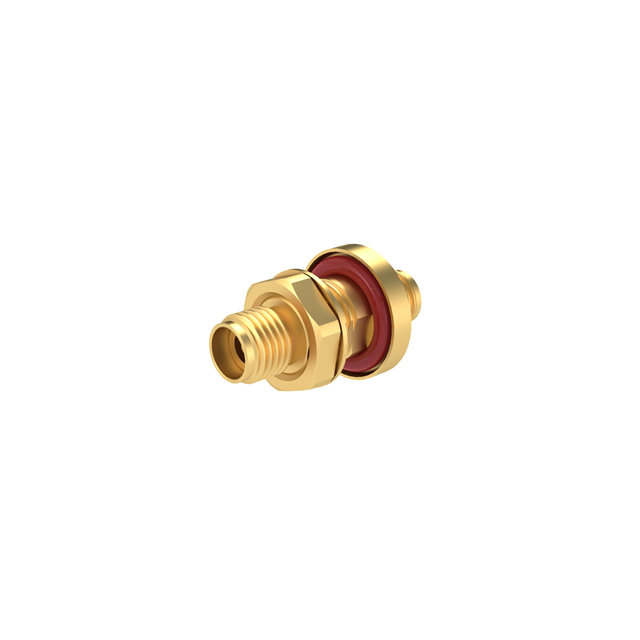

Radiall USA, Inc. R127753000	500	-65 ░C	165 °C	Gold		Beryllium Copper	Stainless Steel	Jack Female Socket	50 Ohms	46 GHz	Bulkhead	Female to Female	Same Series	Jack to Jack	Jack Female Socket		Gold	Straight	Panel Mount	2.92 mm	2.92 mm	OS-2.9	2.92 mm	2.92 mm
