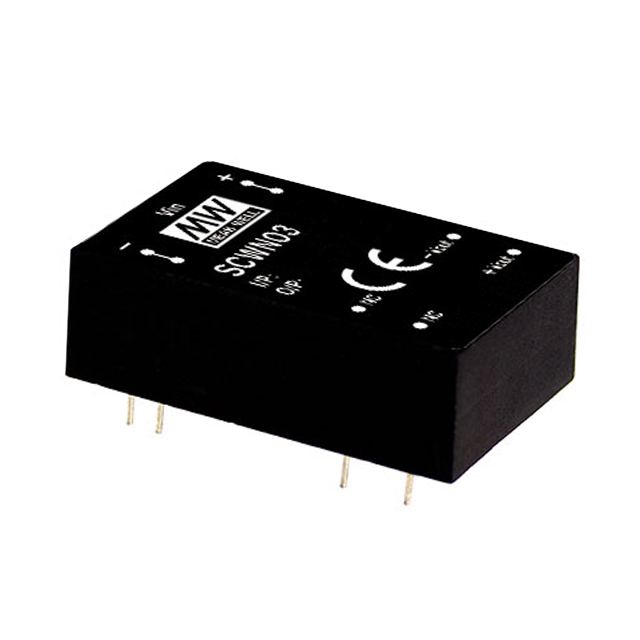

SCWN03 Series

Catalog

DC DC CONVERTER 15V 3W

Part	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Power (Watts)	Applications	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Package / Case	Features
MEAN WELL USA Inc. SCWN03E-15	4.5 V	90 °C	-40 °C	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	81 %	3 W	ITE (Commercial)	15 V	3000 V	9 V	Isolated Module	200 mA	24-DIP Module 8 Leads	OCP SCP UVLO
MEAN WELL USA Inc. SCWN03A-12	9 V	90 °C	-40 °C	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	84 %	3 W	ITE (Commercial)	12 V	3000 V	18 V	Isolated Module	250 mA	24-DIP Module 8 Leads	OCP SCP UVLO
MEAN WELL USA Inc. SCWN03B-15	18 V	90 °C	-40 °C	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	86 %	3 W	ITE (Commercial)	15 V	3000 V	36 V	Isolated Module	200 mA	24-DIP Module 8 Leads	OCP SCP UVLO
MEAN WELL USA Inc. SCWN03A-15	9 V	90 °C	-40 °C	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	85 %	3 W	ITE (Commercial)	15 V	3000 V	18 V	Isolated Module	200 mA	24-DIP Module 8 Leads	OCP SCP UVLO
MEAN WELL USA Inc. SCWN03A-05	9 V	90 °C	-40 °C	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		3 W	ITE (Commercial)	5 V	3000 V	18 V	Isolated Module	600 mA	24-DIP Module 8 Leads	OCP SCP UVLO
MEAN WELL USA Inc. SCWN03E-05	4.5 V	90 °C	-40 °C	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	78 %	3 W	ITE (Commercial)	5 V	3000 V	9 V	Isolated Module	600 mA	24-DIP Module 8 Leads	OCP SCP UVLO
