SMA-J Series
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
Manufacturer: Samtec Inc.
Catalog
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
Beta
⌘K
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
| Part | Voltage Rating | Body Finish | Center Contact Material | Center Contact Plating | Connector Type | Connector Style | Impedance | Body Material | Contact Termination | Mounting Feature | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Frequency - Max [Max] | Number of Ports | Shield Termination | Features | Includes | Cable Group | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Flange | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | Flange | |||
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Bulkhead | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | 1 Connector 1 Ferrule 1 Lockwasher 1 Nut | |||
Samtec Inc. | 335 V | Gold | Brass | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Bulkhead | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | 1 Connector 1 Ferrule 1 Lockwasher 1 Nut | 316 RG-174 | ||

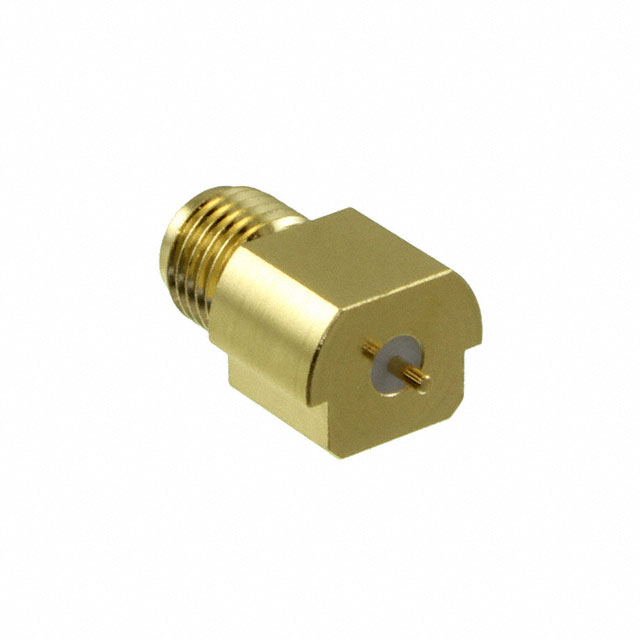

 Samtec Inc. | 335 V | Gold | Beryllium Copper | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Solder | Board Edge End Launch | ||||

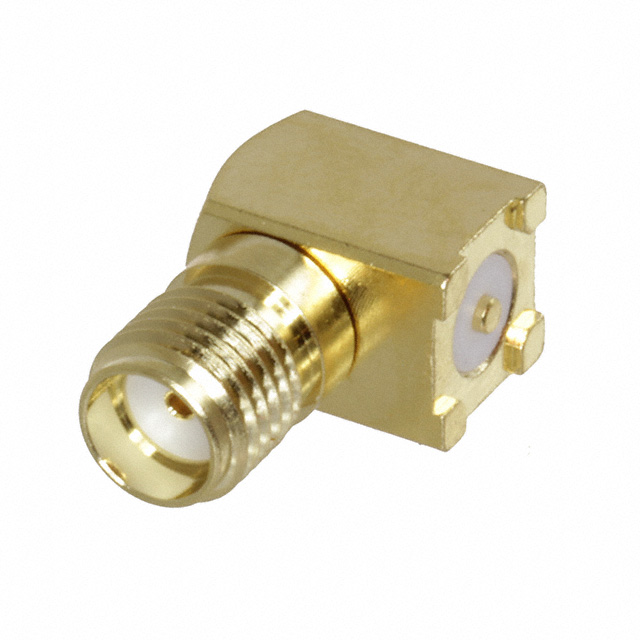

 Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Solder | Surface Mount Right Angle | ||||
 Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Solder | Surface Mount Through Hole | ||||
Samtec Inc. | 335 V | Gold | Beryllium Copper | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Flange | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | Flange | 316 RG-174 | ||
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Bulkhead | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | 1 Connector 1 Ferrule 1 Lockwasher 1 Nut | 316 RG-174 | ||
 Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Solder | Board Edge Cutout Surface Mount |
