MAXREFDES112 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

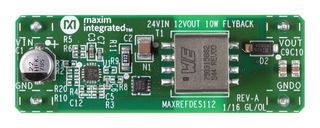

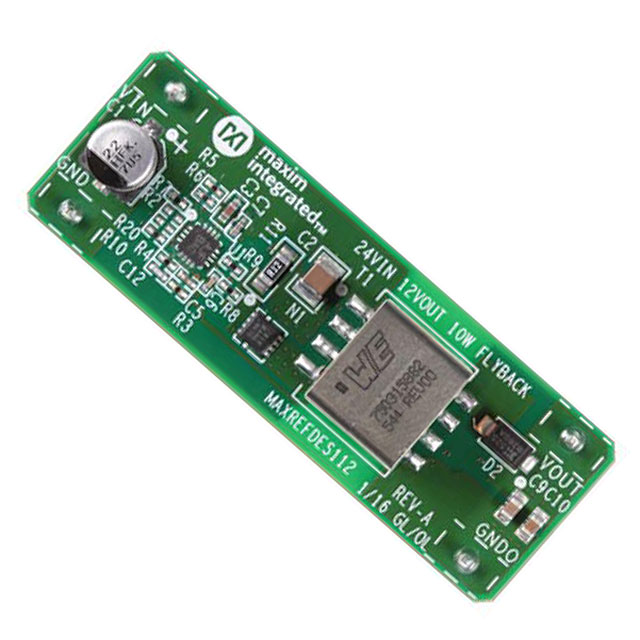

EVAL BOARD FOR MAX17596
| Part | Supplied Contents | Power - Output | Outputs and Type | Outputs and Type | Board Type | Regulator Topology | Current - Output | Frequency - Switching | Utilized IC / Part | Contents | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Board(s) | 10 W | 1 Isolated Output Isolated | 1 | Fully Populated | Flyback | 800 mA | 500 kHz | MAX17596 | Board(s) | DC/DC Converter | 17 V | 36 V | 12 V |
Analog Devices Inc./Maxim Integrated | Board(s) | 10 W | 1 Isolated Output Isolated | 1 | Fully Populated | Flyback | 800 mA | 500 kHz | MAX17596 | Board(s) | DC/DC Converter | 17 V | 36 V | 12 V |
 Analog Devices Inc./Maxim Integrated | Board(s) | 10 W | 1 Isolated Output Isolated | 1 | Fully Populated | Flyback | 800 mA | 500 kHz | MAX17596 | Board(s) | DC/DC Converter | 17 V | 36 V | 12 V |
Analog Devices Inc./Maxim Integrated | Board(s) | 10 W | 1 Isolated Output Isolated | 1 | Fully Populated | Flyback | 800 mA | 500 kHz | MAX17596 | Board(s) | DC/DC Converter | 17 V | 36 V | 12 V |
