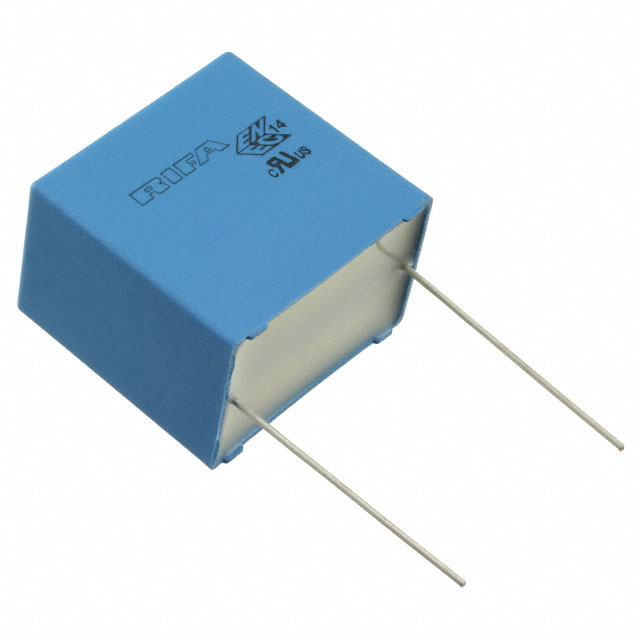

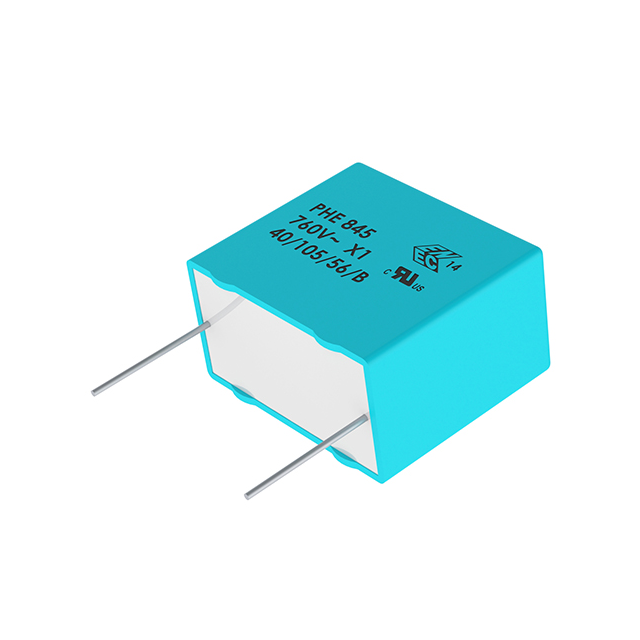

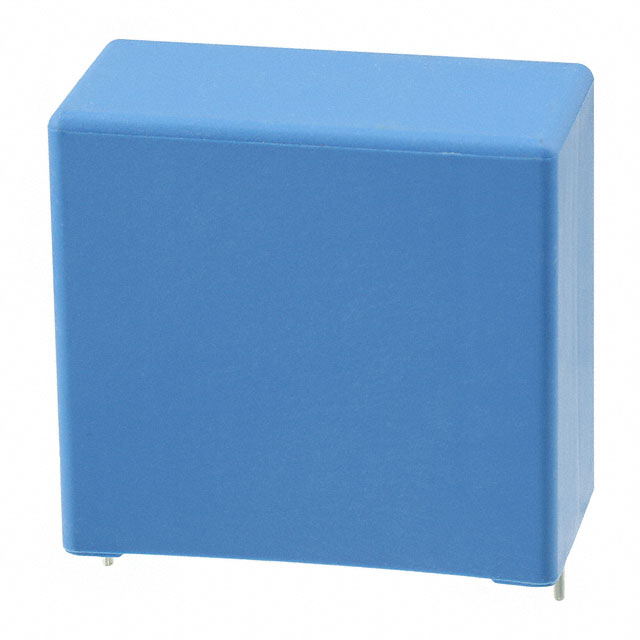

PHE845 Series

Manufacturer: KEMET

Catalog

CAP FILM SUPPRESSION X1 1UF 1500VDC/760VAC PP 20%( 41 X 21 X 38MM) RADIAL 37.5MM 105°C TRAY

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Capacitance	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Voltage Rating - AC	Dielectric Material	Termination	Tolerance	Package / Case	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PHE845VW7100MR06L2	1.614 in	0.827 in	21 mm	41 mm	1.496 in	38 mm	Through Hole	1 µF	1.5 kV	1.5 kV	-40 C	105 ░C	X1	760 V	Polypropylene (PP) Metallized	PC Pins	20 %	Radial	EMI RFI Suppression	37.5 mm	1.476 in
KEMET PHE845VY6220MR06L2			0.61 "	1.024 in	0.965 in		Through Hole	0.22 µF	1.5 kV	1.5 kV	-40 C	105 ░C	X1	760 V	Polypropylene (PP) Metallized	PC Pins	20 %	Radial	EMI RFI Suppression	22.5 mm	0.886 in	24.5 mm	26 mm	15.5 mm
KEMET PHE845VY6220MR30L2			0.61 "	1.024 in	0.965 in		Through Hole	0.22 µF	1.5 kV	1.5 kV	-40 C	105 ░C	X1	760 V	Polypropylene (PP) Metallized	PC Pins	20 %	Radial	EMI RFI Suppression	22.5 mm	0.886 in	24.5 mm	26 mm	15.5 mm
KEMET PHE845VZ6470MR30L2	1.24 in	0.827 in	21 mm	31.5 mm			Through Hole	0.47 µF	1.5 kV	1.5 kV	-40 C	105 ░C	X1	760 V	Polypropylene (PP) Metallized	PC Pins	20 %	Radial	EMI RFI Suppression	27.5 mm	1.083 in				30 mm	1.181 "
KEMET PHE845VF6220MR06L2	1.24 in	0.531 in	13.5 mm	31.5 mm			Through Hole	0.22 µF	1.5 kV	1.5 kV	-40 C	105 ░C	X1	760 V	Polypropylene (PP) Metallized	PC Pins	20 %	Radial	EMI RFI Suppression	27.5 mm	1.083 in				23 mm	0.906 in
KEMET PHE845VW7100MR30L2	1.614 in	0.827 in	21 mm	41 mm	1.496 in	38 mm	Through Hole	1 µF	1.5 kV	1.5 kV	-40 C	105 ░C	X1	760 V	Polypropylene (PP) Metallized	PC Pins	20 %	Radial	EMI RFI Suppression	37.5 mm	1.476 in
KEMET PHE845VD6100MR30L2	1.024 in	0.433 in	11 mm	26 mm	0.846 "		Through Hole	100000 pF	1.5 kV	1.5 kV	-40 C	105 ░C	X1	760 V	Polypropylene (PP) Metallized	PC Pins	20 %	Radial	EMI RFI Suppression	22.5 mm	0.886 in	21.5 mm
KEMET PHE845VD5470MR30L2	1.024 in	0.354 in	9 mm	26 mm			Through Hole		1.5 kV	1.5 kV	-40 C	105 ░C	X1	760 V	Polypropylene (PP) Metallized	PC Pins	20 %	Radial	EMI RFI Suppression	22.5 mm	0.886 in
